Page 1: Packard Bell

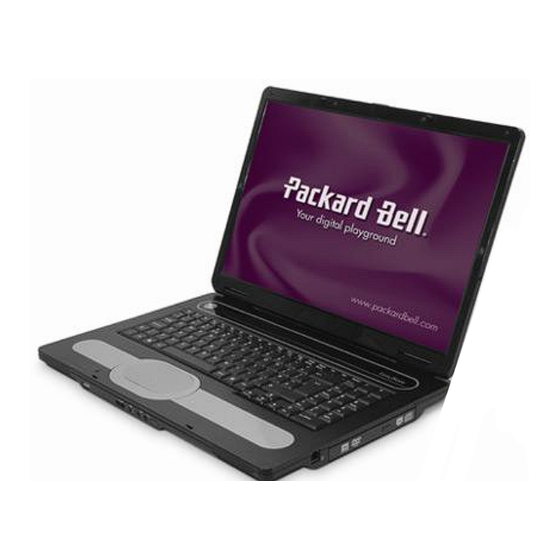

Packard Bell EasyNote SW / W Series (Dragon, assorted platforms) Disassembly Manual Disclaimer: Note that this is a generic disassembly manual for the EasyNote SW & W series notebooks (assorted Dragon platforms). Actual notebooks might vary. -
Page 2: Table Of Contents
Table of Contents Overview ..........................1 Disassembly Instructions....................1 Reassembly Instructions....................1 Required Tools ........................1 Hazardous Voltage......................2 Avoid Electrostatic Discharge ..................2 Power Supply Unit......................2 Battery and AC Adapter....................4 Removing the Hard Disk Drive..................4 Optical Disk Drive......................5 Removing the Main Hatch .................... -
Page 3: Overview
SW51/SW61 (Dragon D/DN) chassis. The instructions are illustrated where necessary with images of the part that is being removed or disassembled. Packard Bell reserves the right to make changes to the chassis without notice. Disassembly Instructions When disassembling the system unit, follow these general rules: Turn off the power. -
Page 4: Hazardous Voltage
Hazardous Voltage Power Supply Unit There is hazardous voltage present inside the Under no circumstances should you computer when it is connected to an AC attempt to disassemble the power supply, even when the computer’ s power supply. The power supply contains switch is off. - Page 5 WAARSCHUWING AVVERTENZA Zorg er voor dat alle verbindingen van en Prima di rimuovere il coperchio del naar de computer (stroom, modem, netwerk, telaio, assicurarsi che il sistema sia etc) verbroken worden voordat de behuizing scollegato dall’ alimentazione, da tutti geopend wordt. Zet de computer nooit aan i collegamenti di comunicazione, reti als de behuizing geopend is.
-
Page 6: Battery And Ac Adapter
Battery and AC Adapter To remove the battery, do as follows: 1. Turn off the computer. 2. Disconnect the AC adapter. 3. Remove the battery. Fig. 1 The bottom base. Hard Disk Drive (& Bluetooth – optional) To remove the hard disk drive, perform the following steps: 1. -
Page 7: Optical Disk Drive
Optical Disk Drive To remove the optical disk drive, follow the steps below: 1. Remove the screws (2xC) and cover (as shown in Fig. 1). 2. Use small pin to eject ODD drawer and pull out optical disk drive. Removing the Main Hatch To remove the memory module(s) follow these steps: 1. -
Page 8: Memory
Memory To remove the memory, perform the following steps: 1. Remove the main hatch, as described above. 2. Remove the memory modules (marked by the red square). Fig. 4 Removing the memory module(s), mini-PCI and heatsink. Mini-PCI To remove the mini-PCI card: 1. -
Page 9: Removing The Cpu
Removing the CPU Perform the following steps to remove the CPU: 1. Remove the main hatch and then the heatsink, as described above. 2. Unlock the CPU. Fig. 5 Unlocking the CPU. Top Cover Remove the top cover by following the steps below: 1. -
Page 10: Removing The Lcd Panel Assembly
Fig. 7 Removing the keyboard screws. 4. Flip keyboards towards you. 5. Disconnect the keyboard flat cable. Fig. 8 Removing the keyboard flat cable. 6. Disconnect the touchpad flat cable. Fig. 9 Disconnecting touchpad flat cable Removing the LCD Panel Assembly Follow the steps below to remove the LCD panel: 1. -
Page 11: Removing Speakers
Removing Speakers Remove the speakers as follows: 1. Remove the two screws from the left speaker. 2. Remove the two screws from the right speaker. 3. Disconnect the speaker cables. 4. Remove the two speakers. Fig. 11 The speakers. LCD Lid Switch Remove the lid switch as follows: 7. -
Page 12: Disassembling The Lcd Panel Assembly
Disassembling the LCD Panel Assembly To disassemble the LCD panel, follow the steps below: 1. Remove the screw covers and screws (2xG). 2. Remove the screw covers and screws (4xH). 3. Unclip the front bezel by pushing it outwards from the inside 4. - Page 13 Fig. 15 LCD inverter backlight connecter. 11. Remove the lower supporting bracket. 12. Take away the LCD display panel and inverter board. 13. Disconnect the LCD cable from the inverter board. 14. Disconnect the LCD cable from the back of the LCD display panel. Fig.
-
Page 14: Bottom Base Assembly
Fig. 18 Wireless antenna. Bottom Base Assembly Disassemble the bottom base assembly as follows: 1. Remove ten screws (4xA, 6xB) from the top cover. Fig. 19 The top cover. Note: Make sure that during re-assembly the clips of the top cover lock into place before fastening the screws. 2. -
Page 15: Usb/Power Board
Fig. 20 The bottom base assembly. 3. Remove top cover from bottom base assembly. Subwoofer (optional) Remove the subwoofer (optional): 1. Remove the two screws. 2. Disconnect the subwoofer cable from the mainboard. 3. Take away the board. Fig. 21 The subwoofer... - Page 16 USB/Power Board Remove the USB/power board as follows: 1. Disconnect cables from the mainboard. 2. Remove the two screws. 3. Take away the board. Fig. 22 The top cover. Bluetooth cable (optional) Remove the Bluetooth cable (optional), after you have removed the Bluetooth module (optional), as follows: 1.
-
Page 17: Main Board Assembly
Main Board Assembly To remove the main board from the bottom base assembly, follow the steps below: 1. Remove the five screws from the main board. 2. Take away the main board. Fig. 24 The main board. Video Out To disconnect the video out board and cable: 1. -
Page 18: Notice
Packard Bell B.V.. PACKARD BELL B.V. SHALL NOT BE LIABLE FOR TECHNICAL OR EDITORIAL ERRORS OR OMISSIONS CONTAINED HEREIN; NOR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL.
