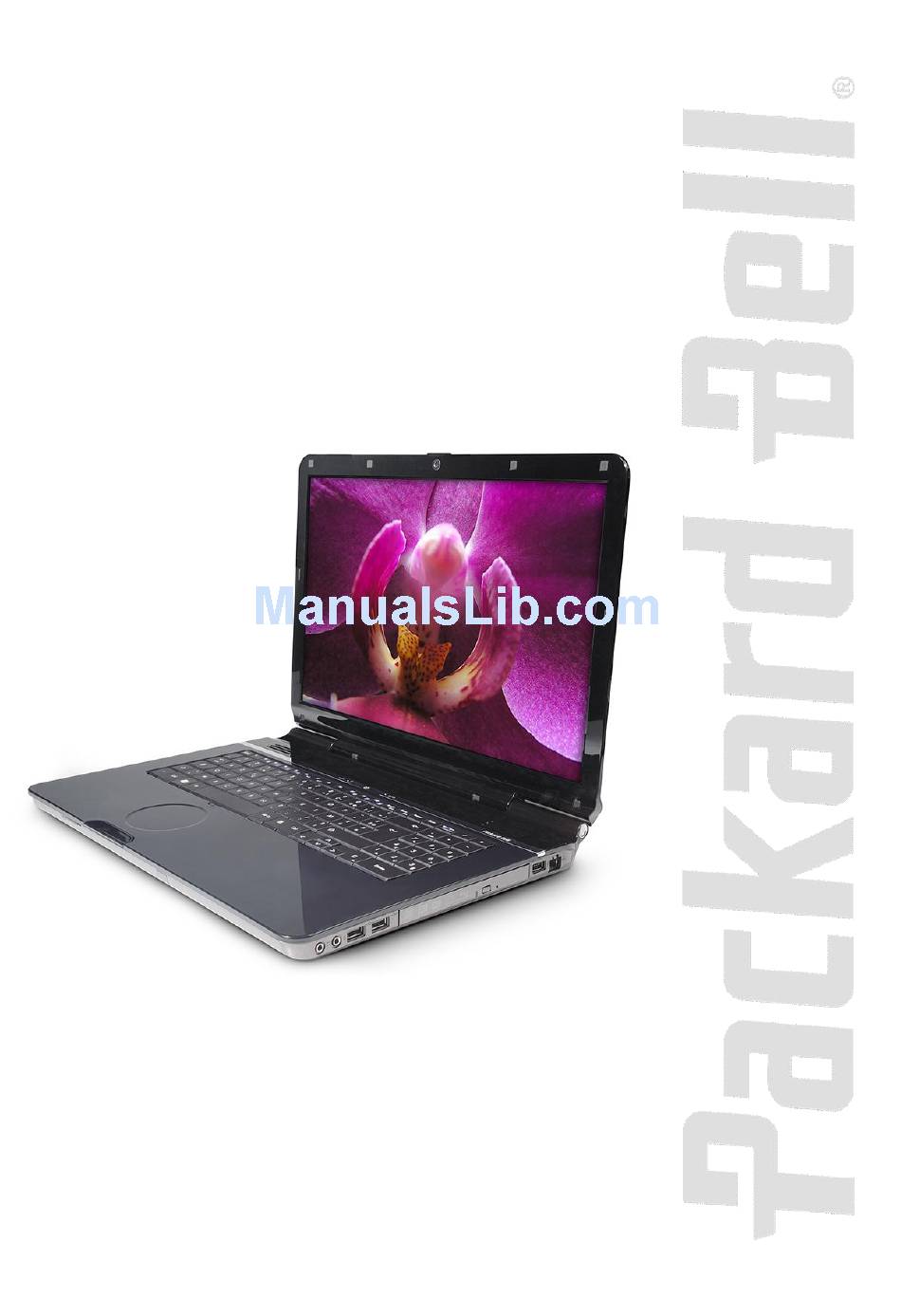

- Page 1 Packard Bell EasyNote ST Disassembly Manual...
-
Page 2: Table Of Contents
Subwoofer ........................... 22 DC Jack ..........................23 TV Antenna (Optional) ......................24 Touchpad ..........................25 Button Board........................26 LCD Bezel ........................... 26 Inverter Board........................26 LCD Panel........................... 27 Webcam/Microphone ......................28 Notice ..........................29 Packard Bell EasyNote ST Disassembly Manual... -
Page 3: About This Guide
Packard Bell B.V. reserves the right to make changes to the EasyNote ST without notice. For More Information For more information about the Packard Bell EasyNote ST, visit Packard Bell‘s support web site at www.packardbell.com. The support web site also has links to additional Packard Bell documentation and detailed product specifications. -
Page 4: Hazardous Voltage
Always return a Non avviare il sistema senza aver prima defective power supply to the dealer. messo a posto il coperchio. Packard Bell EasyNote ST Disassembly Manual... -
Page 5: Battery
To remove the left hard disk drive, first remove the battery (see Battery on page 4) and then perform the following steps: 1. Remove the four screws securing the hard disk drives compartment cover. Fig. 2 Removing hard disk drive compartment cover. Packard Bell EasyNote ST Disassembly Manual... -
Page 6: Memory
Lift the cover upwards from the left. There are two tabs holding the cover in place on the right. Raise the cover until you can remove it from the casing (see Fig. 4 on page 5). Packard Bell EasyNote ST Disassembly Manual... -
Page 7: Wireless Lan Adapter
Raise the cover until you can remove it from the casing (see Fig. 4 on page 5). 3. Carefully disconnect the two WiFi antenna cables. Fig. 6 Location of WiFi antenna cable connectors and screws. Packard Bell EasyNote ST Disassembly Manual... -
Page 8: Tv Tuner (Optional)
7); the card will eject upwards. 5. Take out the TV tuner card from the socket. Note: The EasyNote ST has either a TV tuner card installed or the Intel Turbo memory, not both. Packard Bell EasyNote ST Disassembly Manual... -
Page 9: Intel Turbo Memory (Optional)
4. Take out the Intel Turbo Memory module from the socket. Note: The EasyNote ST has either a TV tuner card installed or the Intel Turbo memory, not both. Optical Disk Drive To remove the optical disk drive, first remove the battery (see... -
Page 10: Keyboard
To remove the keyboard, first remove the battery (see Battery on page 4) and then perform the following steps: 1. Turn the notebook over so the top is facing up and open the LCD completely. Packard Bell EasyNote ST Disassembly Manual... -
Page 11: Keyboard Cover
Fig. 13 Releasing keyboard flat cable. Keyboard Cover To remove the keyboard cover, first remove the battery (see Battery on page 4) and then perform the following steps: Packard Bell EasyNote ST Disassembly Manual... -
Page 12: Top Cover
10), and then perform the following steps: 1. Remove the screw in the left hard disk drive bay. Fig. 15 Location of touchpad connector. 2. Remove the 9 screws from the bottom base. Fig. 16 Location bottom base screws. Packard Bell EasyNote ST Disassembly Manual... - Page 13 4. Remove the two screws securing the top cover underneath the keyboard cover. Fig. 18 Location screws underneath keyboard cover. 5. Release the white clip securing the touchpad flat cable and disconnect the cable. Fig. 19 Disconnecting touchpad flat cable. Packard Bell EasyNote ST Disassembly Manual...
-
Page 14: Lcd Assembly
1. Disconnect the three LCD cables from the headers on the main board. Fig. 21 Location LCD cables. 2. Clear the WiFi antenna cable. 3. Open the LCD into an angle of approximately 90 degree. Packard Bell EasyNote ST Disassembly Manual... -
Page 15: Speakers
1. Remove the screws securing the speakers to the casing. Fig. 23 Location speaker screws. 2. Clear the speaker cables: detach any adhesive tape securing the speaker cables to the main board. Packard Bell EasyNote ST Disassembly Manual... -
Page 16: Main Board
13), and then perform the following steps: 1. Remove the screw securing the bracket that holds the left speaker and take out the bracket. Fig. 25 Location of left speaker bracket screw. Packard Bell EasyNote ST Disassembly Manual... - Page 17 3. Remove the two screws securing the cooler (see Fig. 26 on page 16). 4. Remove the DC jack cable from the header on the main board. Fig. 27 Location of main board screws and DC jack header. Packard Bell EasyNote ST Disassembly Manual...
- Page 18 7. Remove the three screws securing the main board (see Fig. 27 on page 16). 8. Carefully slide the main board a bit to the right to free the DVI connector and tilt the main board from the left. Packard Bell EasyNote ST Disassembly Manual...
-
Page 19: Cpu And Heat Sink
Fig. 31 Location of CPU heat sink screws. 2. Now turn the screws completely loose, again in designated order, and remove them (see Fig. 31 on page 18). 3. Carefully remove the heat sink. Packard Bell EasyNote ST Disassembly Manual... -
Page 20: Cmos Battery
To remove the CMOS battery, first remove the main board (see Main Board on page 15), and then perform the following steps: 1. Release the CMOS battery and take it from the socket on the main board. Fig. 33 Removing CMOS battery. Packard Bell EasyNote ST Disassembly Manual... -
Page 21: Bluetooth (Optional)
Fig. 34 Releasing the USB/audio board. 3. Remove the USB/audio board. Ethernet/USB Board To remove the Ethernet/USB board, first remove the LCD assembly (see LCD Assembly on page 13), and then perform the following steps: Packard Bell EasyNote ST Disassembly Manual... - Page 22 1. Remove the screw securing the bracket that holds the right speaker and take out the bracket. Fig. 35 Location of right speaker bracket screw. 2. Remove the subwoofer cable from the Ethernet/USB board. Fig. 36 Location of screws securing Ethernet/USB board. Packard Bell EasyNote ST Disassembly Manual...
-
Page 23: Subwoofer
Otherwise, you may not be able to insert the optical disk drive entirely. Subwoofer To remove the subwoofer, first remove the Ethernet/USB board (see Ethernet/USB Board on page 20), and then do the following: Packard Bell EasyNote ST Disassembly Manual... -
Page 24: Dc Jack
To remove the DC jack, first remove the Ethernet/USB board (see Ethernet/USB Board on page 20), and then perform the following steps: 1. Disconnect the DC jack cable from the header on the main board (see Fig. 27 on page 16). Packard Bell EasyNote ST Disassembly Manual... -
Page 25: Tv Antenna (Optional)
To remove the optional TV antenna cable, first remove the Ethernet/USB board (see Ethernet/USB Board on page 20), and then perform the following steps: 1. Carefully disconnect the TV antenna cable (see Fig. 7 on page 7). Packard Bell EasyNote ST Disassembly Manual... -
Page 26: Touchpad
2. Remove the three screws securing the touchpad bracket to the top cover (see Fig. 41 page 25). 3. Remove the touchpad module. Note: The described procedure applies only to the touchpad buttons; the touchpad surface is part of the top cover. Packard Bell EasyNote ST Disassembly Manual... -
Page 27: Button Board
1. Disconnect the cable on both ends of the inverter board. Fig. 43 Location of inverter board. 2. Remove the screw securing the inverter board (see Fig. 43 on page 26). 3. Extract the inverter board. Packard Bell EasyNote ST Disassembly Manual... -
Page 28: Lcd Panel
Fig. 45 Location of bracket screws. 3. Remove the ten screws securing the side brackets (five screws on each side) and remove the brackets (see Fig. 45 on page 27). 4. Separate the LCD panel from the back cover. Packard Bell EasyNote ST Disassembly Manual... -
Page 29: Webcam/Microphone
1. Disconnect the cable from the header on the module. Fig. 47 Location of webcam connector. 2. Carefully remove any adhesive tape securing the module (see Fig. 47 on page 28). 3. Extract the webcam/microphone module. Packard Bell EasyNote ST Disassembly Manual... -
Page 30: Notice
The information in this guide is subject to change without notice. This guide contains information protected by copyright. No part of this guide may be photocopied or reproduced in any form or by any means without prior written consent from Packard Bell B.V. B.V.
