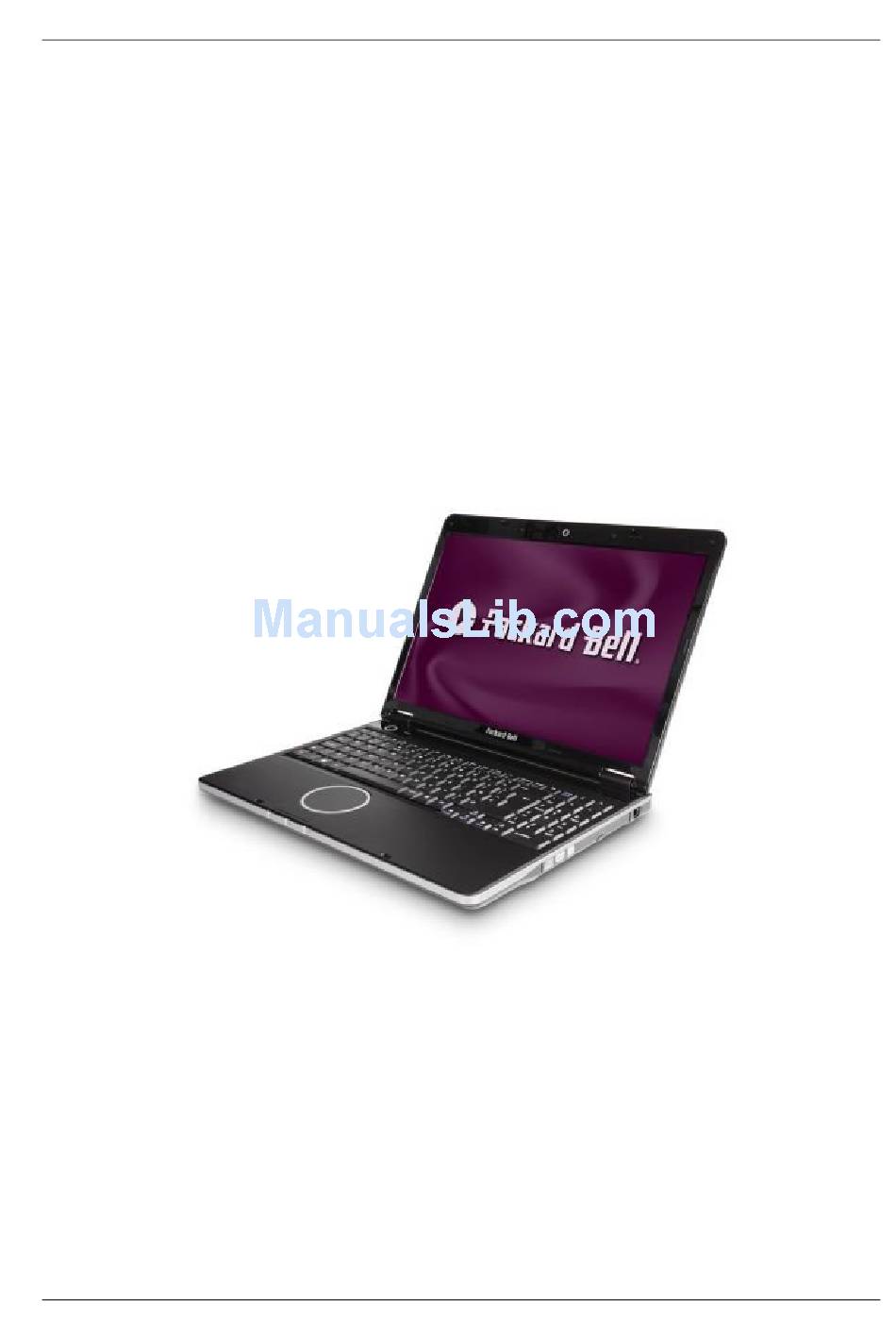

  • Page 1 Packard Bell EasyNote MH Series Disassembly Guide...

  • Page 2: Table Of Contents

    Table of Contents Overview ........................3 Technician Notes......................3 Disassembly Instructions..................3 Reassembly Instructions ..................3 Required Tools ......................3 Battery ........................4 Optical Drive......................4 Memory Modules ......................5 Keyboard ........................7 Bottom Cover ......................8 Hard Disk........................9 Wireless LAN......................10 RTC Battery......................13 Mainboard ......................13 Modem and RJ-11 Port (optional)................16 Speakers ........................16 Touchpad .......................17 LCD Assembly......................17...

  • Page 3: Overview

    This document contains step-by-step disassembly instructions for the EasyNote MH series. The instructions are illustrated where necessary with images of the part of the device that is being removed or disassembled. Packard Bell B.V. reserves the right to make changes to the EasyNote MH series without notice. Technician Notes Only technicians authorized by NEC Computers International BV should attempt to repair this equipment.

  • Page 4: Battery

    Battery Push aside the 2 latches securing the battery. Fig. 1 Removing the battery. Pull out the battery Optical Drive Remove the battery and keyboard as described above. Remove the 2 screws. Fig. 2 The optical drive cover. Pull the drive out. EasyNote MH Disassembly Manual...

  • Page 5: Memory Modules

    Remove the screws of the 2 drive brackets (one on the rear, one on the side). Fig. 3 The optical drive bracket. Remove the brackets from the optical drive. Open the drive tray and unlock the 2 latches of the drive bezel. Fig.
  • Page 6 Fig. 5 The memory modules cover. Push the clips aside to unlock the memory module. Remove the memory cover. The screw stays attached to the cover. Fig. 6 The memory modules Remove the memory module. Always remove the top one first. EasyNote MH Disassembly Manual...

  • Page 7: Keyboard

    Keyboard Remove the battery as described above. Push back the 4 clips that secure the keyboard with a flathead screwdriver. Fig. 7 The keyboard clips. Lift up the keyboard. Disconnect the flatcable by carefully lifting the black clamp. Fig. 8 The keyboard flatcable. Lift out the keyboard.

  • Page 8: Bottom Cover

    Bottom Cover Remove the battery, optical drive and keyboard as described above. Disconnect the power cable from the mainboard. Fig. 9 The mainboard power cable. Remove the 2 screws on the rear side of the notebook. Fig. 10 The rear screws of the bottom cover. Remove the 15 screws from the bottom base.

  • Page 9: Hard Disk

    Fig. 11 The bottom of the notebook. Take away the bottom cover. Hard Disk Remove the bottom cover as described above. Pull the hard disk to the left. Fig. 12 The HDD. Remove the 2 screws from the hard drive bracket. EasyNote MH Disassembly Manual...

  • Page 10: Wireless Lan

    Fig. 13 The HDD bracket. Wireless LAN Remove the bottom cover as described above. Disconnect the wireless LAN antenna. Remove the screw securing the wireless adapter. Take away the wireless LAN adapter. Fig. 14 The WLAN card. EasyNote MH Disassembly Manual...

  • Page 11: Cpu Fan

    CPU Fan Remove the bottom cover as described above. Disconnect the wireless LAN antenna as described above. Free the antenna from its clamps. Disconnect the power cable of the CPU fan. Remove the 2 screws of the CPU fan. Fig. 15 The CPU fan. Remove the CPU fan.
  • Page 12 Fig. 16 The CPU cooler. Take away the heatsink. Remove the CPU heatsink as described above. Turn the screw of the CPU socket 180 degrees. Take the CPU out of its socket. Fig. 17 The CPU cooler. EasyNote MH Disassembly Manual...

  • Page 13: Rtc Battery

    Note: The EasyNote MH35 has a socket P. This looks a lot like the older sockets for Intel Mobile CPUs, however, it is not pin-compatible. RTC Battery Remove the bottom cover as described above. Disconnect the RTC battery from the mainboard. Fig.
  • Page 14 Disconnect the standby switch. Fig. 20 The standby switch. Disconnect the touchpad flatcable, by gently lifting the black clip. Fig. 21 The touchpad flatcable. Disconnect the LCD cable and the LCD grounding cable. The LCD grounding cable is the one held by the screw. EasyNote MH Disassembly Manual...
  • Page 15 Fig. 22 The LCD cable and grounding cable. Remove the 2 hex bolts adjacent to the VGA connector. Remove the 2 screws from the mainboard. EasyNote MH Disassembly Manual...

  • Page 16: Modem And Rj-11 Port (Optional)

    Fig. 23 The mainboard assembly. Modem and RJ-11 Port (optional) 1. The modem is part of the mainboard and cannot be exchanged separately. 2. To exchange the cable and RJ-11 port, remove the mainboard as described above. You can leave the CPU (and its fan and cooler) and the Wireless LAN on the mainboard.

  • Page 17: Touchpad

    Remove the screws securing the speakers. Release the cable from its clamps. Fig. 25 The speaker cables. Note: The speakers share one cable. They cannot be exchanged separately. Touchpad The touchpad is part of the top cover and does not require further disassembly.
  • Page 18 Disconnect the LCD cable and the LCD grounding cable. The LCD grounding cable is the one held by the screw. Fig. 27 The LCD cable and grounding cable. Disconnect the wireless LAN antenna from the card. EasyNote MH Disassembly Manual...

  • Page 19: Lcd Panel

    Fig. 28 The Wireless LAN module. Take away the screen from the top cover. LCD Panel Remove the LCD assembly as described above. Remove the 6 rubber stoppers from the LCD bezel. Fig. 29 The LCD panel. EasyNote MH Disassembly Manual...
  • Page 20 Remove the 6 screws that were hidden by the rubber stoppers. Remove the LCD bezel. It is clicked in its place. Disconnect the cable from the web cam. Fig. 30 The web cam cable. Disconnect the inverterboard cables. Fig. 31 The inverter board cables. Take away the LCD panel.
  • Page 21 Fig. 32 The LCD hinge screws. Disconnect the LCD cable. Peel away the tape and pull the cable from the connector. Fig. 33 The LCD cable. EasyNote MH Disassembly Manual...

  • Page 22: Webcam

    Webcam Follow the instructions on removing the LCD Panel up to and including step 5. Remove the 2 screws. Fig. 34 webcam. Remove the webcam. Inverter Board Follow the instructions on removing the LCD Panel up to and including step 6, skipping step 5 (the webcam). Remove the inverter board.
  • Page 23 Fig. 36 The wireless antenna. EasyNote MH Disassembly Manual...

  • Page 24: Reassembly Notes

    HEREIN; NOR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL. Copyright © 2007 NEC Computers International BV All rights reserved. First Edition: December 2007 Version: 1.0 Packard Bell B.V. EasyNote MH Disassembly Manual...
