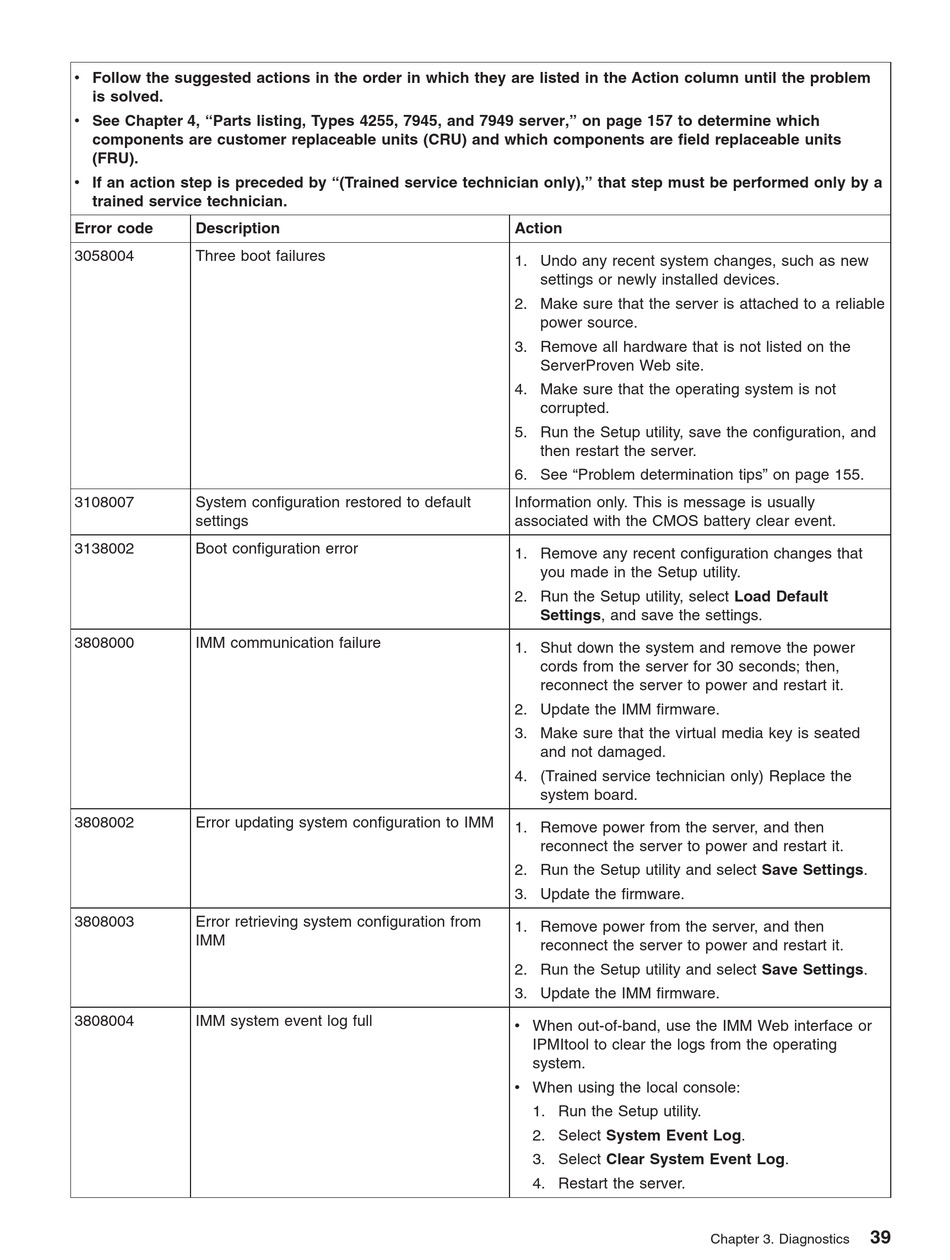

IBM System x3650 M3 4255 Service Manual page 57

v Follow the suggested actions in the order in which they are listed in the Action column until the problem
is solved.
v See Chapter 4, "Parts listing, Types 4255, 7945, and 7949 server," on page 157 to determine which
components are customer replaceable units (CRU) and which components are field replaceable units
(FRU).
v If an action step is preceded by "(Trained service technician only)," that step must be performed only by a
trained service technician.
Error code Description
3058004 Three boot failures
3108007 System configuration restored to default
settings
3138002 Boot configuration error
3808000 IMM communication failure
3808002 Error updating system configuration to IMM
3808003 Error retrieving system configuration from
IMM
3808004 IMM system event log full
Action
1. Undo any recent system changes, such as new
settings or newly installed devices.
2. Make sure that the server is attached to a reliable
power source.
3. Remove all hardware that is not listed on the
ServerProven Web site.
4. Make sure that the operating system is not
corrupted.
5. Run the Setup utility, save the configuration, and
then restart the server.
6. See "Problem determination tips" on page 155.
Information only. This is message is usually
associated with the CMOS battery clear event.
1. Remove any recent configuration changes that
you made in the Setup utility.
2. Run the Setup utility, select Load Default
Settings, and save the settings.
1. Shut down the system and remove the power
cords from the server for 30 seconds; then,
reconnect the server to power and restart it.
2. Update the IMM firmware.
3. Make sure that the virtual media key is seated
and not damaged.
4. (Trained service technician only) Replace the
system board.
1. Remove power from the server, and then
reconnect the server to power and restart it.
2. Run the Setup utility and select Save Settings.
3. Update the firmware.
1. Remove power from the server, and then
reconnect the server to power and restart it.
2. Run the Setup utility and select Save Settings.
3. Update the IMM firmware.
v When out-of-band, use the IMM Web interface or
IPMItool to clear the logs from the operating
system.
v When using the local console:
1. Run the Setup utility.
2. Select System Event Log.
3. Select Clear System Event Log.
4. Restart the server.
39
Chapter 3. Diagnostics
