10

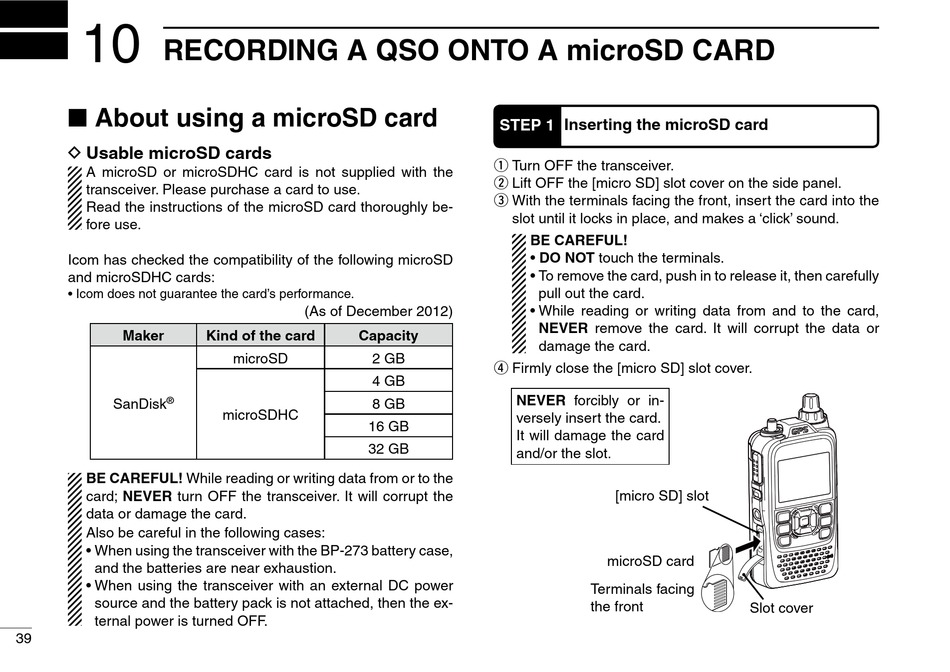

RECORDING A QSO ONTO A microSD CARD
About using a microSD card
■
D Usable microSD cards
A microSD or microSDHC card is not supplied with the
transceiver. Please purchase a card to use.
Read the instructions of the microSD card thoroughly be-
fore use.
Icom has checked the compatibility of the following microSD
and microSDHC cards:
• Icom does not guarantee the card's performance.
Maker
SanDisk ®
BE CAREFUL! While reading or writing data from or to the
card; NEvER turn OFF the transceiver. It will corrupt the
data or damage the card.
Also be careful in the following cases:
• When using the transceiver with the BP-273 battery case,
and the batteries are near exhaustion.
• When using the transceiver with an external DC power
source and the battery pack is not attached, then the ex-
ternal power is turned OFF.
39
(As of December 2012)
Kind of the card Capacity
microSD 2 GB
4 GB
8 GB
microSDHC
16 GB
32 GB
STEP 1 Inserting the microSD card
Turn OFF the transceiver.
q
Lift OFF the [micro SD] slot cover on the side panel.
w
With the terminals facing the front, insert the card into the
e
slot until it locks in place, and makes a 'click' sound.
BE CAREFUL!
• DO NOT touch the terminals.
• To remove the card, push in to release it, then carefully
pull out the card.
• While reading or writing data from and to the card,
NEvER remove the card. It will corrupt the data or
damage the card.
Firmly close the [micro SD] slot cover.
r
NEvER forcibly or in-
versely insert the card.
It will damage the card
and/or the slot.
[micro SD] slot
microSD card
Terminals facing
the front
Slot cover
