5
DV MODE OPERATION

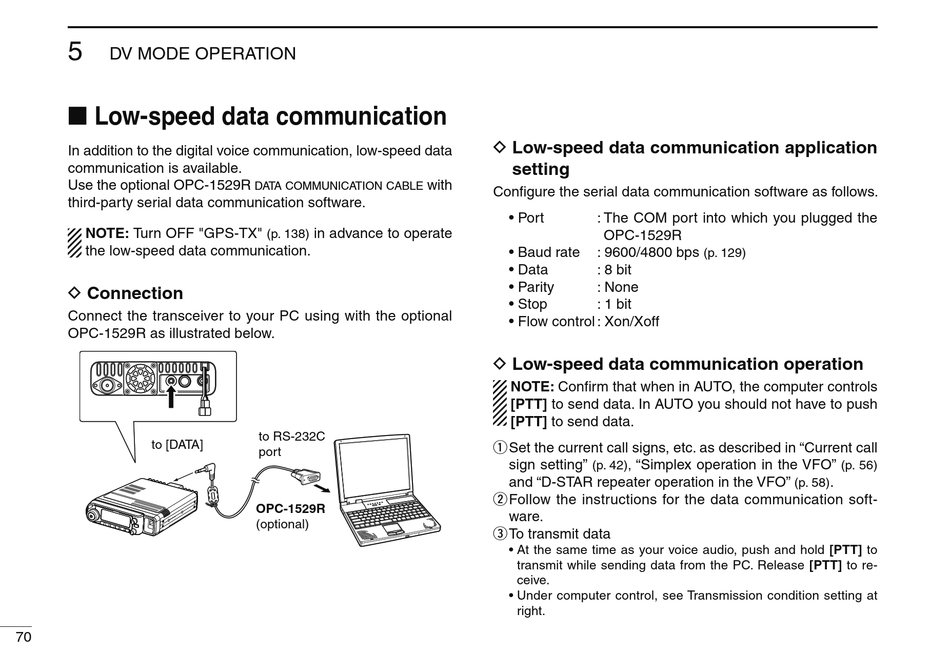

Low-speed data communication

In addition to the digital voice communication, low-speed data
communication is available.
Use the optional OPC-1529R
third-party serial data communication software.
NOTE: Turn OFF "GPS-TX"
the low-speed data communication.
D Connection
Connect the transceiver to your PC using with the optional
OPC-1529R as illustrated below.
to [DATA]
70
with
DATA COMMUNICATION CABLE
in advance to operate
(p. 138)
to RS-232C
port
OPC-1529R
(optional)
D Low-speed data communication application
setting
Configure the serial data communication software as follows.
• Port : The COM port into which you plugged the
OPC-1529R
• Baud rate : 9600/4800 bps
• Data : 8 bit
• Parity : None
• Stop : 1 bit
• Flow control : Xon/Xoff
D Low-speed data communication operation
NOTE: Confirm that when in AUTO, the computer controls
[PTT] to send data. In AUTO you should not have to push
[PTT] to send data.
q Set the current call signs, etc. as described in "Current call
sign setting" "Simplex operation in the VFO"
(p. 42),
and "D-STAR repeater operation in the VFO"
w Follow the instructions for the data communication soft-
ware.
e To transmit data
• At the same time as your voice audio, push and hold [PTT] to
transmit while sending data from the PC. Release [PTT] to re-
ceive.
• Under computer control, see Transmission condition setting at
right.
(p. 129)
(p. 56)
.
(p. 58)
