Setting Graph Preferences - Extreme Networks EPICenter Reference Manual

Real-Time Statistics
Display the data as a table.
●
Zoom in (magnify) or Zoom out (shrink) the display.
●
Display grid lines on the background of the chart.
●
Take a "snapshot" of the graph or table view of the current real-time statistics data.
●
Open the graph preferences pop-up window where you can change a variety of settings, such as
●
graph and data colors, the sampling interval, or the number of ports in a top N display.
See Table 24 for a more complete description of the display functions.

Setting Graph Preferences

To change the graph settings used in this applet, click the Prefs function button.
The Graph Preferences window is displayed, as shown in
Use the tabs across the top of the window to select the type of setting you want to change. Each tab
displays a page with a group of related settings. When you have changed any setting you want on a
given page:
Click Apply to put the changes into effect, but keep the Graph Preferences window open so you can
●
make changes on another page.
Click OK to put the changes into effect and close the Graph Preferences window.
●
NOTE
The Graph preferences settings are not persistent—if you log out and close your EPICenter Client or browser, the
settings will return to the defaults.
Graph View (Figure
depth, elevation and rotation.

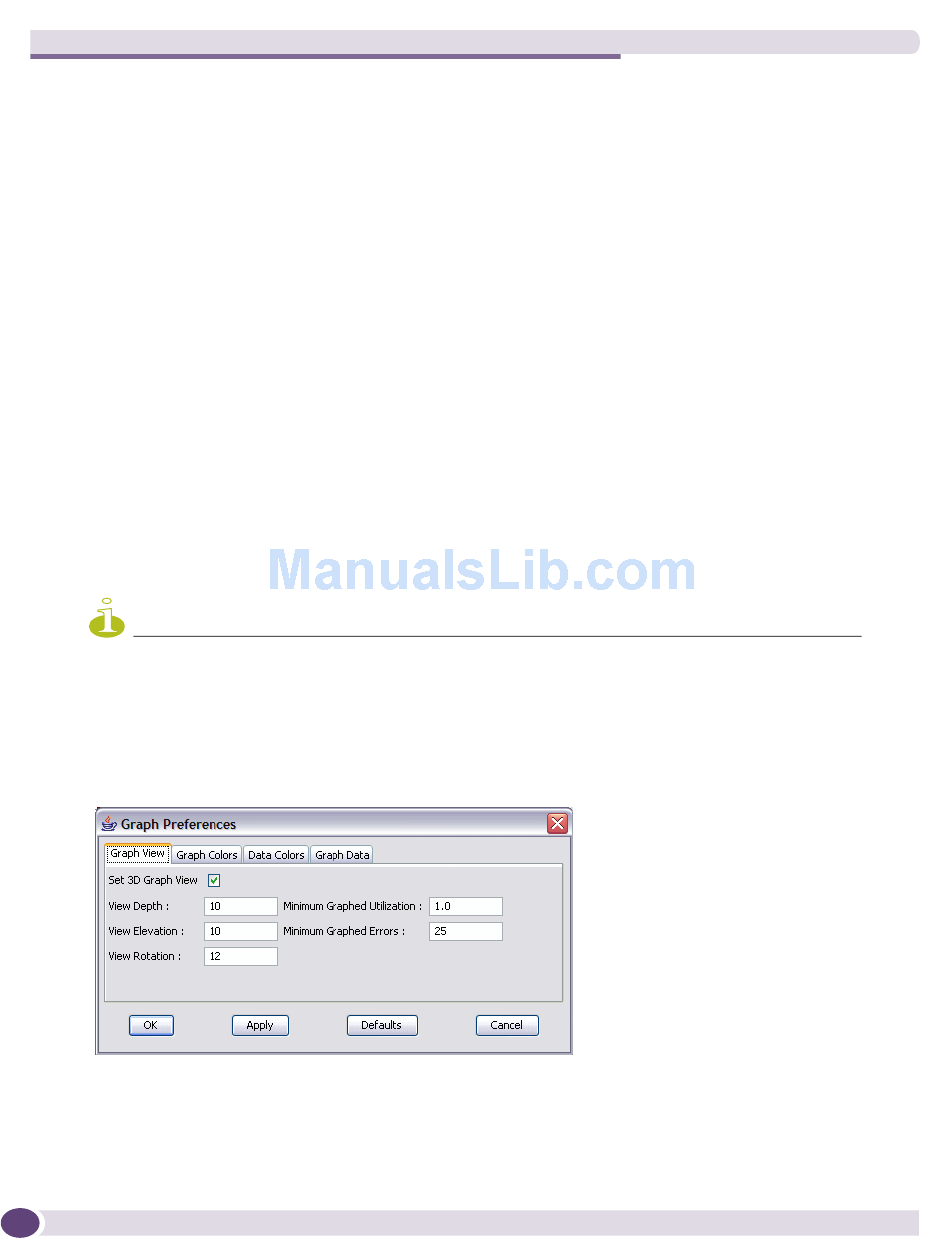

Figure 123: Setting 3D graph preferences
270
123) lets you change from 3D to 2D displays, and change the values for the 3D
Figure 123.
