Ejector
Package
15
Ejector Packages are available for either shallow well or
deep well operation. Pump owners manual describes
conditions that define shallow well and deep well oper-
ation. Read manual over carefully to determine your
pumping requirements. Note that the nozzle comes pre-
installed ill ejector body and works with both shallow
well and deep well venturis.

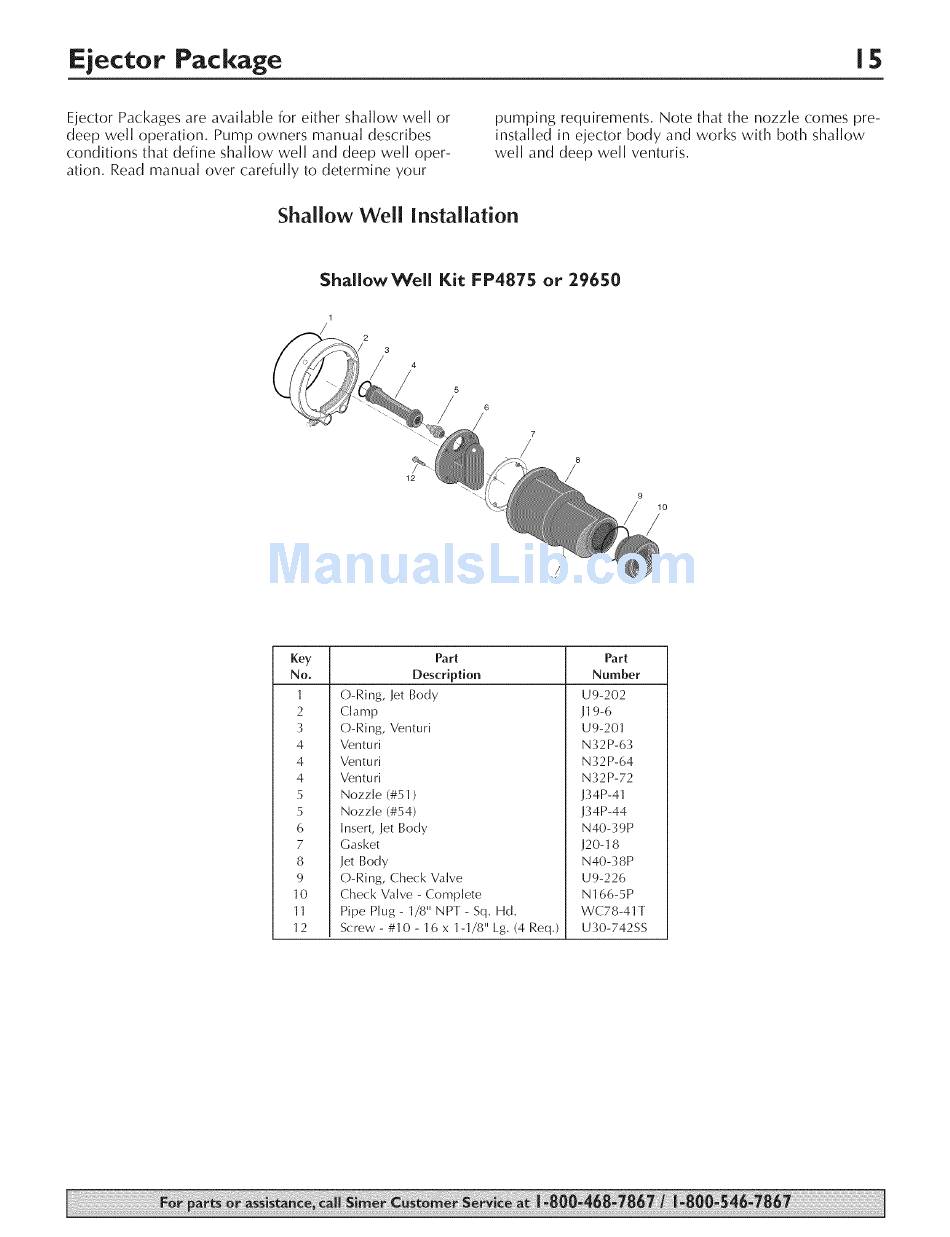

Shallow Well Installation
Shallow
Well
Kit
FP4875
or 29650
3
4
12
9
10
/
11
Key
No.
1
2
3
4
4
4
5
5
6
7
8
9
10
11
12
Part
Description
O-Ring, Jet Body
Clamp
O-Ring, Venturi
Venturi
Venturi
Venturi
Nozzle
(#51)
Nozzle
(#54)
Insert, Jet Body
Casket
Jet Body
O-Ring, Check Valve
Check Valve - Complete
Pipe Plug - 1/8" NPT - Sq. Hd.
Screw - #10 - 16 x 1-1/8" Lg. (4 Req.)
Part
Number
U9-202
J19-6
U9-201
N32P-63
N32P-64
N32P-72
J34P-41
J34P-44
N40-39P
J20-18
N40-38P
U9-226
N166-5P
WC78-41T
U30-742SS
