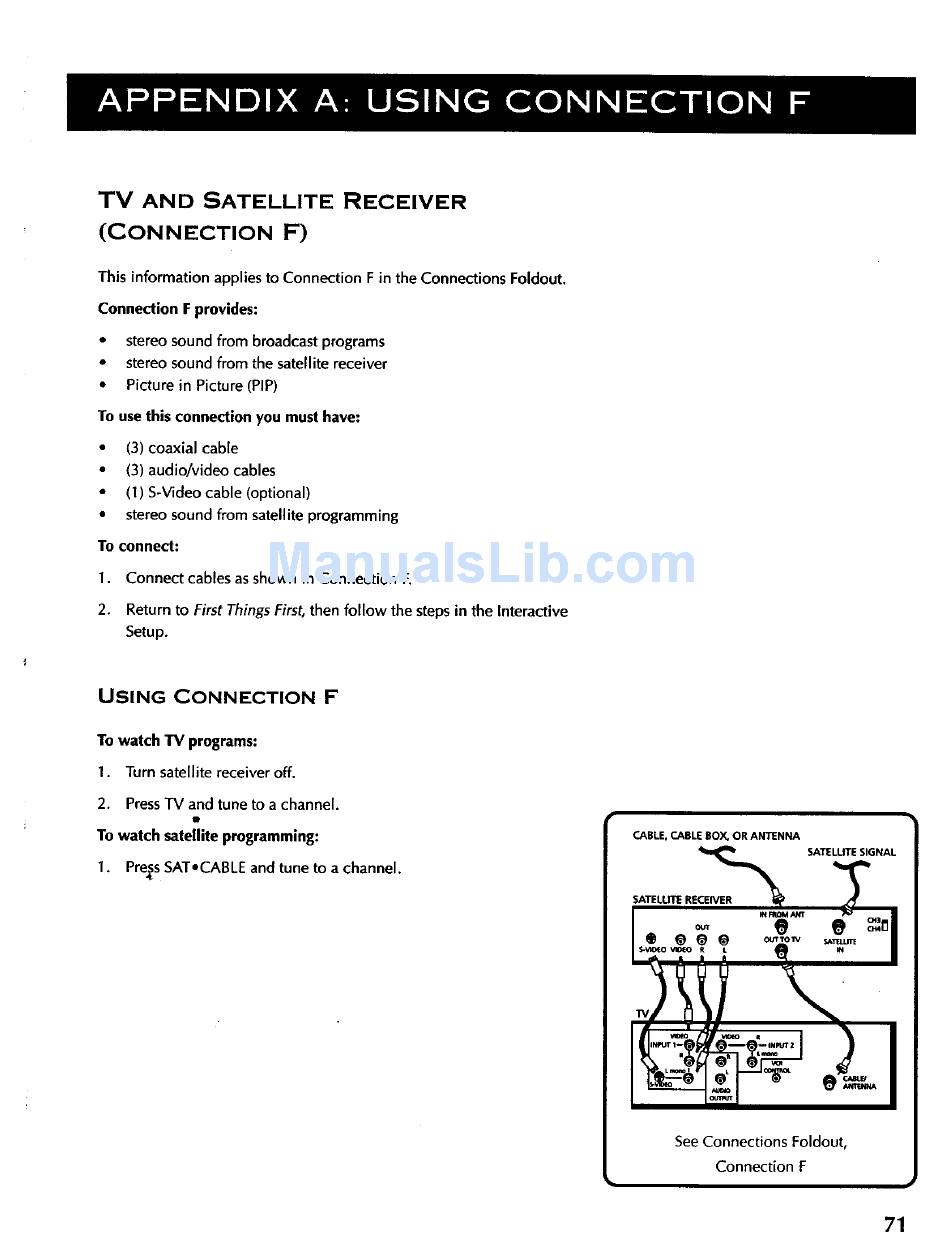

TV
AND SATELLITE RECEIVER
(CONNECTION F)
This information applies to Connection F in the Connections Foldout.
Connection F provides:
• stereo sound from broadcast programs
• stereo sound from the satellite receiver
• Picture in Picture (PIP)
To use this connection you must have:
• (3) coaxial cable
• (3) audio/video cables
• (1) S-Video cable (optional)
• stereo sound from satellite programmin 8
To connect:
1. Connect cables as shown in Connection R
2. Return to First Things First, then follow the steps in the Interactive
Setup.
USING CONNECTION
F
To watch TV programs:
1. Turn satellite receiver off.
2. PressTV and tune to a channel.
To watch satellite programming:
1. Pre_sSAT.CABLE and tune to a channel.
CABLE, CABLE BOX, OR ANTENNA
SATELLr_ RE_ Am SATE_GNAL
S-VIOIEO VlDC'O R L _ IN
"_ • I I
See Connections Foldout,
Connection F
