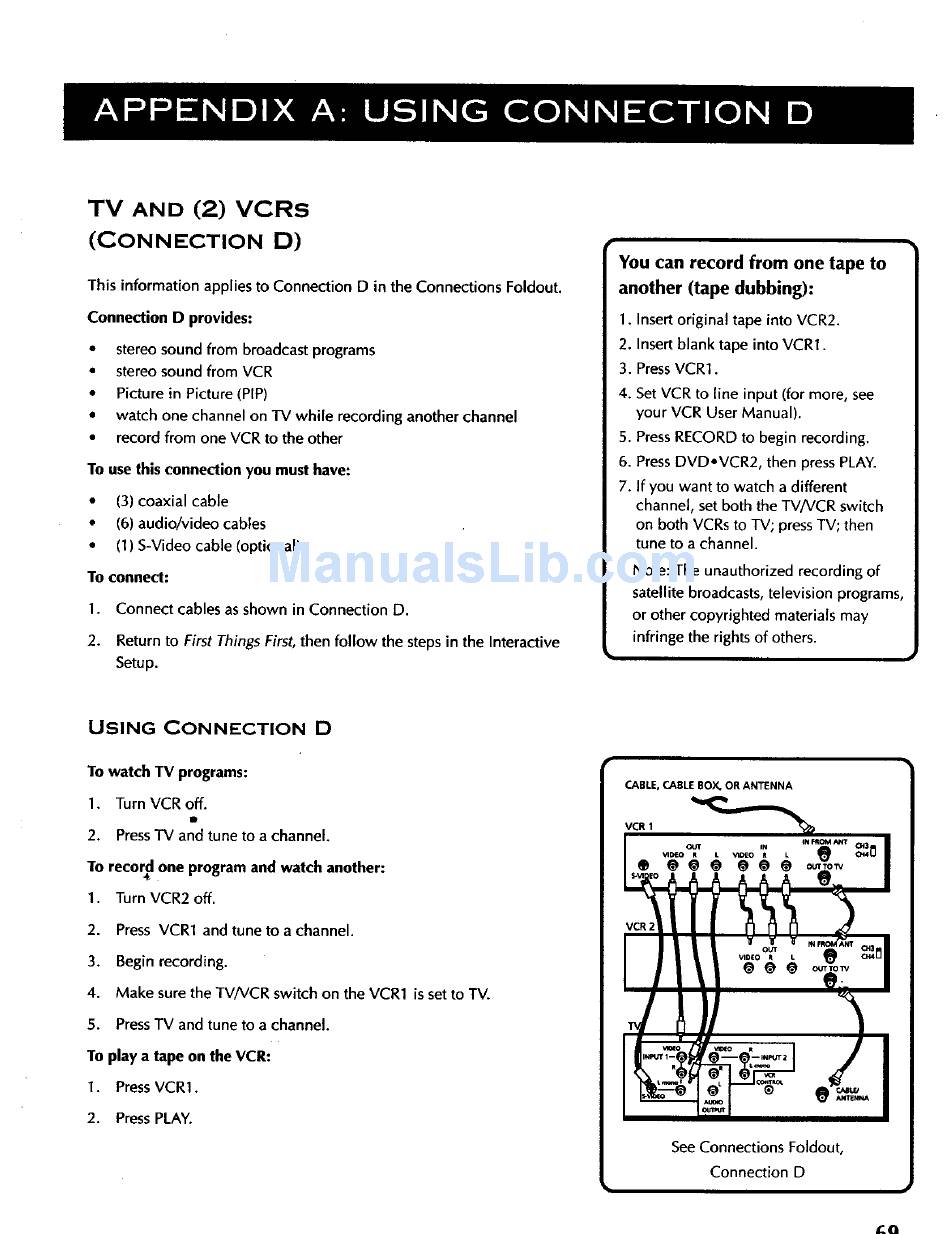

ProScan PS61670 User Manual page 71

TV AND (2) VCRS
(CONNECTION D)
This information applies to Connection D in the Connections Foldout.
Connection D provides:
• stereo sound from broadcast programs
* stereo sound from VCR
• Picture in Picture (PIP)
* watch one channel on TV while recording another channel
• record from one VCR to the other
To use this connection you must have:
• (3) coaxial cable
• (6) audio/video cables
* (1) S-Video cable (optional)
To¢oBoect:
1. Connect cables as shown in Connection D.
2. Return to First Things First, then follow the steps in the Interactive
Setup.
You can record from one tape to
another (tape dubbing):
1. Insert or{gina[ tape into VCR2.
2. Insert blank tape into VCR1.
3. PressVCR1.
4. Set VCR to line input (for more, see
your VCR User Manual).
5. Press RECORD to begin recording.
6. Press DVD•VCR2, then press PLAY.
7. If you want to watch a different
channel, set both the TV/VCR switch
on both VCRs to TV; press TV; then
tune to a channel.
Note: The unauthorized recording of
satellite broadcasts, television programs,
or other copyrighted materials may
infringe the rights of others.
_,
USING CONNECTION D
To watch TV programs:
1. Turn VCR off.
2. Press'IV and tune to a channel.
To record one program and watch another:
1. Turn VCR2 off.
2. Press VCR1 and tune to a channel.
3. Begin recording.
4. Make sure the TViVCR switch on the VCR1 is set to "iV.
5. Press TV and tune to a channel.
To play a tape on the VCR:
1. Press VCR1.
2. Press PLAY.
CABLE, CABLE BOX, OR ANTENNA
VCR 1
I
zl
See Connections Foldout,
Connection D
