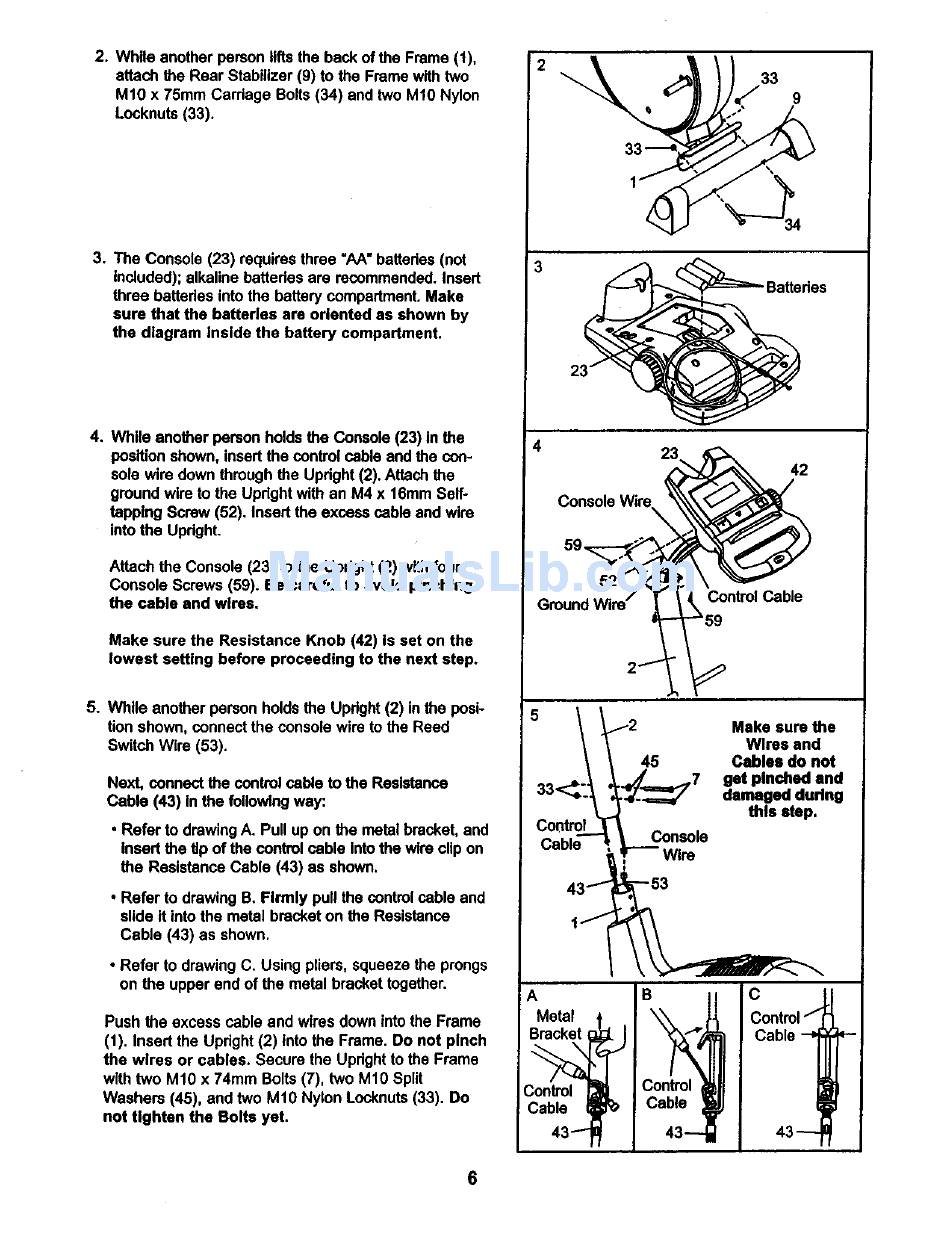

2. While another person lifts the back of the Frame (1),
attach the Rear Stabilizer (9) to the Frame with two
M10 x 75mm Carriage Bolts (34) and two M10 Nylon
Locknuts (33).
3. The Console (23) requiresthree "AA"batteries(not
included);alkaline batteriesare recommended.Insert
three batteries intothe battery compartment.Make
sure that the batteries are oriented as shown by
the diagram Inside the battery compartment.
4. While another person holdsthe Console(23) in the
position shown, insertthe control cable and the con-
sole wire down through the Upright(2). Attach the
ground wire to the Uprightwith an M4 x 16ramSerf-
tapping Screw (52). Insert the excess cable and wire
into the Updght.
Attach the Console (23) to the Upright(2) with four
Console Screws (59). Be careful to avoid pinching
the cable and wires.
Make sure the Resistance Knob (42) is set on the
lowest setting before proceeding to the next step.
5. While another person holds the Upright(2) In the posi-
tion shown, connect the console wire to the Reed
Switch Wire (53).
Next, connectthe controlcable to the Resistance
Cable (43) in the followingway:.
• Refer to drawingA. Pull up on the metalbracket, and
insert the tip of the control cable Intothe wire clip on
the Resistance Cable (43) as shown.
• Refer to drawing B. Firmly pull the controlcable and
elide it into the metal bracket on the Resistance
Cable (43) as shown.
• Refer to drawingC. Using pliers, squeeze the prongs
on the upper end of the metal bracket together.
Push the excess cable and wires down intothe Frame
(1). Insert the Upright(2) Into the Frame. Do not pinch
the wires or cables. Secure the Upright to the Frame
with two M10 x 74mm Bolts(7), two M10 Split
Washers (45), and two M10 Nylon Locknuts (33). Do
not tighten the Bolts yet.
3 ----=-Battedes
4 n e W;r
oo o,
Ground 5_/_ _59COntrOlCab'_ ' _ e
° Makeeu the
\ \ Wires and
\ \ 45 Cables do not
33 j*'_ _ .,___.___7 get pinched and
"-_-_ , .".er._ damaged during
_ i -- this step.
Control t
Cable-" "_ _console
43"_ C_53
Metal _j
Bracket
Control ! Control
Cable ;_ Cable
43-I
Control"_
Cable "-_ ' ' _-
'1
6
