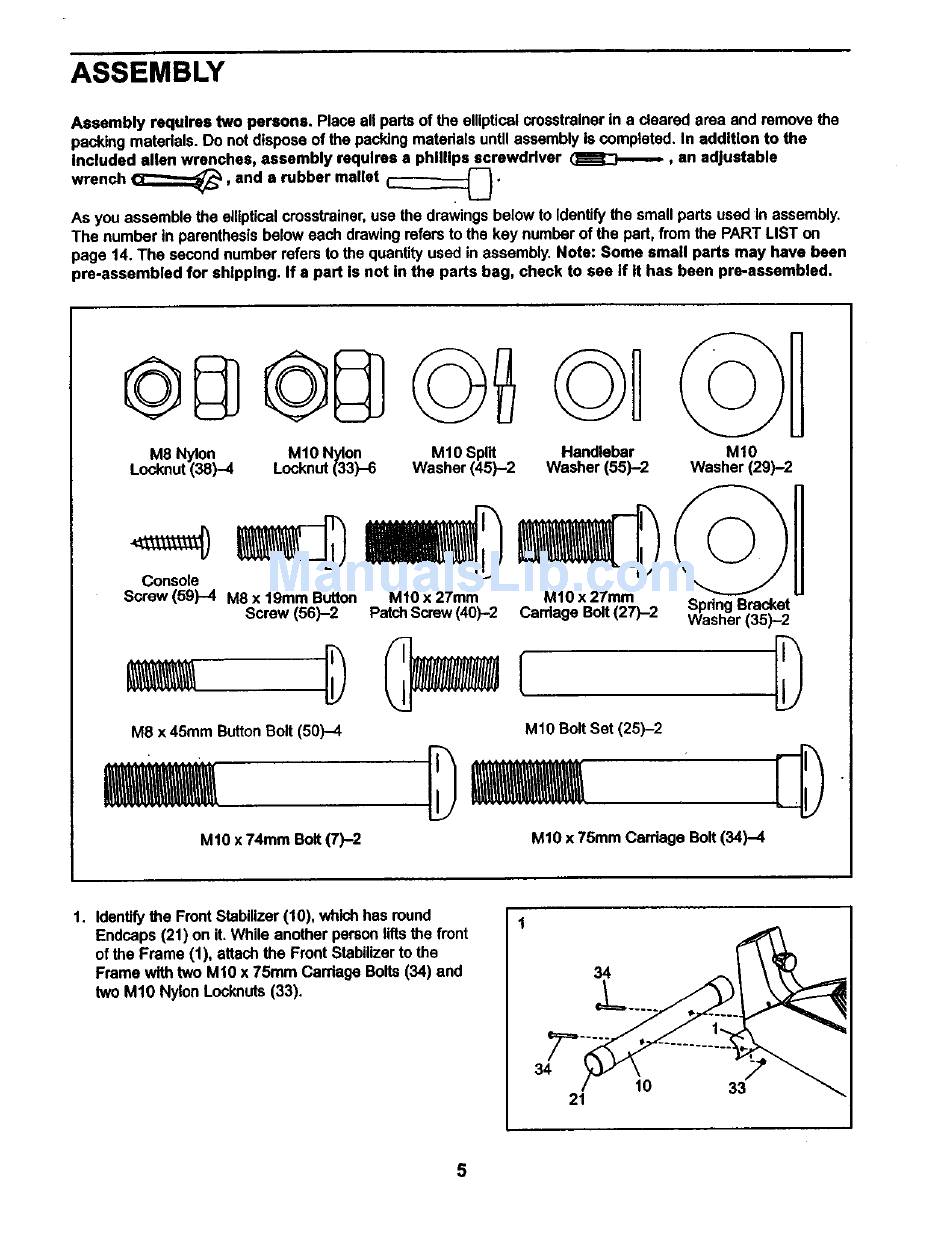

ASSEMBLY
Assembly requires two persons. Place all parts of the ellipticalcrosstralnerin a cleared area and remove the
packing materials. Do not dispose of the packing materialsuntil assembly is completed. In addition to the
Included allen wrenches, assembly requlrss a phillips screwddver (_, an adjustable
wrench (_=_, and a rubber mallet C_) •
As you assemble the ellipticalcrosstreiner0 use the drawingsbelow to Identifythe small parts used In assembly.
The number in parenthesisbelow each drawingrefers to the key number of the part, from the PART LIST on
page 14. The second number refers to the quantify used in assembly.Note: Some small parts may have been
pre-aseemblad for shipping. If s part Is not In the parts bag, check to see If It has been pre-asserobled.
@8 @@
M8 Nylon M10 Nylon M10 Splk Handlebar M 10
Locknut (38)-4 Locknut (33)-6 Washer (45)-2 Washer (55)-2 Washer (29)-2
Console
Screw (59)-4 M8 x 19mm Button M10 x 27ram M10 x 27rom
Screw (56)-2 PatchScrew(40)-2 Carriage Bolt(27)-2
Spdng Bracket
Washer (35)-2
M8 x 45mm ButtonBolt (50)-4
M10 Bolt Bet (25)-2
M10 x 74mro Bolt (7)-2
M10 x 75rom Carriage Bolt (34)-4
1. Identifythe Front Stabilizer(10), whichhas round
Endceps (21) on it. While another parson lifts the front
of the Frame (1), attach the Front Stabilizer to the
Frame with two MIO x 75mm Carriage Bolts(34) and
two M10 Nylon Locknuts (33).
5
