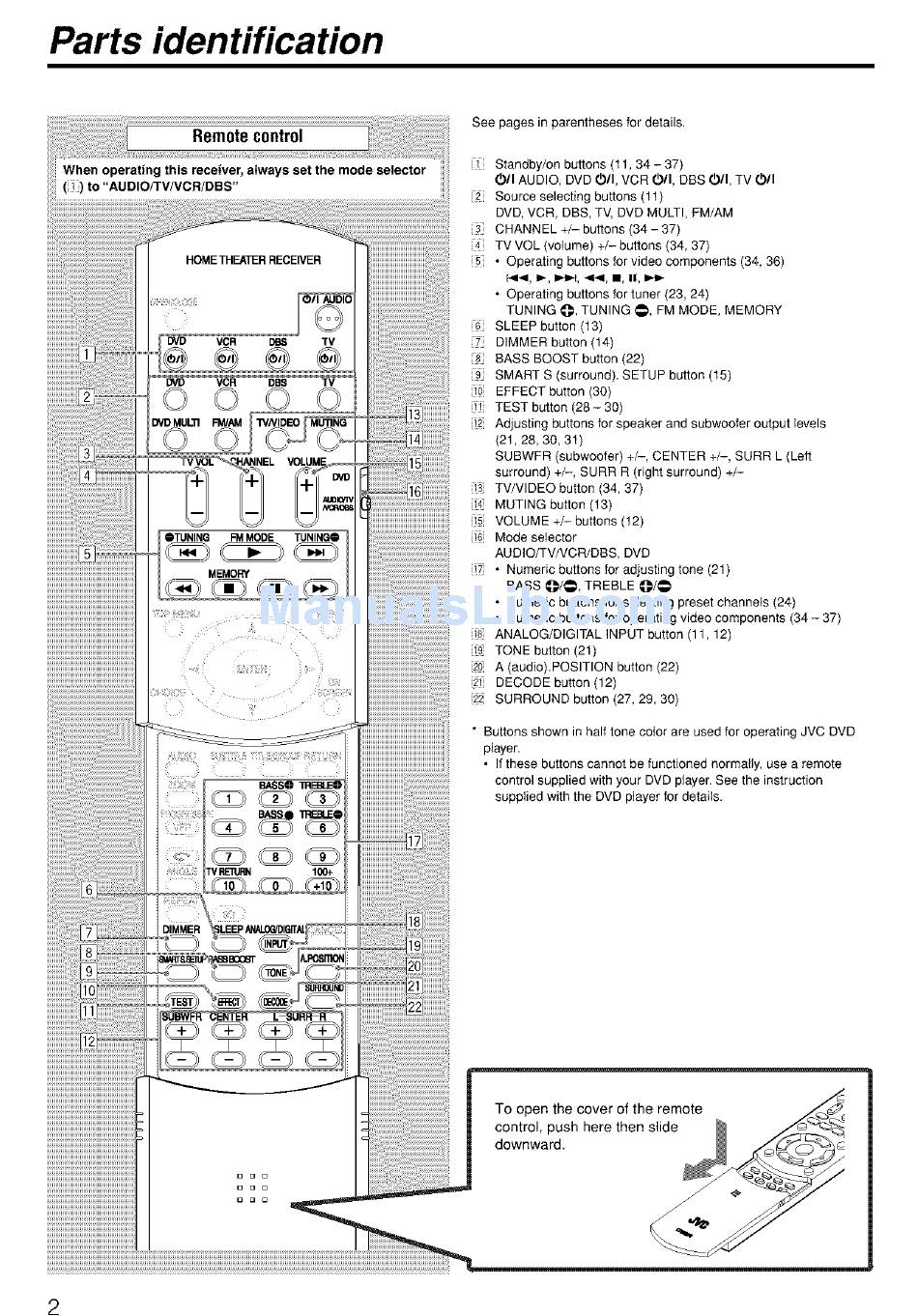

Parts identification
Remotecontrol
When operating this receiver, aIways set the mode selector
(7) to "AUDIO/TV/VCR/DBS"
HOMETHEA_R RECEIVER
DVD VCR DBS TV
DVD VCR DBS TV
DVD MUL'n F'M/AM 'W/VIDEO MU]]NG
I
I
@TUNING FMMODE TUNINGa
MEMORY
See pages in parentheses for details.
Standby/on buttons (11, 34 - 37)
O/I AUDIO, DVD O/I, VCR t_/I, DBS O/I, TV O/I
Source selecting buttons (11)
DVD, VCR, DBS, TV, DVD MULTI, FM/AM
CHANNEL +/- buttons (34 - 37)
[4 TV VOL (volume) +/- buttons (34, 37)
• Operating buttons for video components (34, 36)
F,<_, Ira,-, m_Ja,_, n, i i, iI,-_=,-
• Operating buttons for tuner (23, 24)
TUNING _]_,TUNING _, FM MODE, MEMORY
SLEEP button (13)
DIMMER button (14)
BASS BOOST button (22)
9 SMART S (surround). SETUP button (15)
0 EFFECT button (30)
11 TEST button (28- 30)
12 Adjusting buttons for speaker and subwooter output levels
(21,28, 30, 31)
SUBWFR (subwoofer) +/-, CENTER +/-, SURR L (Left
surround) +/-, SURR R (right surround) +/-
13 TV/VlDEObutton (34, 37)
i4] MUTING button (13)
[i5 VOLUME +/- buttons (12)
16 Mode selector
AUDIO/TV/VCR/DBS, DVD
17 • Numeric buttons for adjusting tone (21)
BASS _/_, TREBLE _]_/_
• Numeric buttons for selecting preset channels (24)
• Numeric buttons for operating video components (34 - 37)
i8 ANALOG/DIGITAL INPUT button (11,12)
i9 TONE button (21)
2o A (audio).POSITION button (22)
21 DECODE button (12)
2_ SURROUND button (27, 29, 30)
Buttons shown in half tone color are used for operating JVC DVD
player.
• If these buttons cannot be functioned normally, use a remote
control supplied with your DVD player. See the instruction
supplied with the DVD player for details.
10o+
[3[3[3
[3[3[3
DUD
TO open the cover of the remote _
control, push here then slide _ J_
downward. __
2
