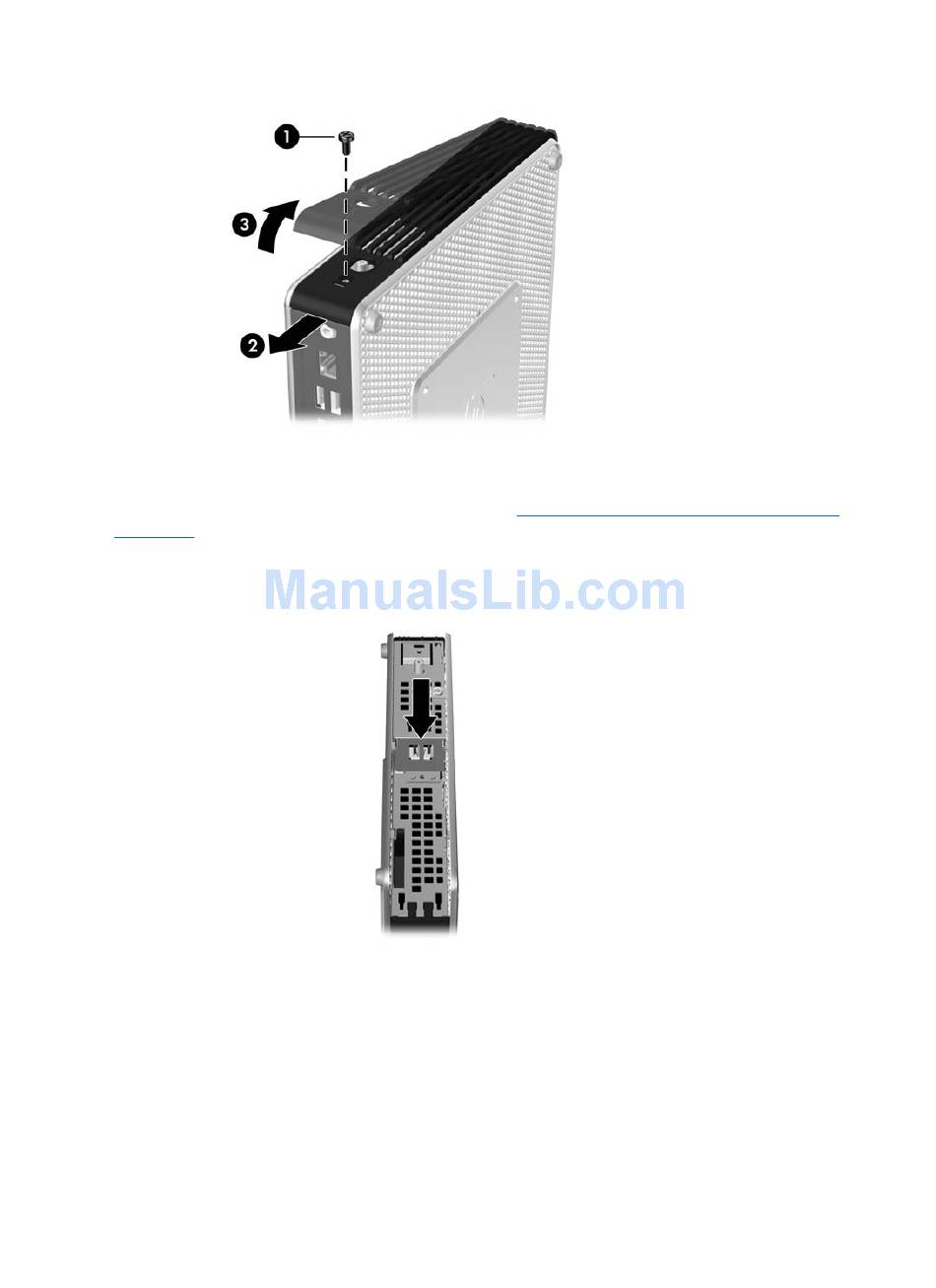

4. Remove the cover from the unit by first lifting the rear (screw side) of the cover, and then lifting the
cover off the unit (3).

Installing the USB Device

Before beginning the replacement process, review
on page 7 for procedures you should follow before and after installing or replacing hardware.
Insert the USB device into the USB port in the secure USB compartment. See the following
▲
illustration for the location of the ports in the secure USB compartment.

Replacing the Secure USB Compartment Cover

To replace the secure compartment cover:
1. Place the cover on top of the unit so it is offset about 1.27 cm (1/2 inch) toward the rear of the unit,
allowing the tabs on the cover to align and insert into the slots on the chassis (1).
2. Slide the cover toward the front of the unit until it locks in place and the cover is flush with the front
panel of the chassis (2).
General Hardware Installation Sequence
Removing and Replacing the Secure USB Compartment Cover 9
