NOTE:
Do not remove the metal side cover when installing a PCI Expansion Module.
You must remove the metal side cover to access internal components such as the battery or the memory.
1.

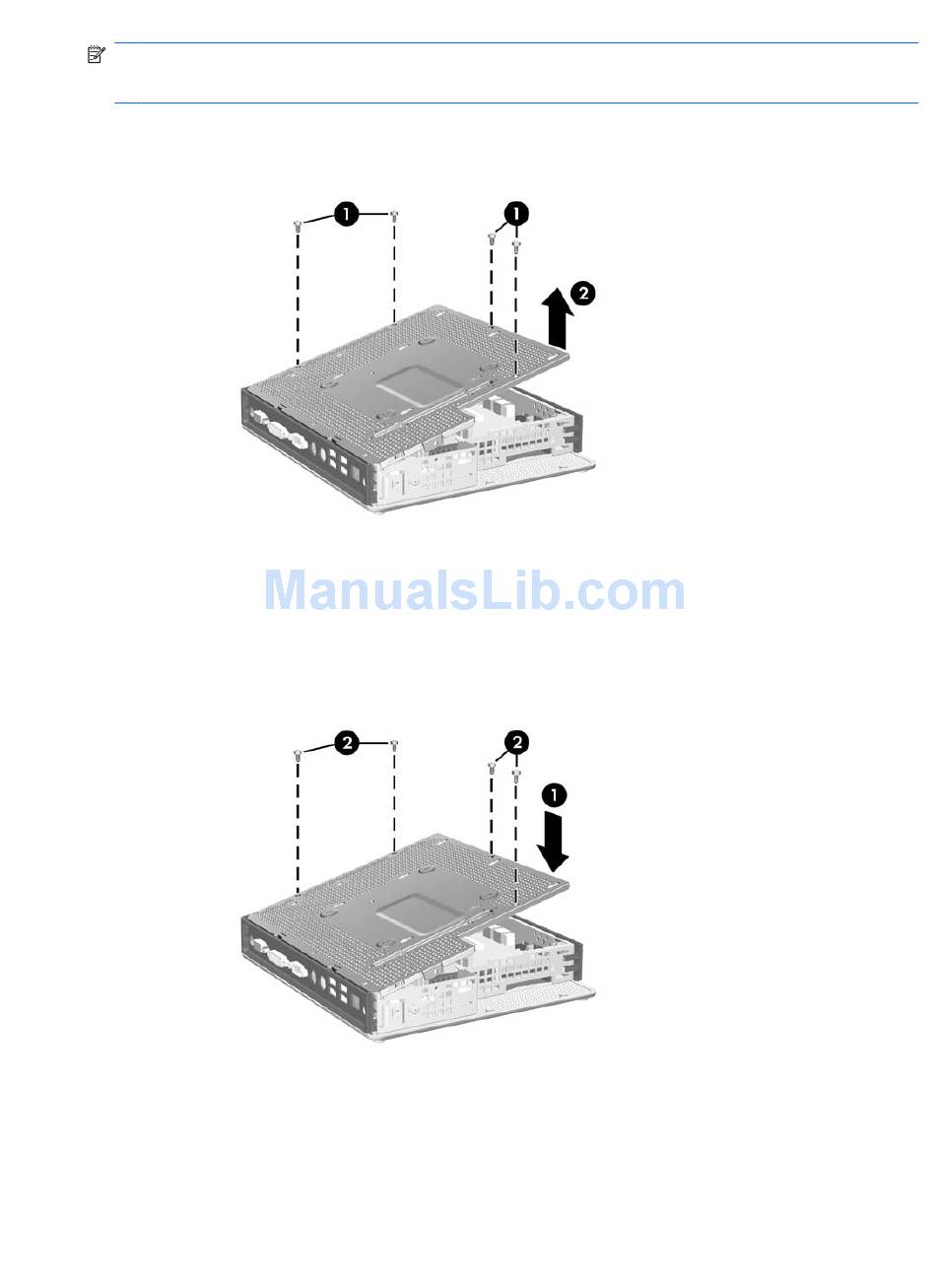

Remove the four screws that secure the metal side cover to the chassis (1).
2.
Lift the metal side cover, front side first, off the unit (2).
Replacing the Metal Side Cover and Side Access Panel
To replace the metal side cover:
1.
Place the metal side cover on the chassis, front side first, making sure to align the screw holes in
the cover with the holes in the chassis (1).
2.
Insert and tighten the four screws (2).
To replace the access panel:
1.
Place the access panel on the side of the unit, offset about 6.35 mm (1/4 inch) toward the rear of
the unit (1).
2.
Slide the panel toward the front of the unit until it locks into place (2).
Removing and Replacing the Side Access Panel and Metal Side Cover
11
