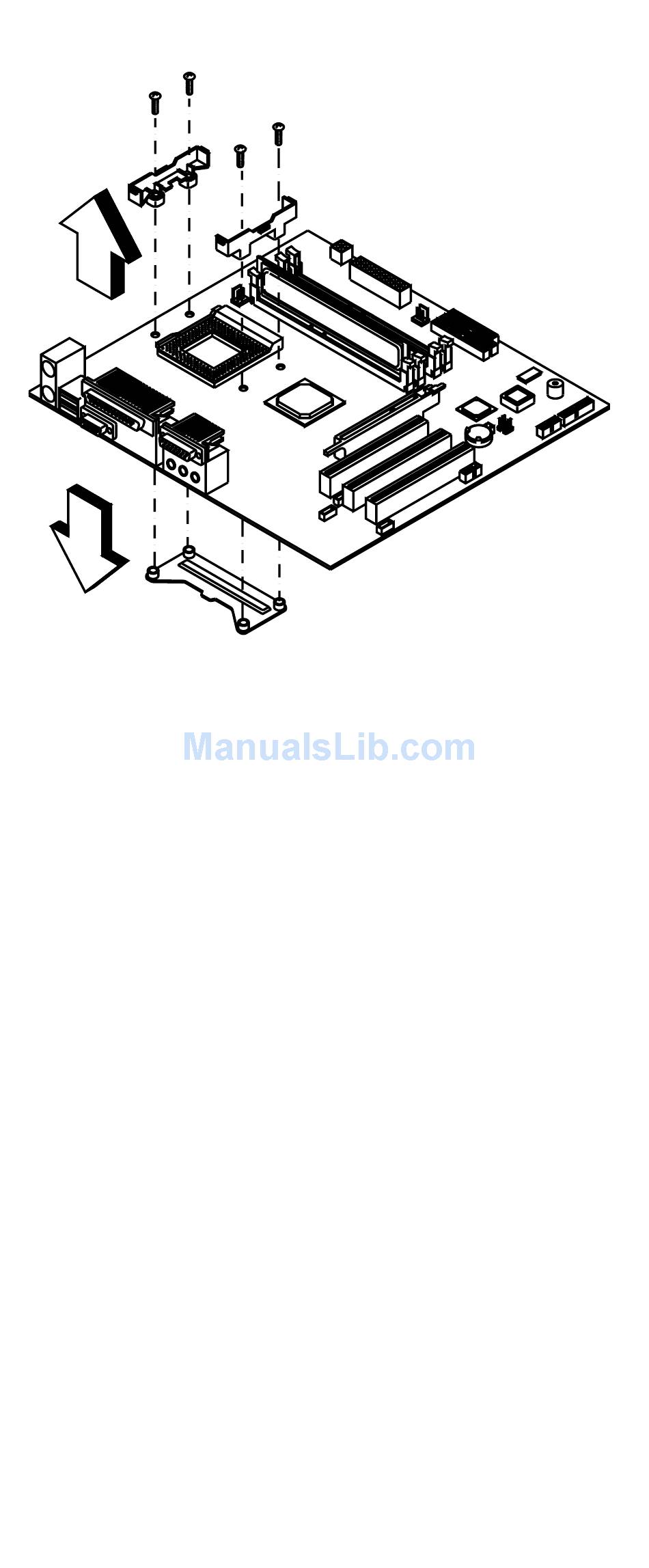

NOTE: System Board Installation
•
Before reinstallation, position the housing on its
side. When installing a new system board, push
the board to the rear and align it with the front
locating pin. Visually verify that the board is
aligned properly, then press the board down.
•
Be sure to reinstall the processor, DIMMs, I/O port
bracket onto the new system board if applicable.
•
After installing the system board, secure with
original screws.
•
Change all jumper settings to match those of the
original board.
•
Reinstall other components into the machine i.e.
drives, power supply, cables, etc.
•
Upgrade the BIOS version on the new system
board using the BIOS upgrade utility.
•
Change the Machine Type and Serial Number in
the BIOS to match the original planar BIOS
settings.
•
Reboot the system and run the Configuration/
Setup Utility.
