2.

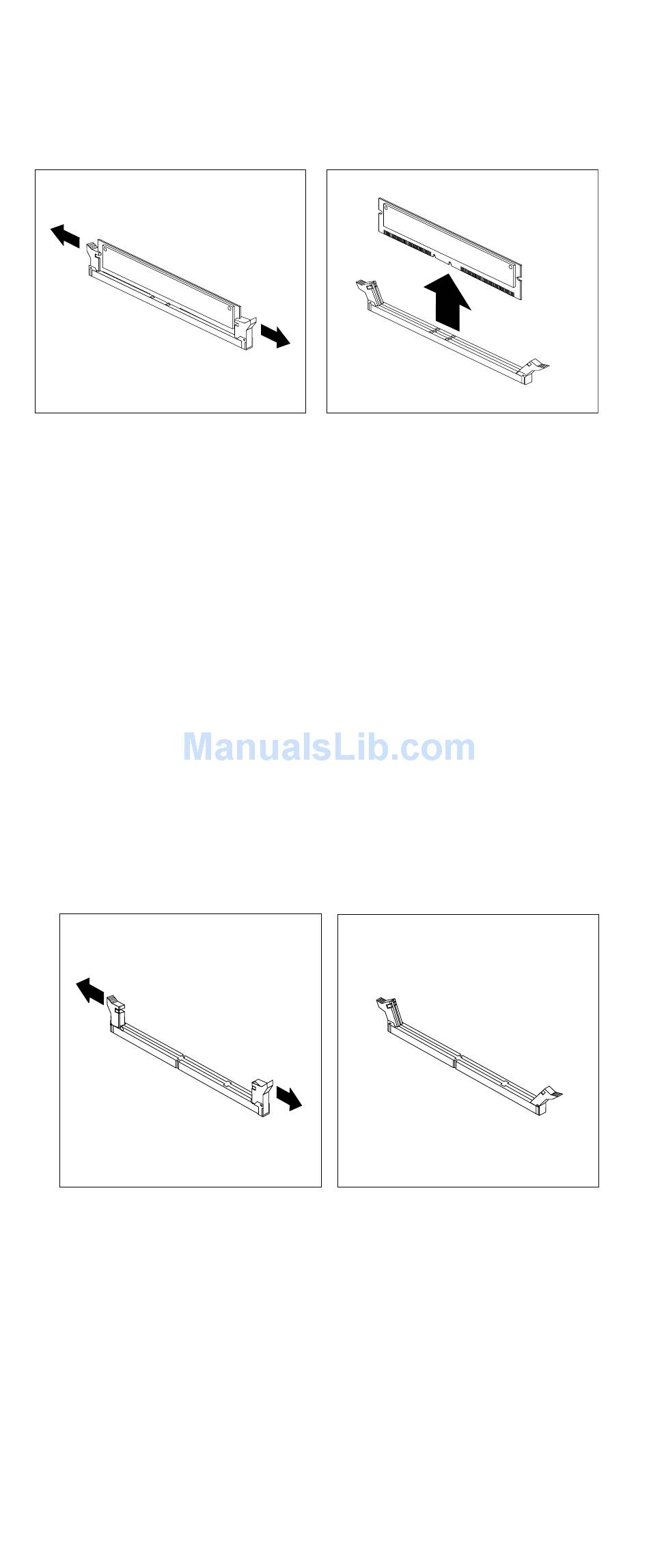

At both ends of the RIMM connector on the system board,
push outward on the retaining clips until the module is
loosened. Lift the RIMM or C-RIMM out of the connector.
NOTE: Be careful not to push too hard on the
retaining clips, because the RIMM or C-RIMM
might eject too quickly.
3.
Store the RIMM or C-RIMM in a static-protective package.
Do not discard or lose this part. It might be needed later if
you change your memory configuration.
Installing a RIMM or C-RIMM
To install a RIMM or C-RIMM:
1.
Touch the static-protective package containing the RIMM
to any unpainted metal surface in the computer, and then
remove the RIMM or C-RIMM.
2.
If the retaining clips are not already open, open them.
3.
Position the RIMM or C-RIMM above the connector so
that the two notches on the bottom edge of the module
align properly with the empty connector.
4.
Firmly push the module straight down into the connector
until the retaining clips pop up and fit snugly around both
ends of the module.
