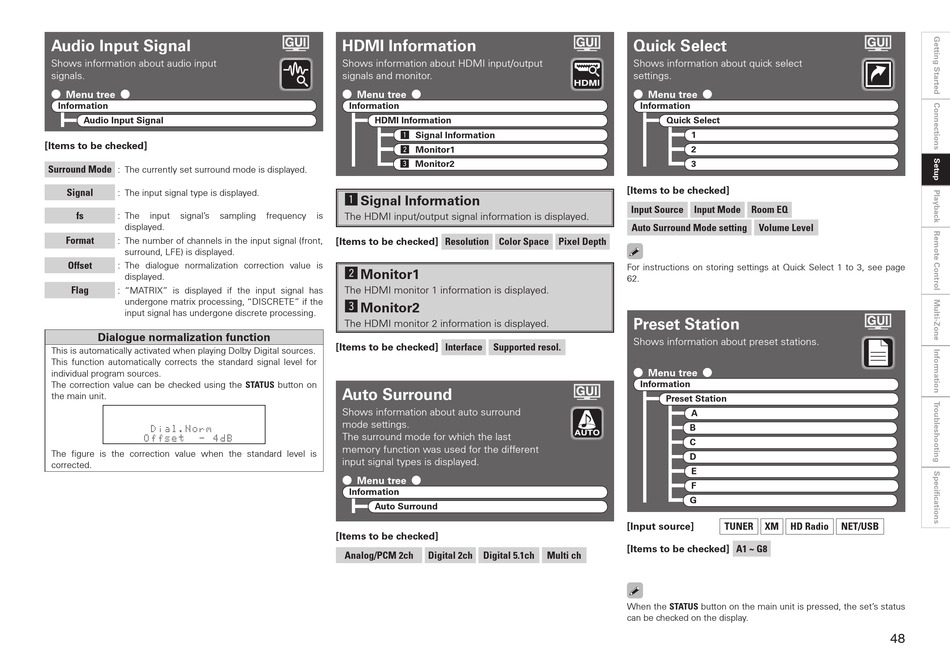

Audio Input Signal

Shows information about audio input
signals.
F Menu tree F
Information
Audio Input Signal
[Items to be checked]
Surround Mode
: The currently set surround mode is displayed.
Signal
: The input signal type is displayed.
fs
: The input signal's sampling
displayed.
Format
: The number of channels in the input signal (front,
surround, LFE) is displayed.
Offset
: The dialogue normalization correction value is
displayed.
Flag
: "MATRIX" is displayed if the input signal has
undergone matrix processing, "DISCRETE" if the
input signal has undergone discrete processing.
Dialogue normalization function
This is automatically activated when playing Dolby Digital sources.
This function automatically corrects the standard signal level for
individual program sources.
The correction value can be checked using the STATUS button on
the main unit.
The figure is the correction value when the standard level is
corrected.

HDMI Information

Shows information about HDMI input/output
signals and monitor.
F Menu tree F
Information
HDMI Information
a Signal Information
s Monitor1
d Monitor2
a Signal Information
frequency is The HDMI input/output signal information is displayed.
[Items to be checked] Resolution Color Space Pixel Depth
s Monitor1
The HDMI monitor 1 information is displayed.
d Monitor2
The HDMI monitor 2 information is displayed.
Interface
[Items to be checked]

Auto Surround

Shows information about auto surround
mode settings.
The surround mode for which the last
memory function was used for the different
input signal types is displayed.
F Menu tree F
Information
Auto Surround
[Items to be checked]
Analog/PCM 2ch Digital 2ch Digital 5.1ch

Quick Select

Shows information about quick select
settings.
F Menu tree F
Information
Quick Select
[Items to be checked]
Input Source Input Mode Room EQ
Auto Surround Mode setting
For instructions on storing settings at Quick Select 1 to 3, see page
62.

Preset Station

Shows information about preset stations.
Supported resol.
F Menu tree F
Information
Preset Station
[Input source]
[Items to be checked]
Multi ch
When the STATUS button on the main unit is pressed, the set's status
can be checked on the display.
1
2
3
Volume Level
A
B
C
D
E
F
G
TUNER XM HD Radio NET/USB
A1 ~ G8
