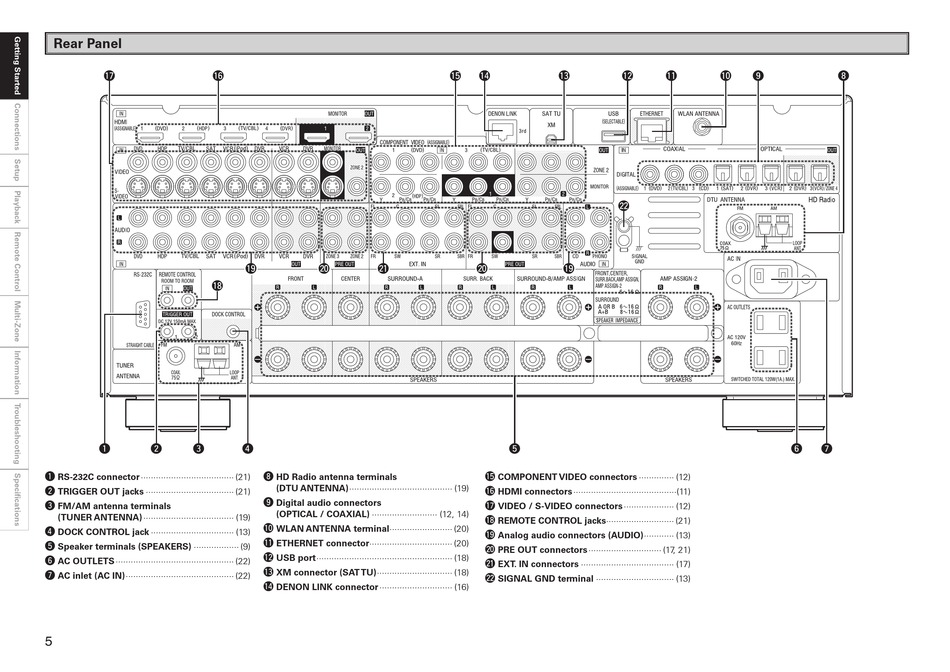

Rear Panel

Q7 Q6
Q8
q w e
q RS-232C connector ····································· (21)
w TRIGGER OUT jacks ··································· (21)
e FM/AM antenna terminals
(TUNER ANTENNA) ···································· (19)
r DOCK CONTROL jack ································· (13)
t Speaker terminals (SPEAKERS) ·················· (9)
y AC OUTLETS ··············································· (22)
u AC inlet (AC IN) ··········································· (22)

Q9 Q9 W0 W0 W1 W1
r
i HD Radio antenna terminals
(DTU ANTENNA) ········································· (19)
o
Digital audio connectors
(OPTICAL / COAXIAL) ·························· (12, 14)
Q0 WLAN ANTENNA terminal ························· (20)
Q1 ETHERNET connector ································· (20)
Q2 USB port ······················································ (18)
Q3 XM connector (SAT TU) ······························ (18)
Q4 DENON LINK connector ····························· (16)
Q5 Q4 Q3 Q2
W2
W0 W0 Q9 Q9
t
Q5 COMPONENT VIDEO connectors ·············· (12)
Q6 HDMI connectors ·········································(11)
Q7 VIDEO / S-VIDEO connectors ···················· (12)
Q8 REMOTE CONTROL jacks··························· (21)
Q9 Analog audio connectors (AUDIO) ············ (13)
W0 PRE OUT connectors ····························· (17 , 21)
W1 EXT. IN connectors ····································· (17)
W2 SIGNAL GND terminal ······························· (13)
Q1 Q0 o i
y u
