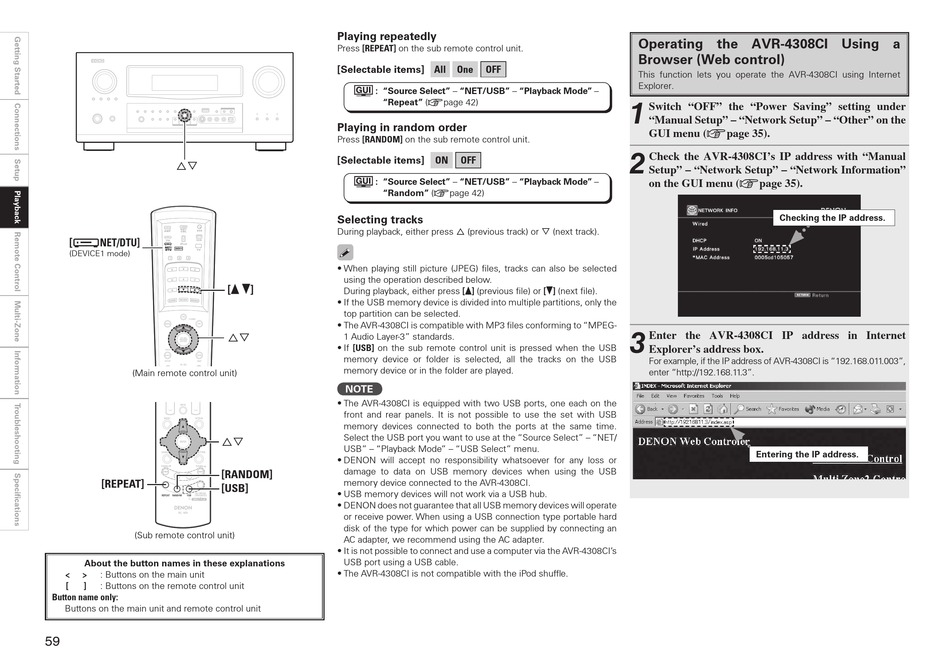

Operating The Avr-4308Ci Using A Browser (Web Control) - Denon AVR 4308CI - AV Network Receiver Owner's Manual

ui
[ NET/DTU]
(DEVICE1 mode)
(Main remote control unit)
ui
[RANDOM]
[REPEAT]
[USB]
(Sub remote control unit)
About the button names in these explanations
< > : Buttons on the main unit
[ ] : Buttons on the remote control unit
Button name only:
Buttons on the main unit and remote control unit

Playing repeatedly
Press [REPEAT] on the sub remote control unit.
[Selectable items] All
: "Source Select" – "NET/USB" – "Playback Mode" –
"Repeat" (vpage 42)
Playing in random order
Press [RANDOM] on the sub remote control unit.
[Selectable items]
: "Source Select" – "NET/USB" – "Playback Mode" –
"Random" (vpage 42)
Selecting tracks
During playback, either press u (previous track) or i (next track).
• When playing still picture (JPEG) files, tracks can also be selected
using the operation described below.
[d f]
During playback, either press [d] (previous file) or [f] (next file).
• If the USB memory device is divided into multiple partitions, only the
top partition can be selected.
• The AVR-4308CI is compatible with MP3 files conforming to "MPEG-
1 Audio Layer-3" standards.
ui
• If [USB] on the sub remote control unit is pressed when the USB
memory device or folder is selected, all the tracks on the USB
memory device or in the folder are played.
NOTE
• The AVR-4308CI is equipped with two USB ports, one each on the
front and rear panels. It is not possible to use the set with USB
memory devices connected to both the ports at the same time.
Select the USB port you want to use at the "Source Select" – "NET/
USB" – "Playback Mode" – "USB Select" menu.
• DENON will accept no responsibility whatsoever for any loss or
damage to data on USB memory devices when using the USB
memory device connected to the AVR-4308CI.
• USB memory devices will not work via a USB hub.
• DENON does not guarantee that all USB memory devices will operate
or receive power. When using a USB connection type portable hard
disk of the type for which power can be supplied by connecting an
AC adapter, we recommend using the AC adapter.
• It is not possible to connect and use a computer via the AVR-4308CI's
USB port using a USB cable.
• The AVR-4308CI is not compatible with the iPod shuffle.
One OFF
ON OFF
Operating the AVR-4308CI Using a
Browser (Web control)
This function lets you operate the AVR-4308CI using Internet
Explorer.
1
Switch "OFF" the "Power Saving" setting under
"Manual Setup" – "Network Setup" – "Other" on the
GUI menu (vpage 35).
2
Check the AVR-4308CI's IP address with "Manual
Setup" – "Network Setup" – "Network Information"
on the GUI menu (vpage 35).
Checking the IP address.
3
Enter the AVR-4308CI IP address in Internet
Explorer's address box.
For example, if the IP address of AVR-4308CI is "192.168.011.003",
enter "http://192.168.11.3".
Entering the IP address.
