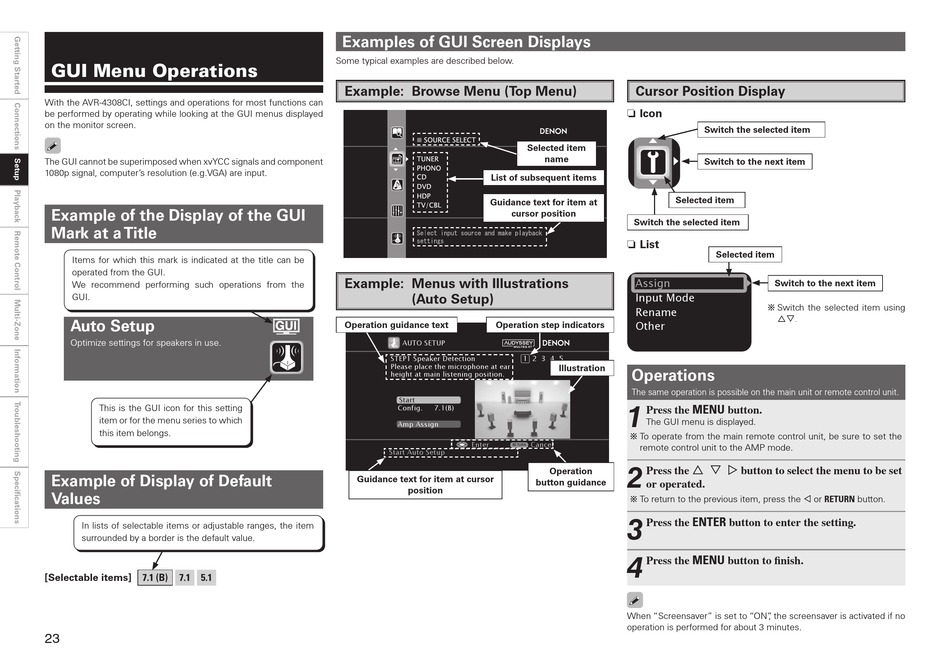

GUI Menu Operations

With the AVR-4308CI, settings and operations for most functions can
be performed by operating while looking at the GUI menus displayed
on the monitor screen.
The GUI cannot be superimposed when xvYCC signals and component
1080p signal, computer's resolution (e.g.VGA) are input.
Example of the Display of the GUI
Mark at a Title
Items for which this mark is indicated at the title can be
operated from the GUI.
We recommend performing such operations from the
GUI.
Auto Setup
Optimize settings for speakers in use.
This is the GUI icon for this setting
item or for the menu series to which
this item belongs.
Example of Display of Default
Values
In lists of selectable items or adjustable ranges, the item
surrounded by a border is the default value.
[Selectable items] 7.1 (B) 7.1 5.1


Examples of GUI Screen Displays

Some typical examples are described below.

Example: Browse Menu (Top Menu)

List of subsequent items
Guidance text for item at
cursor position
Example: Menus with Illustrations
(Auto Setup)
Operation guidance text Operation step indicators
AUTO SETUP
STEP1 Speaker Detection
Please place the microphone at ear
height at main listening position.
Start
Config. 7.1(B)
Amp Assign
Enter
RETURN
Start Auto Setup
Guidance text for item at cursor
position

Cursor Position Display

n Icon
Selected item
name
Selected item
Switch the selected item
n List
Assign
Input Mode
Rename
Other
1 2 3 4 5
Illustration

Operations

The same operation is possible on the main unit or remote control unit.
1
MENU
Press the
The GUI menu is displayed.
b To operate from the main remote control unit, be sure to set the
Cancel
remote control unit to the AMP mode.
2
Press the u i p
Operation
button guidance or operated.
b To return to the previous item, press the o or RETURN button.
3
ENTER
Press the
4
MENU
Press the
When "Screensaver" is set to "ON" , the screensaver is activated if no
operation is performed for about 3 minutes.
Switch the selected item
Switch to the next item
Selected item
Switch to the next item
b Switch the selected item using
ui.
button.
button to select the menu to be set
button to enter the setting.
button to finish.
