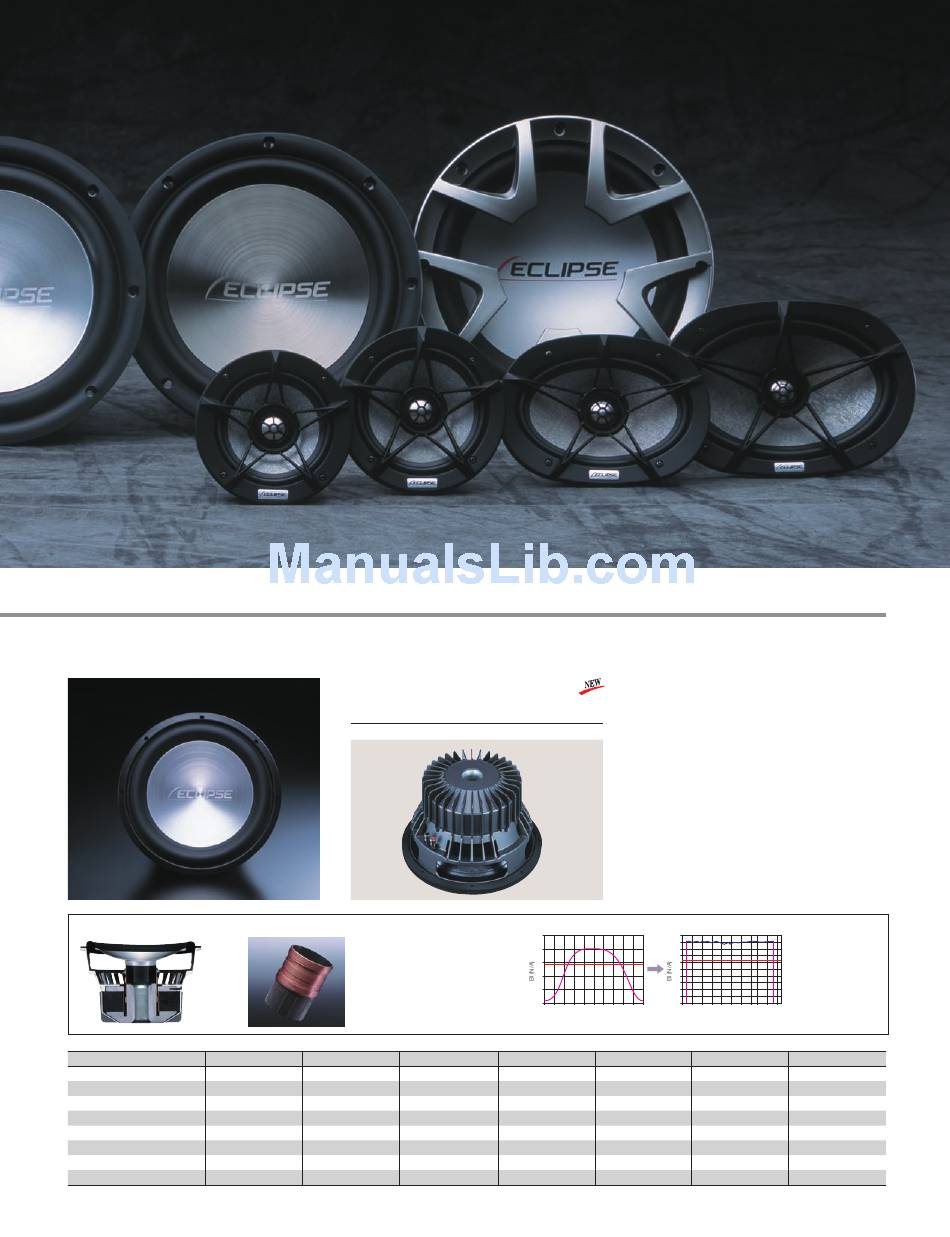

Eclipse AVN7000 Brochure page 29

SW8000 Series
ECLIPSE linear transducer technology*
* Patent pending
SW9182Pro
Size
Fs 24Hz
Qts 0.17
1Ω × 4
DCR
Vas 5.7 Cuft
Xmax (one way) 3.5˝ peak-to-peak (max: 4˝) 3.5˝ peak-to-peak (max: 4˝)
Continuous Power Handling 3000W
Maxmum Power Handling 5000W
SW8200
SW8000
The world's first passive, long throw
audiophile subwoofer for the mobile
environment offers ideal transient
response with accurate excursion,
producing taut and powerful low
frequencies that significantly
enhance music.
SW9152Pro
18˝ 15˝
27Hz
0.15
1Ω × 4
2.0 Cuft
3000W
5000W
12˝ Subwoofer (4Ω)
10˝ Subwoofer (4Ω)
Non-Linear Voice Coil
BI vs. x
25
20
15
10
5
0
-50 -40 -30 -20 -10 0 10 20 30 40 50
dispiacement (mm)
Bi fit between -24mm and 28mm
SW9152 SW9122
15˝ 12˝
22Hz 22Hz
0.39 0.30
4Ω + 4Ω 4Ω + 4Ω
6.10 Cuft 3.20 Cuft
1.75˝ 1.50˝
750W 750W
1500W 1500W
SW8000 Series
The heavy-duty SW8000 series is available in the
most popular sizes and sports a distinctive look.
• RMS power handling: 670W/625W
• Max. power handling: 2000W/1900W
• Linear transducer technology
• Solid aluminum cone heat sink
• Single 4Ω compound linear voice coil
• 200oz dual stacked magnet
• Aluminum cast basket
• Aluminum cast magnet heat sink
• SBR synthetic rubber surround
• Polyester-cotton spider
• QCA (Quick Change Assembly) technology
• 10awg push and screw terminal
Linear Voice Coil
BI vs. x
20
Linear Transducer speaker'
18
16 flat BL (force) vs.
14
displacement (travel)
12
10
graph compared to a
8
conventional speaker's
6
4
bell-shaped curve.
2
0
-50 -40 -30 -20 -10 0 10 2030 40 50
dispiacement (mm)
Bi fit between -24mm and 28mm
SW9102 SW8200
10˝ 12˝
26Hz 16Hz
0.47 0.42
4Ω + 4Ω 3Ω
2.10 Cuft 8.27 Cuft
1.50˝ 1.50˝
750W 670W
1500W 2000W
Final appearance may be changed.
SW8000
10˝
18Hz
0.40
3Ω
3.75 Cuft
1.50˝
625W
1900W
29
