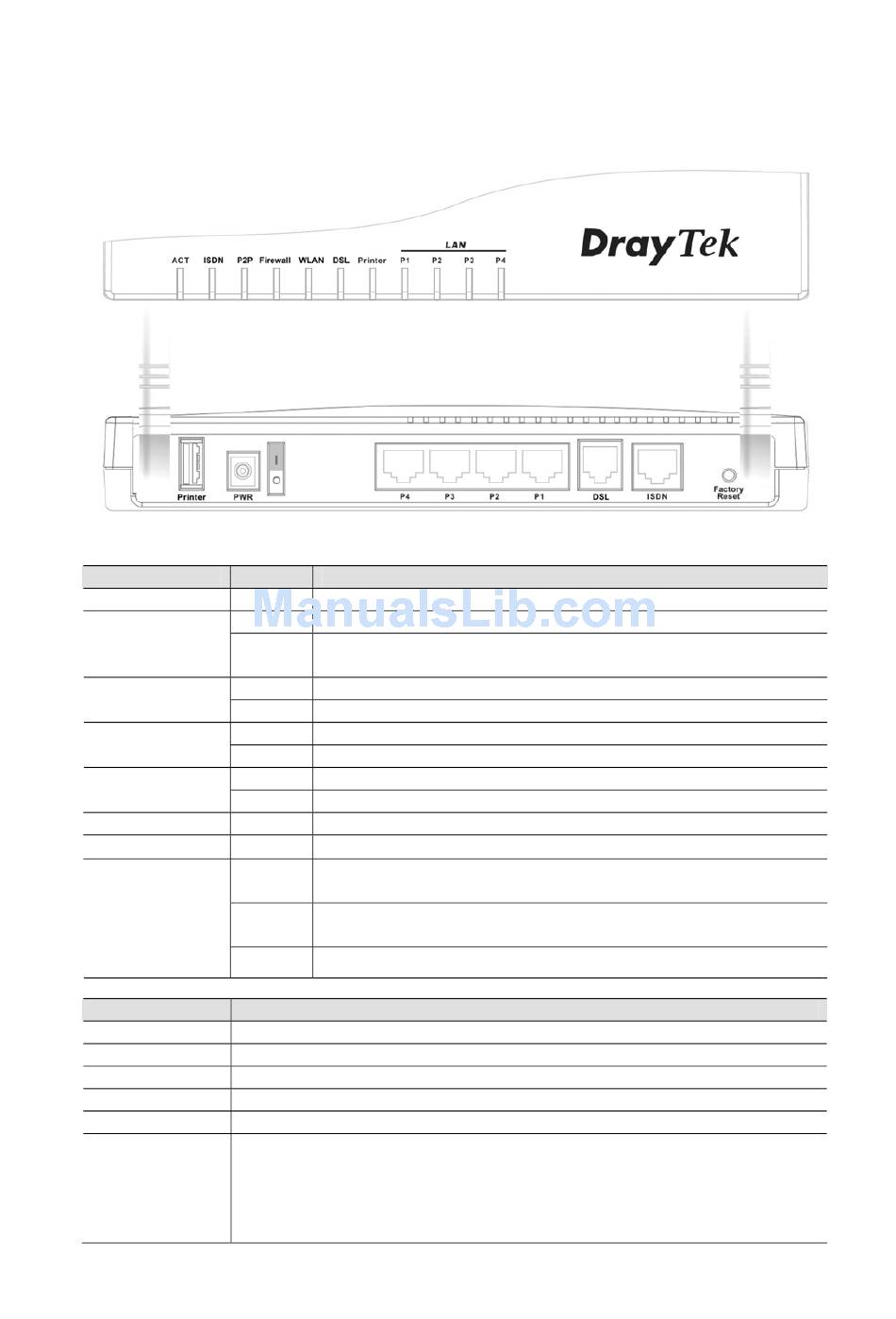

1.3 Front Panel LEDs and Rear Panel Interfaces

1.3.1 Vigor2800Gi
LED Status
ACT (Activity) blinking The router is powered on and running properly.
on
ISDN
blinking A successful remote connection on the ISDN BRI B1/B2
P2P on
blinking When starting to prohibit P2P data
Firewall on
blinking When encountered DoS attacks.
WLAN on
blinking Ethernet packets are transmitting over wireless LAN.
DSL on
Printer on
orange
LAN
(P1, P2, P3,
P4)
green
blinking Ethernet packets are transmitting.
Interface Description
Printer Connect to the USB printer.
PWR Connect the included power adapter to the power outlet.
P1, P2, P3, P4 Connect to the local networked devices.
DSL Connect the ADSL,ADSL2/2+ line to access the Internet.
ISDN Connect to the NT1 (or NT1+) box provided by ISDN service provider.
Factory Reset Restore the default settings.
Usage: Turn on the router (ACT LED is blinking), press the hole and
keep for more than 5 seconds. When the ACT LED begins to blink
rapidly, release the button. Then the router will restart with the factory
default configuration.
Explanation
The ISDN network is correctly setup.
channel.
The P2P function is active
The DoS function is enabled.
The wireless LAN function is enabled.
The ADSL,ADSL2/2+ line is showtime.
The USB interface printer is ready.
A normal 10Mbps connection is through its corresponding
port.
A normal 100Mbps connection is through its corresponding
port.
