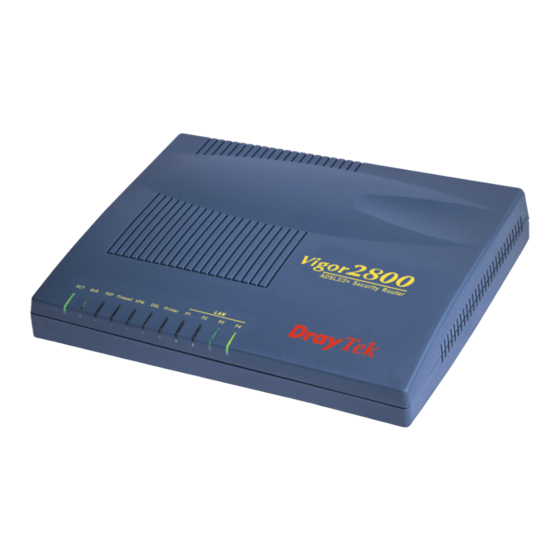

Draytek Vigor 2800 Quick Start Manual
  1. Manuals
  2. Brands
  3. Draytek Manuals
  4. Network Router
  5. Vigor 2800
  6. Quick start manual
Draytek Vigor 2800 Quick Start Manual

Draytek Vigor 2800 Quick Start Manual

Vigor2800 series adsl2/2+ router
Hide thumbs Also See for Vigor 2800:
Table of Contents

Advertisement

Quick Links

See also: Quick Start Manual

Advertisement

Table of Contents
loading

Related Manuals for Draytek Vigor 2800

Summary of Contents for Draytek Vigor 2800

  • Page 2: Copyright Information

    Vigor2800 Series Quick Start Guide Copyright Information Copyright Copyright 2005 All rights reserved. This publication contains Declarations information that is protected by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders.
  • Page 3 Alternatively, fill in the Owner registration card and mail it to the address found on the reverse side of the card. Due to the continuous evolution of DrayTek ADSL & Router Firmware & Tools Updates technology, all routers will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.

  • Page 4: European Community Declarations

    Address: No. 26, Fu Shing Road, HuKou County, HsinChu Industrial Park, Hsin-Chu, Taiwan 303 Product: Vigor2800 Series ADSL2/2+ Routers DrayTek Corp. declares that Vigor2800 series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE Directive 1999/5/EEC.

  • Page 5: Regulatory Information

    Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 6: Table Of Contents

    Table of Contents 1. Introduction ……………………………………….………………….……………. 1 1.1 Brief Overview…………………………………………………………..……… 1.2 Specifications………………………………………………………..…………. 3 1.3 Front Panel LEDs and Rear Panel Interfaces………………..……….…… 5 1.4 Package Contains……………………………………….…………..…………. 9 2. Quick Install Your Vigor2800 Series Router 2.1 Hardware Installation……………………………….……………..………….. 10 2.2 Configure Your Router via Quick Start Wizard…….……………..………. 11 3.

  • Page 7: Introduction

    1. Introduction Highlights Easy Internet-sharing of your broadband connection Robust firewall to help protect your network from external attacks For G models: Wireless LAN with data rate up to 108Mbps using Super G technology Secure connection with advanced WPA2 encryption and authentication Model comparison chart: ADSL2/2+ Router...

  • Page 8: Brief Overview

    1.1 Brief Overview Targeting requirement for residential, SOHO (Small Office and Home Office) and business users, the Vigor2800 series are ADSL2/2+ enabled integrated access device. With downstream speed up to 12Mbps (ADSL2) or 24Mbps (ADSL2+), the Vigor2800 series provide exceptional bandwidth* for Internet access.

  • Page 9: Specifications

    1.2 Specifications For Vigor2800 G models Wireless Access Point IEEE802.11b/g compliant 64/128-bit WEP WPA/WPA2(IEEE802.11i) 802.1x authentication with RADIUS client VPN over WLAN Wireless client list Hidden SSID MAC address access control Access point discovery Wireless VLAN* Wireless LAN isolation Wireless client isolation Wireless rate-control* WDS (Wireless Distribution System)
  • Page 10 Up to 32 VPN tunnels Supported protocol: PPTP, IPSec, L2TP, L2TP over IPSec DHCP over IPSec(*) Encryption: AES, MPPE and hardware-based DES/3DES Authentication: MD5, SHA-1 IKE authentication: pre-shared key and digital signature(X.509)* LAN-to-LAN, Teleworker-to-LAN Firewall Facilities IM/P2P blocking Multi-NAT, DMZ host, port-redirect/open port Rule-based packet filtering Stateful packet inspection...

  • Page 11: Front Panel Leds And Rear Panel Interfaces

    1.3 Front Panel LEDs and Rear Panel Interfaces 1.3.1 Vigor2800Gi Status Explanation ACT (Activity) blinking The router is powered on and running properly. The ISDN network is correctly setup. ISDN blinking A successful remote connection on the ISDN BRI B1/B2 channel.
  • Page 12 1.3.2 Vigor2800G Status Explanation ACT (Activity) blinking The router is powered on and running properly. The QoS function is active. The P2P function is active blinking When starting to prohibit P2P data Firewall The DoS function is enabled. blinking When encountered DoS attacks. WLAN The Wireless LAN function is enabled.
  • Page 13 1.3.3 Vigor2800i Status Explanation ACT (Activity) blinking The router is powered on and running properly. ISDN The ISDN network is correctly setup. blinking A successful remote connection on the ISDN BRI B1/B2 channel. The P2P function is active blinking When starting to prohibit P2P data The DoS function is enabled.
  • Page 14 1.3.4 Vigor2800 Status Explanation ACT (Activity) blinking The router is powered on and running properly. The QoS function is active. The P2P function is active blinking When starting to prohibit P2P data Firewall The DoS function is enabled. blinking When encountered DoS attacks. The VPN function is active.

  • Page 15: Package Contains

    1.4 Package Contains Quick Start Guide UK-type power adapter EU-type power adapter USA/Taiwan-type power AU/NZ-type power adapter adapter RJ-45 to RJ-45 (ISDN) for RJ-45 Cable (Ethernet) Vigor2800 i models RJ-11 Cable (Annex A / B) RJ-11 to RJ-45 (Annex B) RJ-11 Cable (PSTN line) Antennas for V2800 G models...

  • Page 16: Quick Install Your Vigor2800 Series Router

    2. Quick Install Your Vigor2800 Series Router 2.1 Hardware Installation Before starting to configure the router, you have to connect your devices correctly. 1. Connect the DSL interface to the external ADSL splitter with an ADSL line cable. 2. Connect one port of 4-port switch to your computer with a RJ-45 cable. 3.

  • Page 17: Configure Your Router Via Quick Start Wizard

    2.2 Configure Your Router via Quick Start Wizard Introduction The Quick Start Wizard is designed for you to easily set up your broadband Internet access. You can directly access the Quick Start Wizard via Web Configurator. Configure Your Router via Quick Start Wizard First make sure your PC connects to router correctly.
  • Page 18 Now Quick Start Wizard is switched on. Enter login Step 3. click Next to continue. Select the appropriate Internet access type according to the information Step 4 from your ISP. Or Clicking “Auto detect” button also offers the related DSL parameters automatically. PPPoE/PPPoA is selected, please manually enter the Step 5 Username/Password provided by your ISP service provider.
  • Page 19 Review the summary of settings. Step 6 On the bottom of Web Configurator window, you can find messages showing the system interaction with you. “Ready” indicates the system is ready for you to input settings. “Settings Saved” means your settings are saved once you click “Finish” or “OK”...

  • Page 20: Wireless Lan Settings(For G Models)

    3. Wireless LAN Settings(for G models) Select from the menu of the Wireless LAN: Wireless LAN (The default value of Frequency Domain was set by factory depends on the reselling region.) Wireless Distribution System Wireless Distribution System(WDS) is an advanced technology to link 2 LANs or 2 WLANs through air, if router is set in Bridge Mode, or to extend a Wireless LAN coverage area, if router is set in Repeater Mode Example Application 1...

  • Page 21: General Settings

    3.1 General Settings Click General Settings to configure the Service Set Identifier (SSID) and wireless channel. 1. Enable Wireless LAN: Check the box to enable wireless function. 2. Mode: Select an appropriate wireless mode. The radio can support both IEEE802.11b, IEEE802.11g and Mixed Super G protocols simultaneously.

  • Page 22: Security Settings

    3.2 Security Click Security to configure the security options. 1. Mode: Select an appropriate encryption to improve the security and privacy of your wireless data packets. Disable WEP Only WEP/802.1x Only WEP or WPA/PSK WEP/802.1x or WPA/802.1x WPA/PSK Only Turn off the encryption mechanism. Accepts only WEP clients and the encryption key should be entered in WEP Key.

  • Page 23: Wds Settings

    WPA/802.1x Only 2. WPA: If you select WPA in Mode, then select the Type of WPA here. Type Pre-Shared Key(PSK) 3. WEP: 64-Bit 128-Bit To communicate, all wireless devices must support the same encryption bit size and have the same key. If WEP, only one key out of four preset keys can be selected at one time.
  • Page 24 Mode: Disable Bridge Repeater 1. Security Select an appropriate encryption to improve the security and privacy of your WDS data packets. Disable Pre-shared key 2. Access from local WLAN clients Tick to prohibit access from local WLAN clients. 3. Status Send a message to test the link.

  • Page 25: Trouble Shooting

    Are the Network Connection Settings on Your PC OK? The following example is based on Windows XP case. Regarding to the examples of other OSs, please refer to the similar steps or find support notes in www.draytek.com. 1. Go to Control Panel and then double-click on Network Connections.
  • Page 26 3. Select on Internet Protocol (TCP/IP) and then click Properties. 4. Select Obtain an IP address automatically and Obtain DNS server address automatically.

  • Page 27: Can You Ping The Router From Pc

    Step 3 Can You Ping the Router from PC? The default gateway IP address of the router is 192.168.1.1. Please check that if you can ping the router correctly. For Windows 1. Open the Command Prompt window (from start menu> Run ) 2.

  • Page 28: Are The Isp Settings Ok

    Step 4 Are the ISP Settings OK? Click Internet Access Setup group and then check whether the ISP settings are set correctly. For PPPoE/PPPoA Users 1. Check that if the Enable option is selected. 2. Verify if all parameters of DSL Modem Settings are entered with correct value which given by your ISP.

  • Page 29: Back To Factory Default Setting

    After restore the factory default setting, please repeat Step 1 to Step 4 to reinstall the router. Configure the router according to your recorded settings. If the router does not work correctly, please contact your dealer for help. For any further questions, please send e-mail to support@draytek.com...

This manual is also suitable for:

Vigor2800Vigor2800iVigor2800gVigor2800gi
