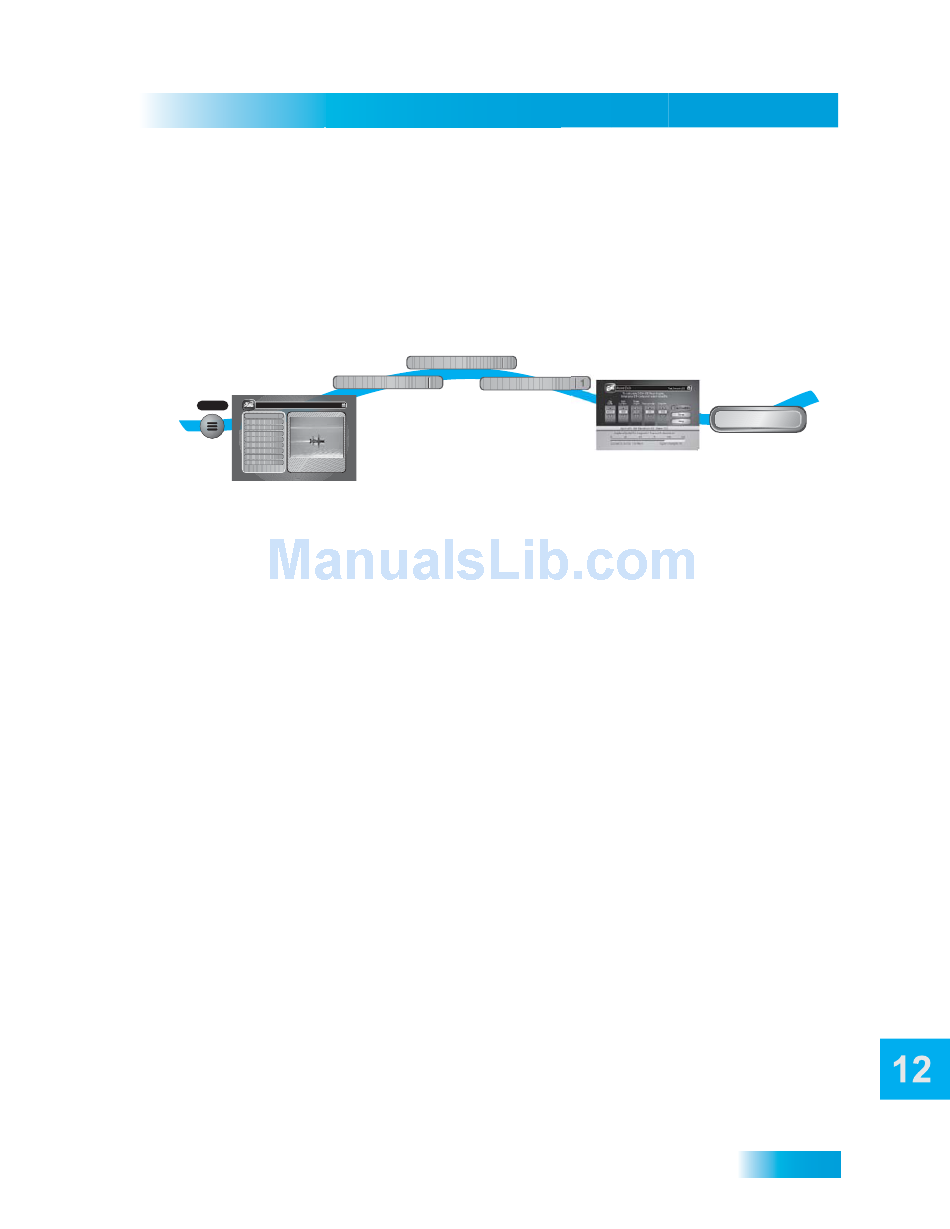

Point Dish and Check Switch

The Point Dish and Check Switch screens are helpful to the Customer Service
Representatives. You may be asked to display these screens when you call DISH
Network. Even though there are items that can be changed, only change them when
specifically directed by a Customer Service Representative.
1
System Setup
Select System
MENU
Main Menu
Thursday, January 20
1
114 E! 114 E! 6:25 pm
Program Guide 1
Themes & Search 2
Customer Support 3
Multimedia 4
Locks 5
Press System Setup 6
Daily Schedule 7
Preferences 8
Celebrity Homes
MENU
Cancel 0
5:30 pm - 7:00 pm NR
1
Press MENU.
2
Select System Setup.
3
Select Installation.
4
Select Point Dish. This screen shows you information to help maximize your satellite
signal. The bar at the bottom of the screen tells you the signal strength. Green is a good
signal, while red indicates the signal is not acceptable or is from the wrong satellite.
5
Select Check Switch to display the installation summary screen. The installation
summary screen tells you if you are receiving signals from the satellites and which multi-
dish switches you have installed, if any.
6
Select Test only if directed by the Customer Service Representative.
7
Select Done.
3
Select Installation
2 4
Installation 1
6
Point Dish
Select
Point Dish
Setup
Connections and Setup
Using Troubleshooting Tools
5-7
Point Dish
Tue, January 22 1
To calculate DISH 500 Peak Angles,
Enter your ZIP code and select satellite
Zip Dish Tuner
Code System Input Transponder Satellite
119 Check Switch
Azimuth:184 Elevation:43 Skew:101
Angles adjusted for magnetic / true north deviations
0 25 50 75 100 125
If you need to
Locked:EchoStar 119 West Signal strength: 95
run a check switch,
select Check Switch
117
