Ethernet Circuit Configurations
9.3.3 Hub and Spoke Ethernet Circuit Provisioning
This section provides steps for creating a hub and spoke Ethernet circuit configuration. The hub and
spoke configuration connects point-to-point circuits (the spokes) to an aggregation point (the hub). In
many cases, the hub links to a high-speed connection and the spokes are Ethernet cards.
illustrates a sample hub and spoke ring. Your network architecture may differ from the example.

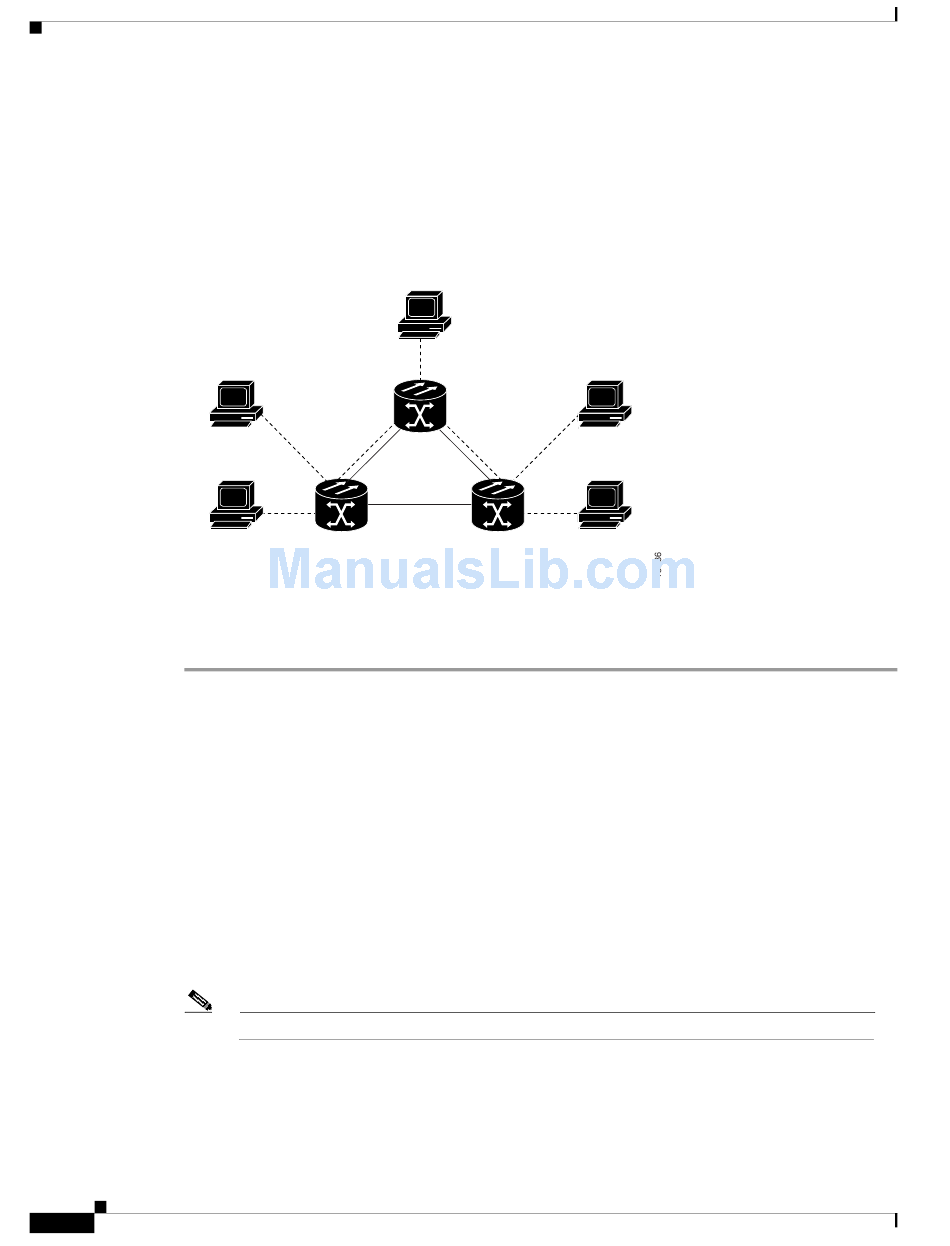

Figure 9-14 A Hub and Spoke Ethernet circuit
192.168.1.125
255.255.255.0
VLAN test
192.168.1.25
255.255.255.0
VLAN test
Procedure: Provision a Hub and Spoke Ethernet Circuit
Display CTC for one of the ONS 15454 Ethernet circuit endpoints.
Step 1
Double-click the Ethernet card that will create the circuit.
Step 2
Step 3
Click the Provisioning > Card tabs.
Step 4
Under Card Mode, check the Single-card EtherSwitch checkbox.
If Single-card EtherSwitch is not checked, check it and click Apply.
Step 5
Navigate to the other ONS 15454 endpoint and repeat Steps 2 – 4.
Step 6
Display the node view or network view.
Step 7
Click the Circuits tab and click Create.
The Circuit Creation (Circuit Attributes) dialog box opens
Step 8
In the Name field, type a name for the circuit.
From the Type pull-down menu, choose STS.
Step 9
Note
Choose the size of the circuit from the Size pull-down menu.
Step 10
Verify that the Bidirectional checkbox is checked and click Next.
Step 11
The Circuit Creation (Circuit Source) dialog box opens.
Cisco ONS 15454 Installation and Operations Guide
9-14
ONS 15454
#2
The types VT and VT Tunnel do not apply to Ethernet circuits.
192.168.1.75
255.255.255.0
VLAN test
192.168.1.100
255.255.255.0
VLAN test
ONS 15454
#1
ONS 15454
192.168.1.50
#3
255.255.255.0
VLAN test
(Figure 9-7 on page
Chapter 9
Ethernet Operation
Figure 9-14
9-8).
November 2001
