Viewing the ONS 15454 Routing Table

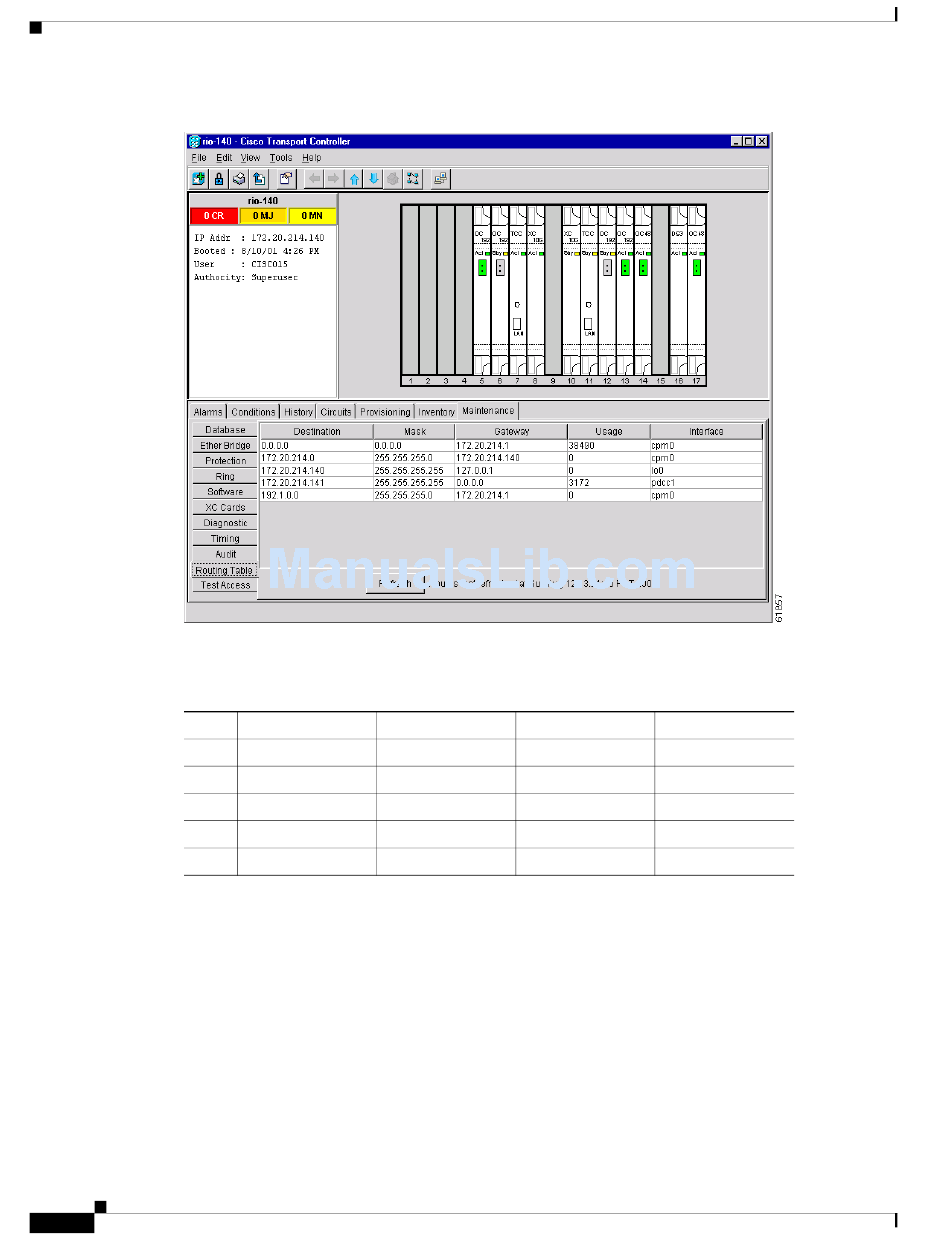

Figure 4-11 Viewing the ONS 15454 routing table

Table 4-2
Table 4-2
Entry
1
2
3
4
5
Entry #1 shows the following:
Destination (0.0.0.0) is the default route entry. All undefined destination network or host entries on
•
this routing table will be mapped to the default route entry.
Mask (0.0.0.0) is always 0 for the default route.
•
Gateway (172.20.214.1) is the default gateway address. All outbound traffic that cannot be found in
•
this routing table or is not on the node's local subnet will be sent to this gateway.
Interface (cpm0) indicates that the ONS 15454 Ethernet interface is used to reach the gateway.
•
Entry #2 shows the following:
Destination (172.20.214.0) is the destination network IP address.
•
Cisco ONS 15454 Installation and Operations Guide
4-16
shows sample routing entries for an ONS 15454.
Sample Routing Table Entries
Destination Mask
0.0.0.0 0.0.0.0
172.20.214.0 255.255.255.0
172.20.214.92 255.255.255.255
172.20.214.93 255.255.255.255
172.20.214.94 255.255.255.255
Gateway Interface
172.20.214.1 cpm0
172.20.214.92 cpm0
127.0.0.1 lo0
0.0.0.0 pdcc0
172.20.214.93 pdcc0
