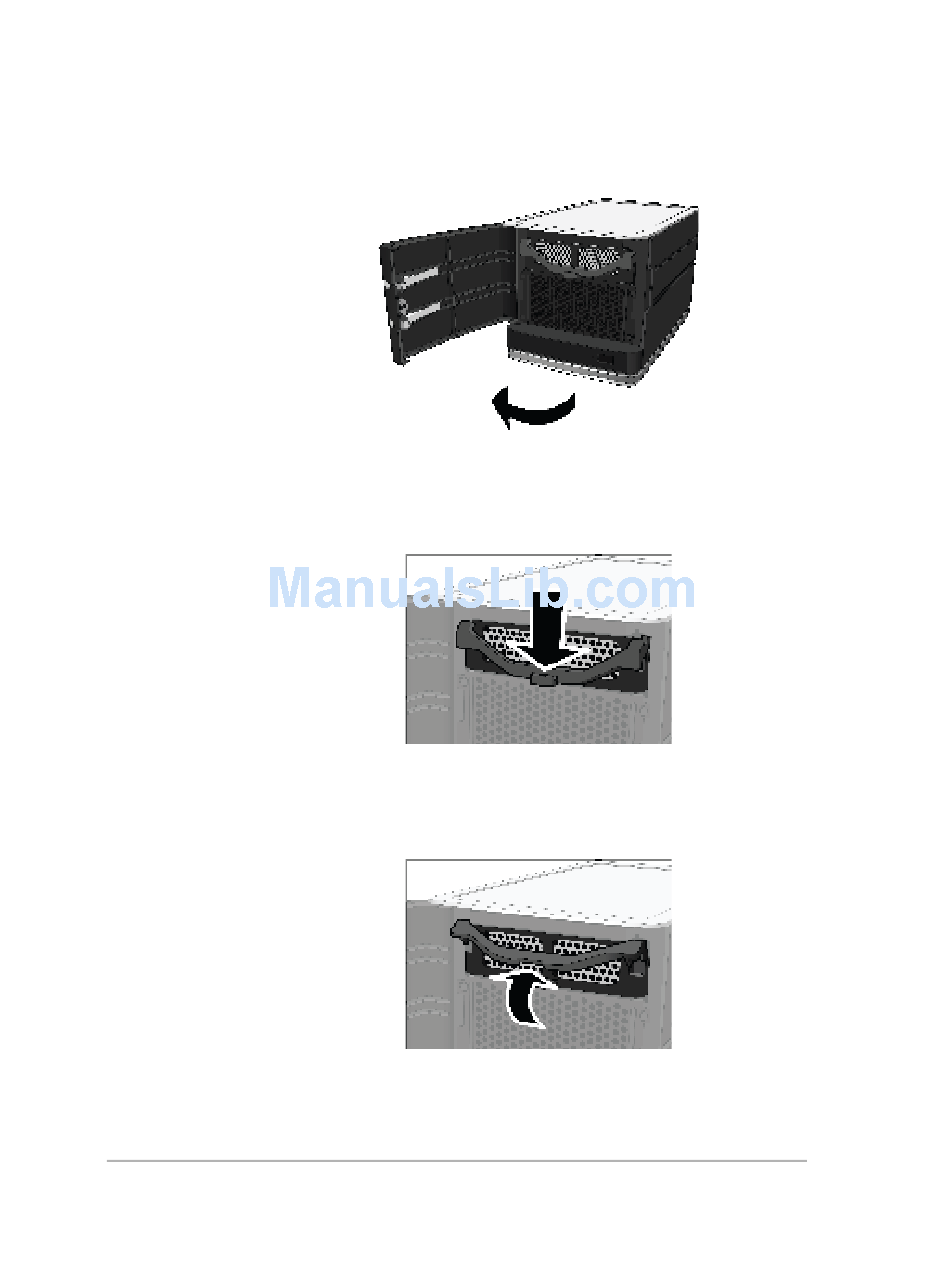

Figure 22: Opening the door
Press the lever to unlock the handle.
3
Figure 23: Unlocking the hard-drive tray
Lift the handle all the way up.
4
Figure 24: Lifting the handle
Gently pull the hard-drive tray from the expansion bay.
5
10-
