Packet Operation - Yaesu FT DX 9000 CONTEST Operation Manual

P P P P P O O O O O
A A A A A CKET CKET CKET CKET PERA PERA PERA TION TION TION TION
CKET PERA PERA TION

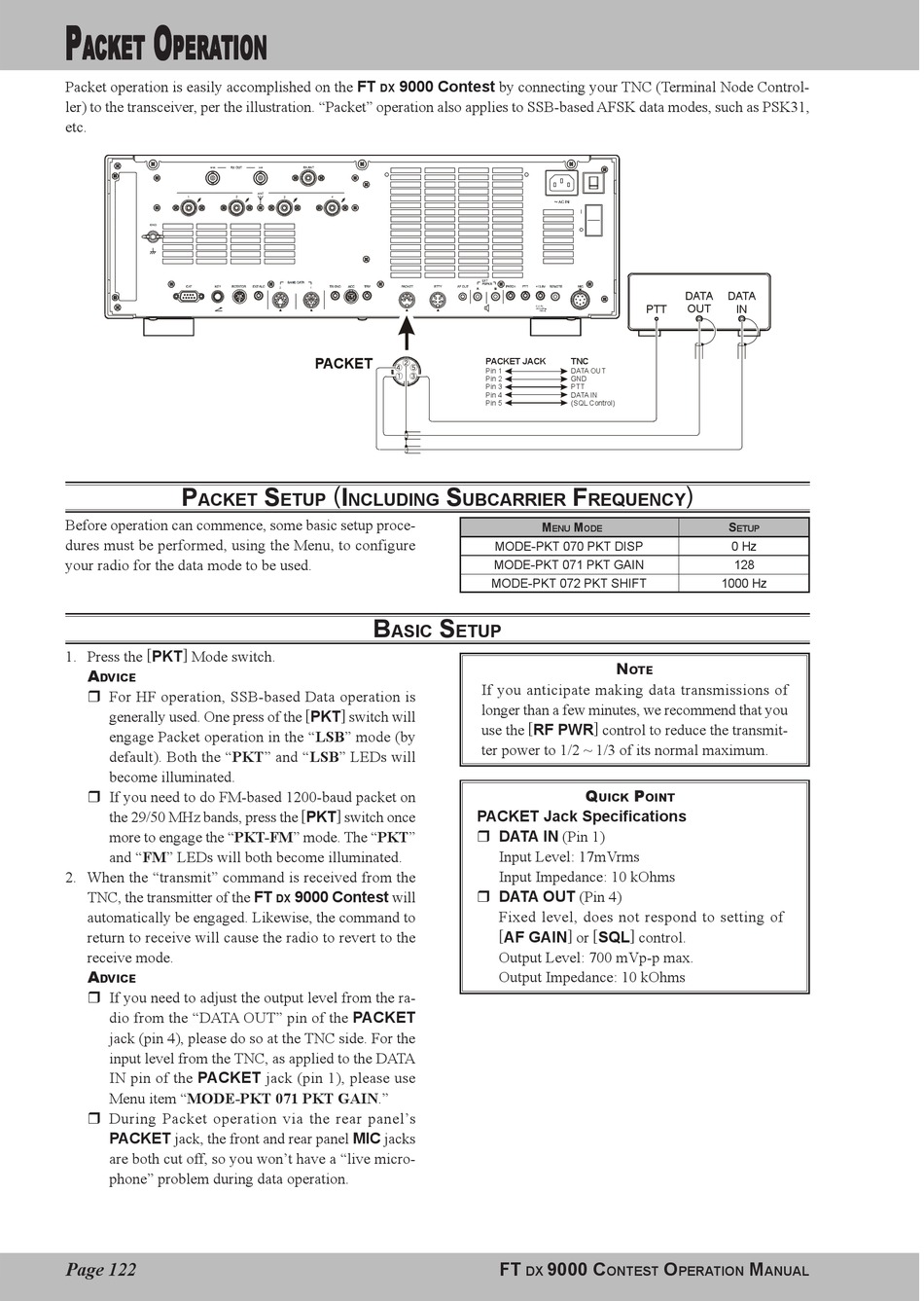

Packet operation is easily accomplished on the FT
ler) to the transceiver, per the illustration. "Packet" operation also applies to SSB-based AFSK data modes, such as PSK31,
etc.
P
ACKET
Before operation can commence, some basic setup proce-
dures must be performed, using the Menu, to configure
your radio for the data mode to be used.
1. Press the [ PKT ] Mode switch.
A
DVICE
For HF operation, SSB-based Data operation is
generally used. One press of the [ PKT ] switch will
engage Packet operation in the "LSB" mode (by
default). Both the "PKT" and "LSB" LEDs will
become illuminated.
If you need to do FM-based 1200-baud packet on
the 29/50 MHz bands, press the [ PKT ] switch once
more to engage the "PKT-FM" mode. The "PKT"
and "FM" LEDs will both become illuminated.
2. When the "transmit" command is received from the
TNC, the transmitter of the FT
automatically be engaged. Likewise, the command to
return to receive will cause the radio to revert to the
receive mode.
A
DVICE
If you need to adjust the output level from the ra-
dio from the "DATA OUT" pin of the PACKET
jack (pin 4), please do so at the TNC side. For the
input level from the TNC, as applied to the DATA
IN pin of the PACKET jack (pin 1), please use
Menu item "MODE-PKT 071 PKT GAIN."
During Packet operation via the rear panel's
PACKET jack, the front and rear panel MIC jacks
are both cut off, so you won't have a "live micro-
phone" problem during data operation.
Page 122
9000 Contest by connecting your TNC (Terminal Node Control-
DX
2 1
PACKET
②
④ ⑤
① ③
( I
S
ETUP NCLUDING
B
ASIC
9000 Contest will
DX
PACKET JACK TNC
Pin 1 DATA OUT
Pin 2 GND
Pin 3 PTT
Pin 4 DATA IN
Pin 5 (SQL Control)
S F
UBCARRIER REQUENCY
M M
ENU ODE
MODE-PKT 070 PKT DISP
MODE-PKT 071 PKT GAIN
MODE-PKT 072 PKT SHIFT
S
ETUP
If you anticipate making data transmissions of
longer than a few minutes, we recommend that you
use the [ RF PWR ] control to reduce the transmit-
ter power to 1/2 ~ 1/3 of its normal maximum.
Q
UICK
PACKET Jack Specifications
DATA IN (Pin 1)
Input Level: 17mVrms
Input Impedance: 10 kOhms
DATA OUT (Pin 4)
Fixed level, does not respond to setting of
[ AF GAIN ] or [ SQL ] control.
Output Level: 700 mVp-p max.
Output Impedance: 10 kOhms
FT 9000 C
DX ONTEST
DATA DATA
OUT
PTT IN
)
S
ETUP
0 Hz
128
1000 Hz
N
OTE
P
OINT
O M
PERATION ANUAL
