Replacing The 3 1/2-Inch Drive Bracket - NEC POWERMATE VE - SERVICE MANUAL 08-1996 Service Manual

Tabs
(behind front panel)
3. Continue to Step 5 in "Replacing the 3 1/2-Inch Drive Bracket."

Replacing the 3 1/2-Inch Drive Bracket

When replacing the 3 1/2-inch drive bracket, take care to prevent pulling and loosening the
cable connections.
1. Place the 3 1/2-inch drive bracket in the 3 1/2-inch device bay.
2. Slide the 3 1/2-inch drive bracket toward the front of the chassis so that the tabs
secure the bracket.
Front Panel

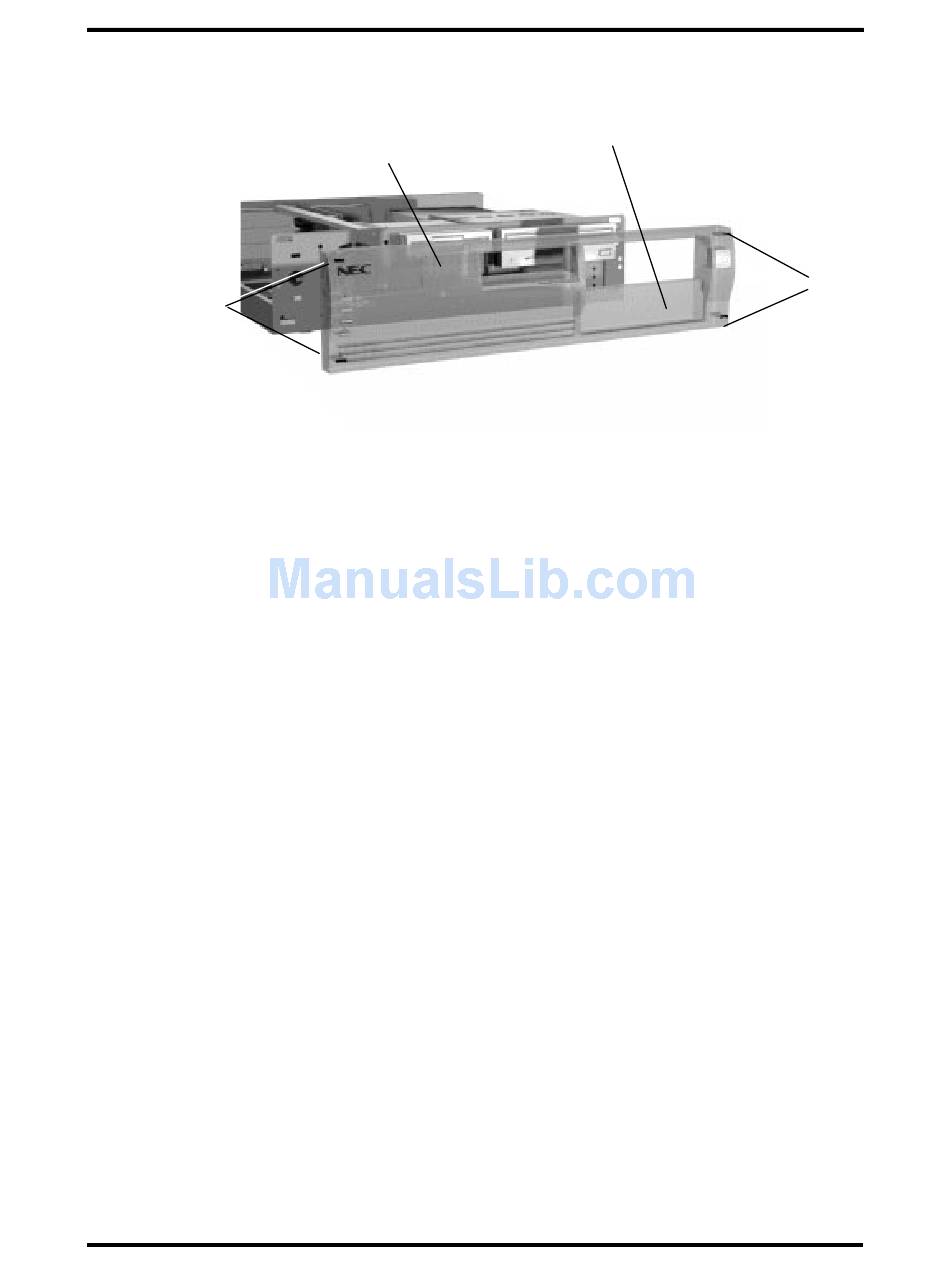

Figure 3-25 Aligning the Front Panel
Option Installation
Blank Panel
3-27
Tabs
(behind
