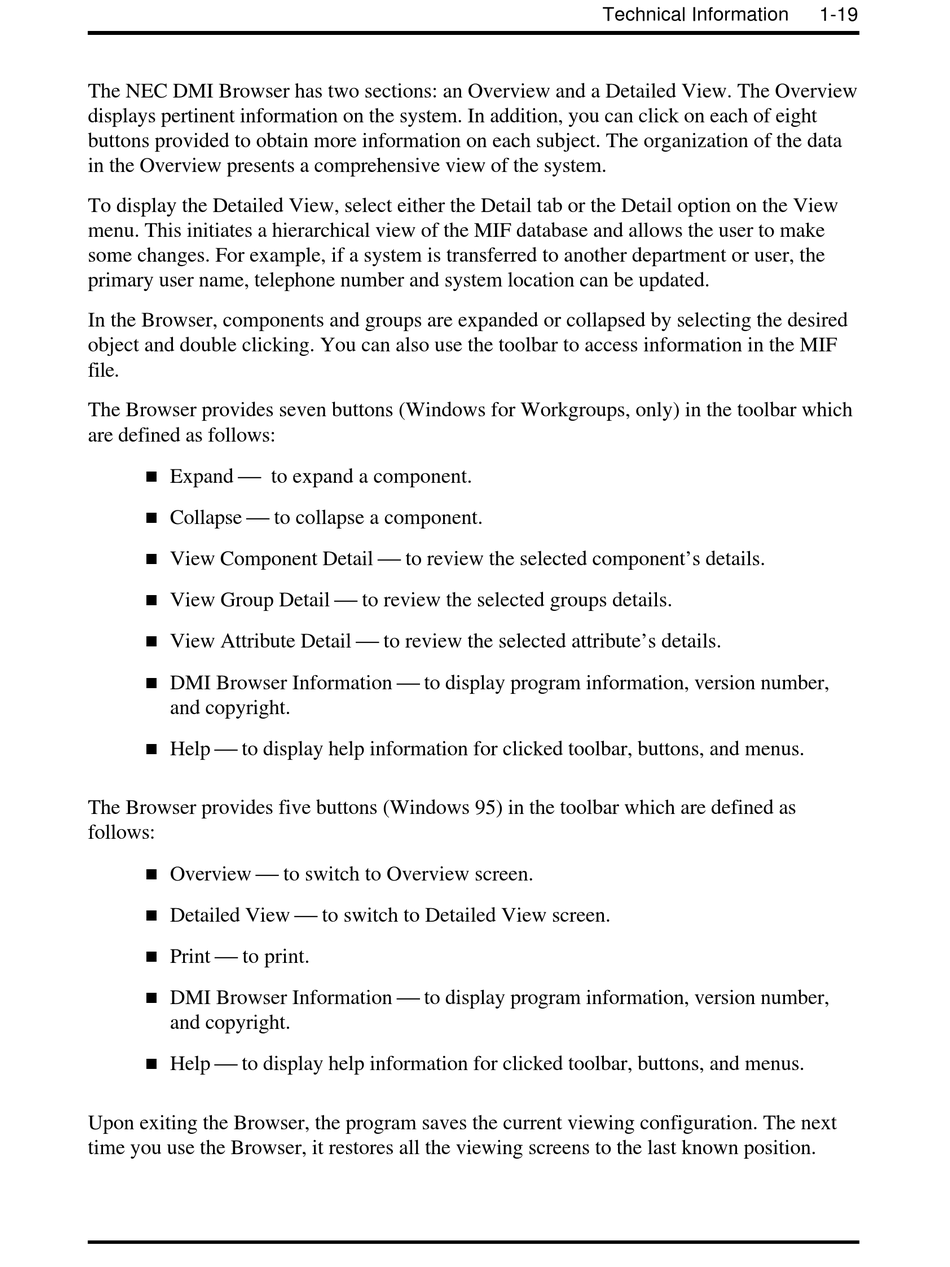

The NEC DMI Browser has two sections: an Overview and a Detailed View. The Overview
displays pertinent information on the system. In addition, you can click on each of eight
buttons provided to obtain more information on each subject. The organization of the data
in the Overview presents a comprehensive view of the system.
To display the Detailed View, select either the Detail tab or the Detail option on the View
menu. This initiates a hierarchical view of the MIF database and allows the user to make
some changes. For example, if a system is transferred to another department or user, the
primary user name, telephone number and system location can be updated.
In the Browser, components and groups are expanded or collapsed by selecting the desired
object and double clicking. You can also use the toolbar to access information in the MIF
file.
The Browser provides seven buttons (Windows for Workgroups, only) in the toolbar which
are defined as follows:
T
Expand
T
Collapse
T
View Component Detail
T
View Group Detail
T
View Attribute Detail
T
DMI Browser Information
and copyright.
T
Help to display help information for clicked toolbar, buttons, and menus.
The Browser provides five buttons (Windows 95) in the toolbar which are defined as
follows:
T
Overview
T
Detailed View
T
Print to print.
T
DMI Browser Information
and copyright.
T
Help to display help information for clicked toolbar, buttons, and menus.
Upon exiting the Browser, the program saves the current viewing configuration. The next
time you use the Browser, it restores all the viewing screens to the last known position.
to expand a component.
to collapse a component.
to review the selected component's details.
to review the selected groups details.
to review the selected attribute's details.
to display program information, version number,
to switch to Overview screen.
to switch to Detailed View screen.
to display program information, version number,
Technical Information 1-19
