Locate the battery socket on the system board.
4.
Carefully lift the battery clip until there is enough space to slide the battery out of
the socket.

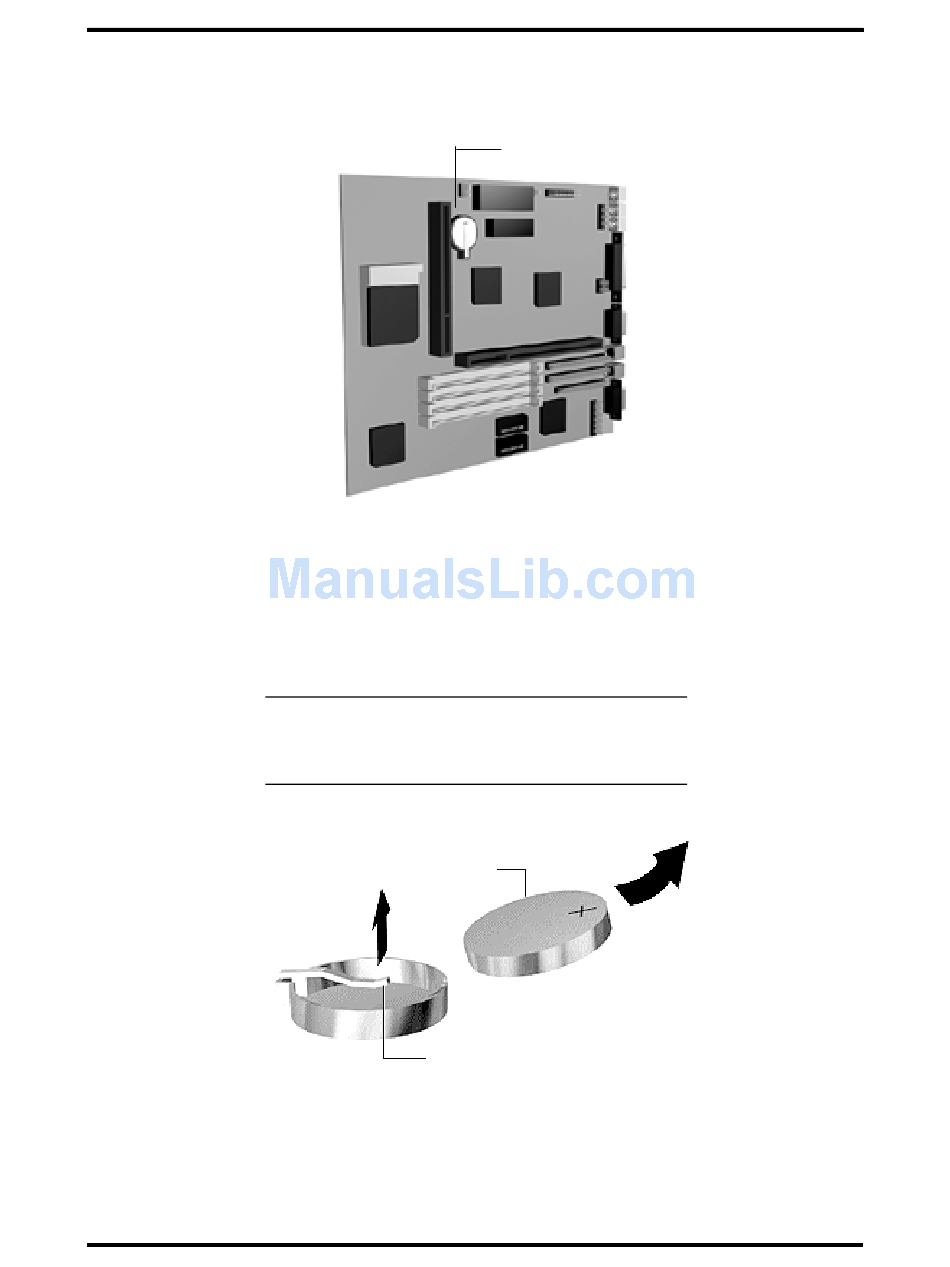

Figure 4-2 Battery Socket Location
CAUTION: To maintain a tight battery contact
with the socket, do not over-bend the battery
clip.
Battery
Clip
Figure 4-3 Battery Removal
Battery
