3-8 Option Installation

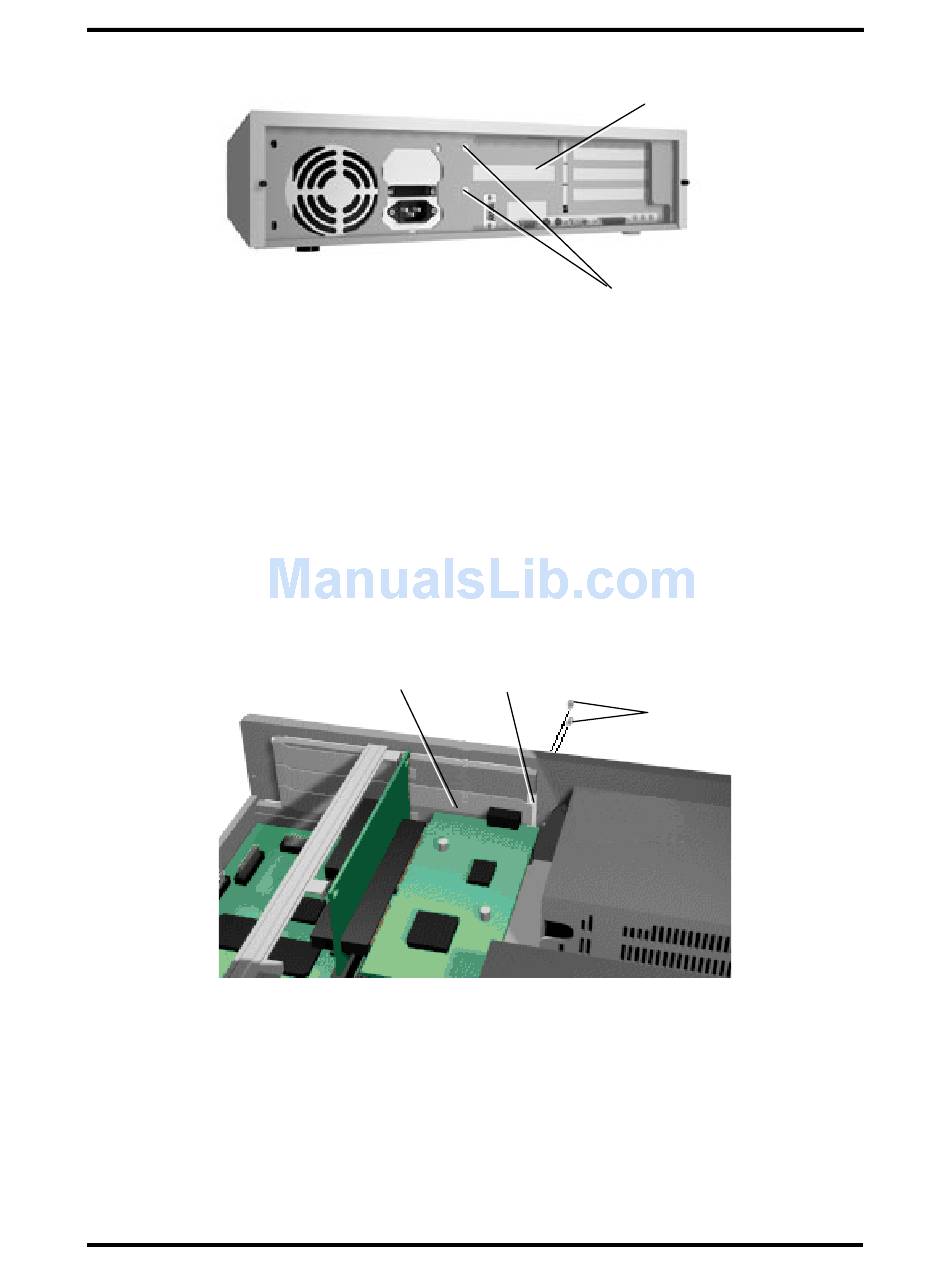

Figure 3-6 Removing the Slot Cover Support Screws
Hold the board by its edges, component side down and the bracket end facing the
4.
rear of the unit, and insert it into the expansion slot.
Press the board firmly into the expansion slot connector. Gently rock the board
from side-to-side to seat it into the connector.
5. Hold the slot cover support over the expansion board bracket and replace the two
screws removed earlier (see Figure 3-7). The slot cover support secures the
expansion board in place.
6. Attach any signal cables required by the expansion board.
7. Replace the system unit cover.
Expansion Board
Bracket
Figure 3-7 Attaching the Slot Cover Support
Slot Cover Support
Screws
Slot Cover
Support
Slot Cover
Screws
