Connecting The Microphone - NEC POWERMATE VE - SERVICE MANUAL 08-1996 Service Manual

3. If installing a multimedia system, connect the speakers as follows.
T
Attach the two-connector speaker cable to the left speaker and to the L
SPEAKER OUTPUT jack on the right speaker.
T
Locate the three-connector speaker cable.
Match and attach the color-coded red and white cable connectors to the color-
coded sockets on the right speaker.
Connect the other end of the cable to the line out jack on your system (see
Figure 2-3).
T
Connect the AC adapter to the right speaker and to a surge protector or wall
outlet.
T
Connect the microphone cable to the microphone in jack on your system.
T
Press the power switch. The power lamp lights.
T
Adjust the volume, treble, and bass controls as required.

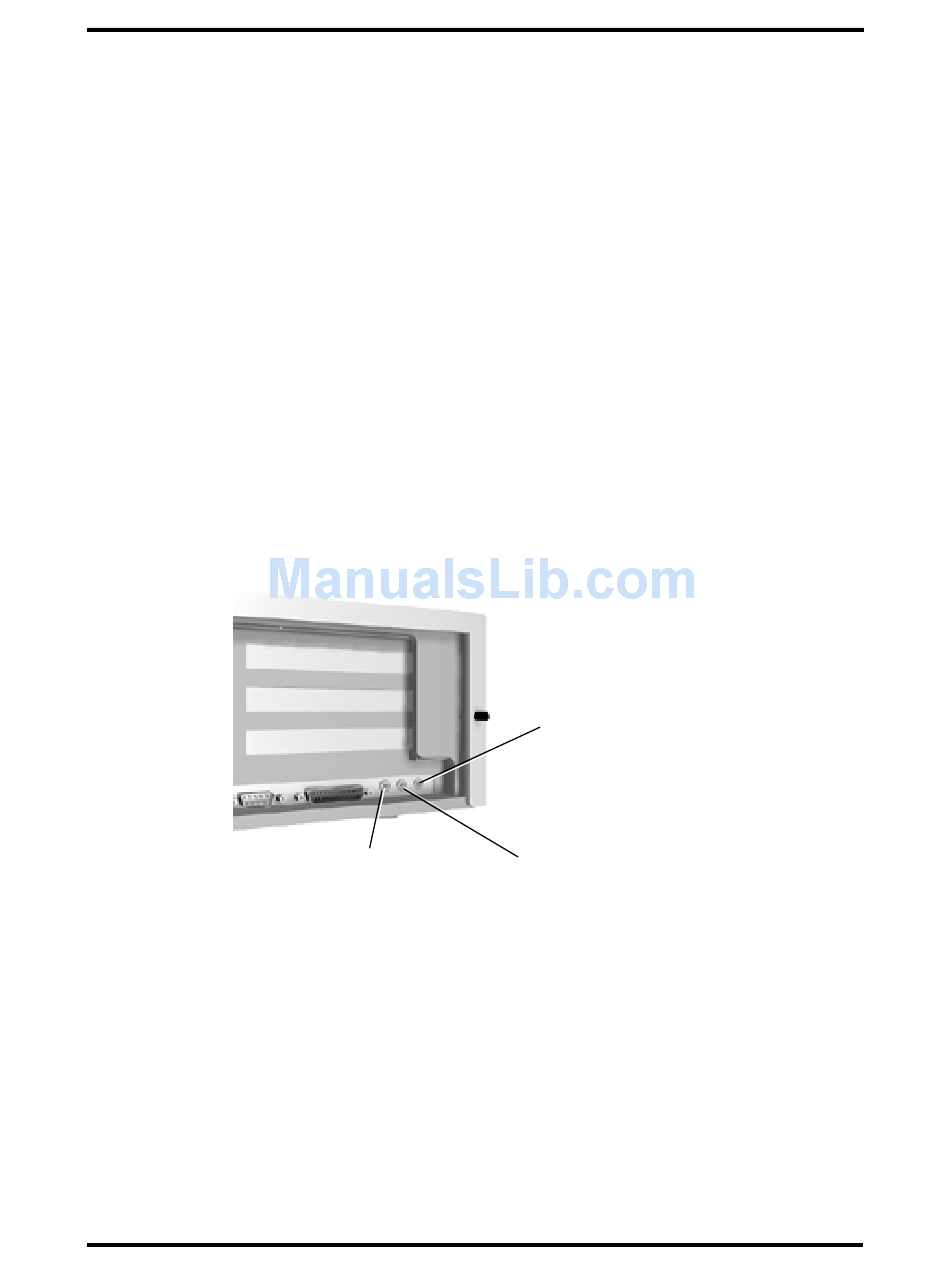

Figure 2-3 Connecting the Microphone
4. Press the power button (see Figure 2-4) to power-on the system. The power lamp
lights green, indicating that the system is in Full-Power On mode.
The system automatically goes into its Power-On Self-Test (POST), and checks
system components. One beep indicates that the system has successfully
completed its power-on test.
If a problem occurs, a series of beeps may sound. If this happens repeatedly after
powering on, power off and troubleshoot the system.
Line In Jack
Setup and Operation
Line Out Jack
Microphone In
Jack
2-3
