Front Panel Assembly Removal; Indicator Panel Connectors - NEC POWERMATE VE - SERVICE MANUAL 08-1996 Service Manual

Front Panel Assembly Removal

Remove the front panel assembly from the system unit as follows.
1. Remove the system unit cover and 3 1/2-inch drive bracket as previously de-
scribed.
Unplug the following cables from their connectors (see Figure 5-8).
2.
T
Power lamp (connector J6)
T
Hard disk drive busy lamp (connector J30)
T
Reset button (connector J25)
3. Remove the five front panel screws (see Figure 5-8).
Feed the two lamp and reset cables through the hole in the front of system unit
4.
chassis when removing the front panel assembly.
5. Remove the front panel by releasing the four tabs from the back of the front panel.
Separate the lamps and reset button from the front panel assembly by pulling them
6.
out from their socket in the panel assembly.
Front Panel
Tabs
(behind front panel)

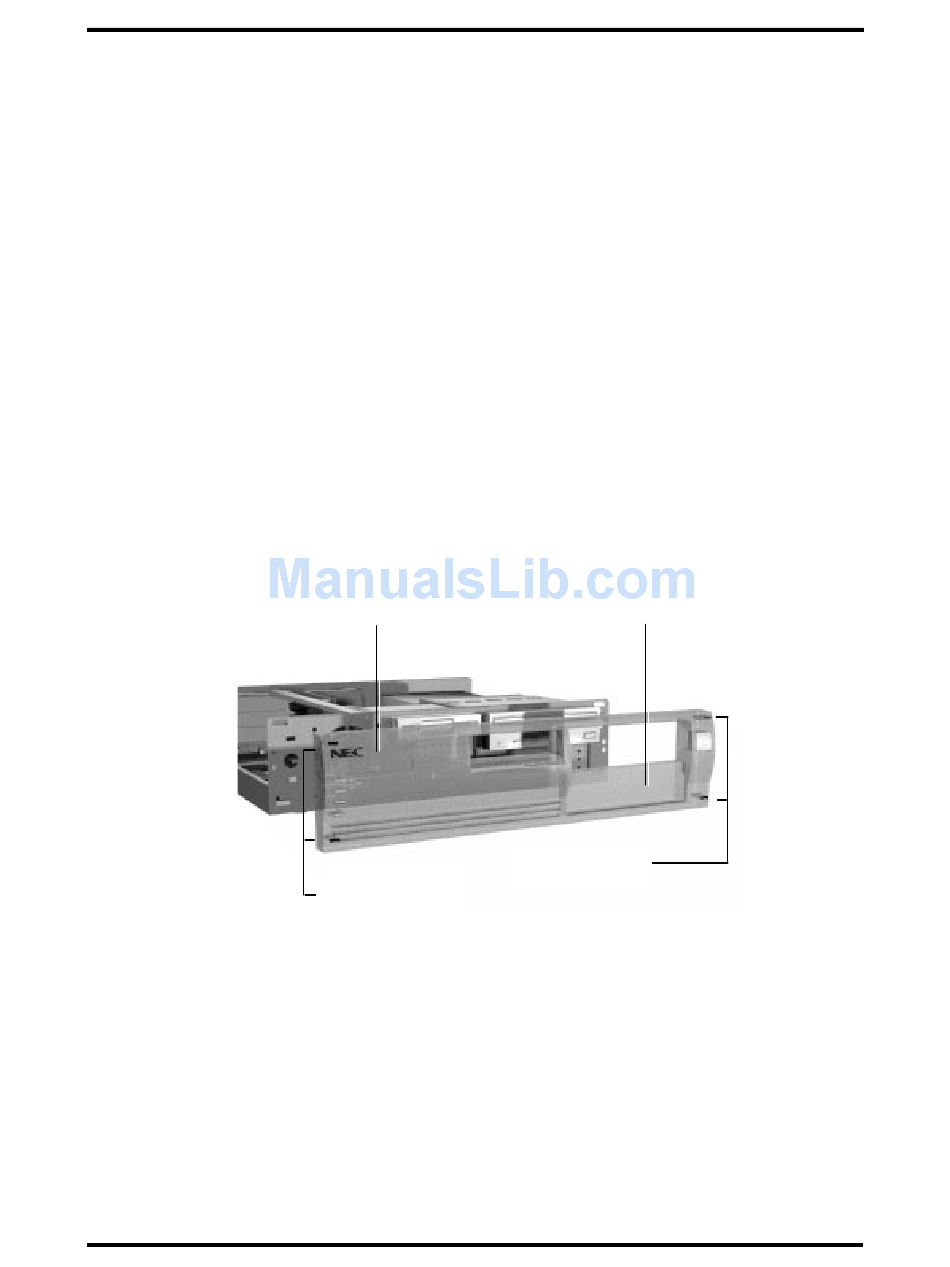

Figure 5-8 Indicator Panel Connectors
System Unit Repair
Blank Panel
Tabs
(behind front panel)
