Displaying Log Messages

Use the Logs page to scroll through the logged system and event messages. The
switch can store up to 2048 log entries in temporary random access memory (RAM;
i.e., memory flushed on power reset) and up to 4096 entries in permanent flash
memory.
Web – Click System, Log, Logs.
CLI – This example shows the event message stored in RAM.
Console#show log ram
[10]01/01/2001 01:58:20 snmp:"Login Success,user:admin,WEB,ip:192.168.0.4"
[9]01/01/2001 00:01:11 snmp:"Login Success,user:admin,Console,ip:192.168.0.2"
[8]01/01/2001 00:01:07 snmp:"ThermalRising: (1:2), threshold(80), current(222)"
[7]01/01/2001 00:01:07 snmp:"ThermalRising: (1:1), threshold(80), current(222)"
. .
.

Sending Simple Mail Transfer Protocol Alerts

To alert system administrators of problems, the switch can use SMTP (Simple Mail
Transfer Protocol) to send email messages when triggered by logging events of a
specified level. The messages are sent to specified SMTP servers on the network
and can be retrieved using POP or IMAP clients.
Command Attributes
• Admin Status – Enables/disables the SMTP function. (Default: Enabled)
• Email Source Address – Sets the email address used for the "From" field in alert
messages. You may use a symbolic email address that identifies the switch, or the
address of an administrator responsible for the switch.
• Severity – Sets the syslog severity threshold level (see table on page 4-30) used
to trigger alert messages. All events at this level or higher will be sent to the

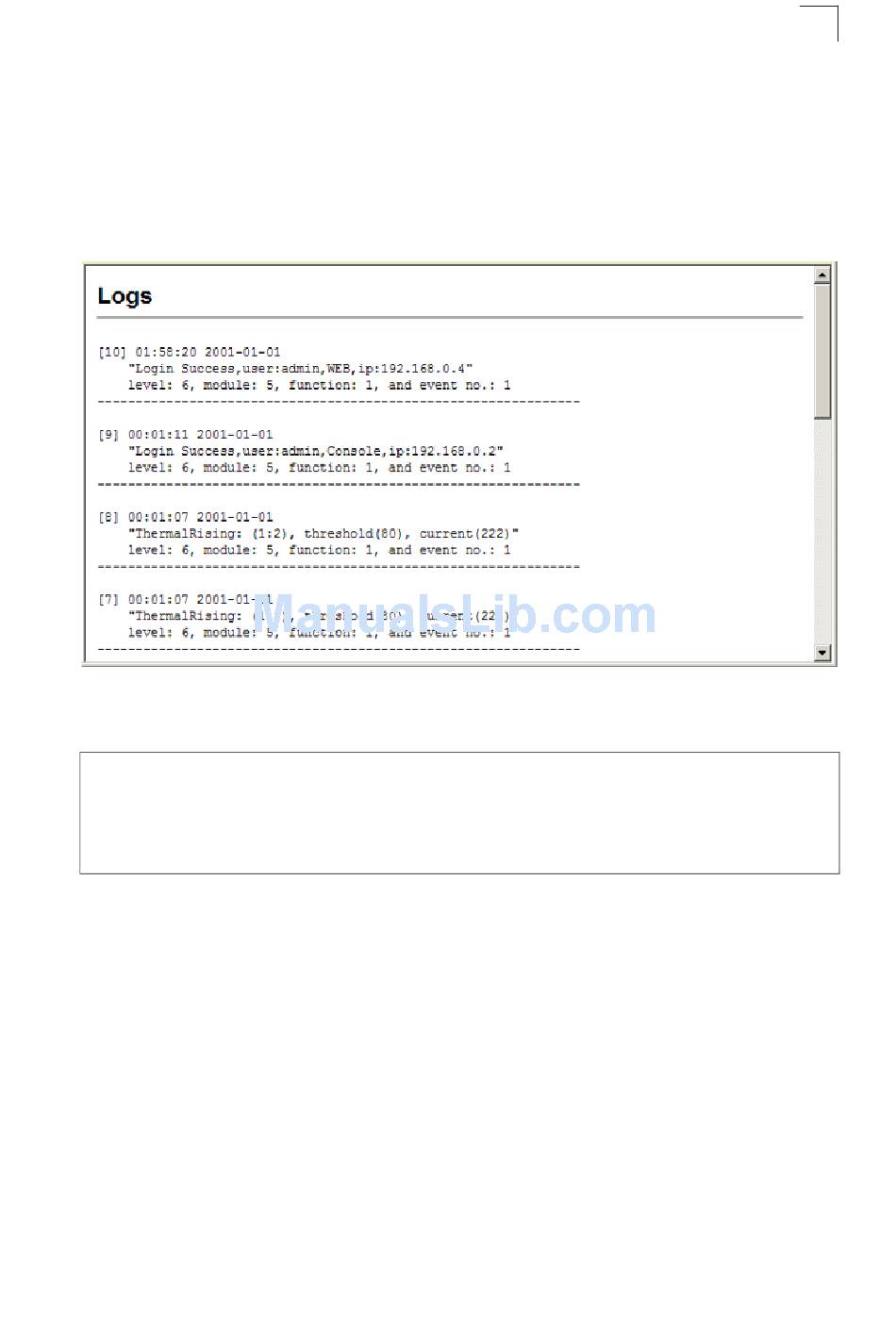

Figure 4-20 Displaying Logs
