BlackDiamond 6800 Series I/O Modules

MPLS Module

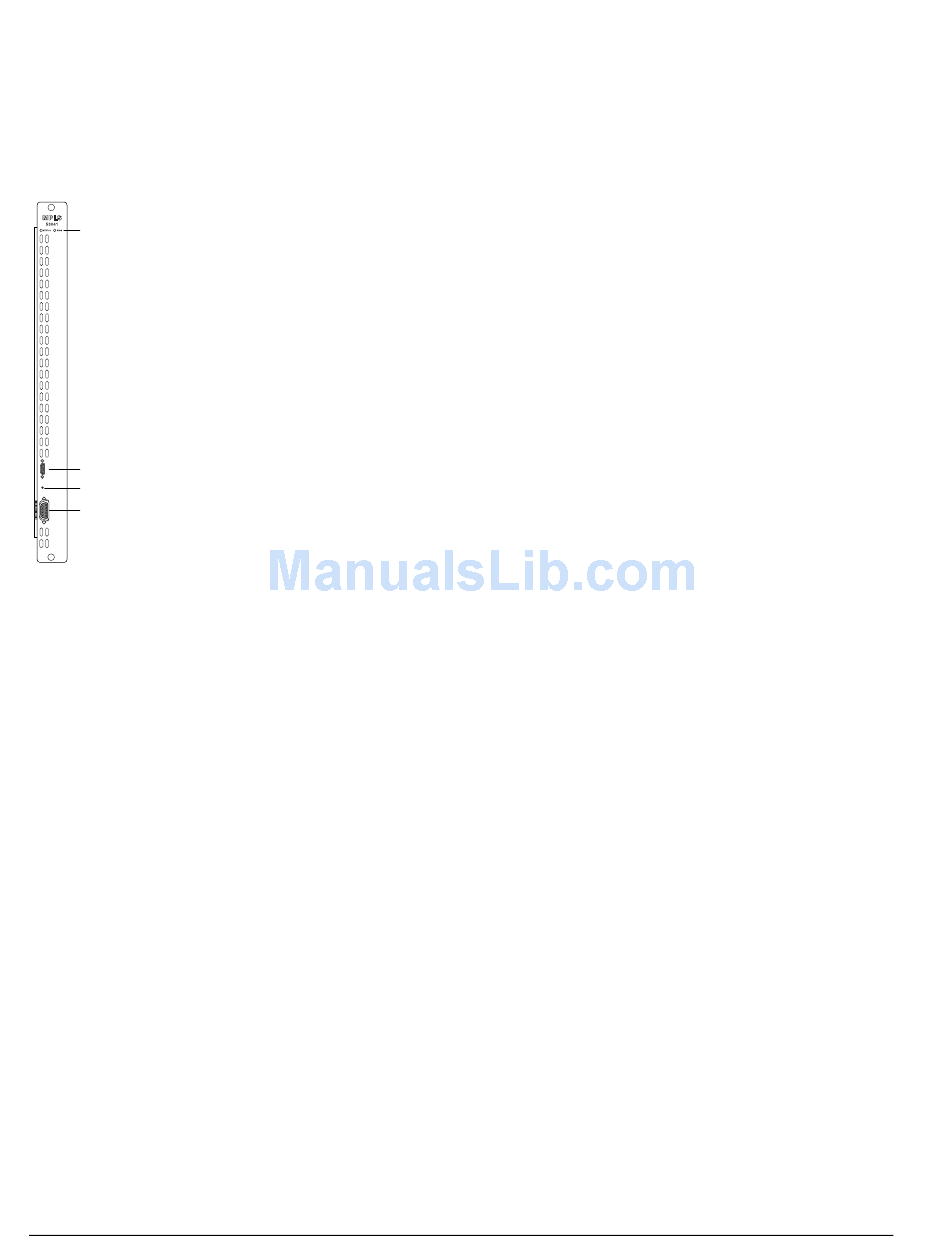

Figure 132 shows the MultiProtocol Label Switching (MPLS) module.
Figure 132: MultiProtocol Label Switching (MPLS) module
Module status LEDs
Service port
Reset
Service port
MPLS_13
The MultiProtocol Label Switching (MPLS) module contains a powerful set of network processors that
are specifically programmed to implement the MPLS function. The module has no external ports, but it
contains four full-duplex Gigabit Ethernet internal ports that connect to the BlackDiamond backplane
switch fabric. Each internal processor provides media-speed packet processing for two internal
full-duplex Gigabit Ethernet ports. The MPLS module operates in a one-armed fashion:
• Receiving frames from the switch fabric.
• Processing the frames.
• Transmitting the frames back into the switch fabric which then sends them to the appropriate I/O
module.
A maximum of four MPLS modules can be placed in a BlackDiamond 6800 series switch at any one
time.
Physical Description
This section describes the components and the LEDs of the MPLS module, as shown in Figure 133.
The MPLS module has the following key components:
• Two high-performance network processors
• A GPP subsystem
The network processors are high-performance, programmable devices that enhance the Extreme "i"
chipset to support expanded functionality, features, and flexibility.
The GPP subsystem handles system control and MPLS management functions. The GPP subsystem
resides outside the packet forwarding data path to optimize routing and billing performance.
