Page 1 Products Solutions Services BA02323D/06/EN/01.23-00 71637046 2024-03-15 Valid as of version 01.00.zz (Device firmware) Operating Instructions Proline Teqwave MW 500 Total solids measurement via microwave transmission Modbus RS485...
Page 2 • The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser sales organization will supply you with current information and updates to this manual. Endress+Hauser...
Page 3 Proline Teqwave MW 500 Modbus RS485 Table of contents Table of contents 6.1.3 Special mounting instructions ..25 About this document ....6 Mounting the measuring device .
Page 4 Table of contents Proline Teqwave MW 500 Modbus RS485 8.4.3 Connecting the device ... . 63 10.8.2 Write protection via write protection 8.4.4 Logging on ....65 switch .
Page 5 13.1.1 Exterior cleaning ....158 13.2 Endress+Hauser services ....158 Repair ......159 14.1 General notes .
Page 6 About this document Proline Teqwave MW 500 Modbus RS485 About this document Document function These Operating Instructions contain all the information required in the various life cycle phases of the device: from product identification, incoming acceptance and storage, to installation, connection, operation and commissioning, through to troubleshooting, maintenance and disposal.
Page 7 Proline Teqwave MW 500 Modbus RS485 About this document Symbol Meaning Light emitting diode is on. Light emitting diode is flashing. 1.2.4 Tool symbols Symbol Meaning Torx screwdriver Phillips head screwdriver Open-ended wrench 1.2.5 Symbols for certain types of information...
Page 8 For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. 1.3.1 Document function...
Page 9 Proline Teqwave MW 500 Modbus RS485 Safety instructions Safety instructions Requirements for the personnel The personnel for installation, commissioning, diagnostics and maintenance must fulfill the following requirements: ‣ Trained, qualified specialists must have a relevant qualification for this specific function and task.
Page 10 Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties.
Page 11 Proline Teqwave MW 500 Modbus RS485 Safety instructions Device-specific IT security The device offers a range of specific functions to support protective measures on the operator' s side. These functions can be configured by the user and guarantee greater in- operation safety if used correctly.
Page 12 Safety instructions Proline Teqwave MW 500 Modbus RS485 WLAN passphrase: Operation as WLAN access point A connection between an operating unit (e.g. notebook or tablet) and the device via the WLAN interface (→  69), which can be ordered as an optional extra, is protected by the network key.
Page 13 Proline Teqwave MW 500 Modbus RS485 Product description Product description The device consists of a transmitter and a sensor. The device is available as a remote version: The transmitter and sensor are mounted in physically separate locations. They are interconnected by connecting cables.
Page 14 Is the envelope present with accompanying documents? • If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center. • The Technical Documentation is available via the Internet or via the Endress+Hauser Operations app: Product identification→  15.
Page 15 • Enter the serial numbers from the nameplates in the Device Viewer (www.endress.com/deviceviewer): all the information about the device is displayed. • Enter the serial numbers from the nameplates into the Endress+Hauser Operations app or scan the DataMatrix code on the nameplate with the Endress+Hauser Operations app: all the information about the device is displayed.
Page 16 Incoming acceptance and product identification Proline Teqwave MW 500 Modbus RS485 4.2.2 Sensor nameplate Order code: Ser. no.: Ext. ord. cd.: Date: A0051311 Name of sensor Manufacturer address/certificate holder Order code Serial number (Ser. no.) Extended order code (Ext. ord. cd.) Full scale value;...
Page 17 Proline Teqwave MW 500 Modbus RS485 Incoming acceptance and product identification 4.2.3 Symbols on the device Symbol Meaning WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury. Please consult the documentation for the measuring device to discover the type of potential danger and measures to avoid it.
Page 18 Storage and transport Proline Teqwave MW 500 Modbus RS485 Storage and transport Storage conditions Observe the following notes for storage: ‣ Store in the original packaging to ensure protection from shock. ‣ Do not remove protective covers or protective caps installed on process connections.
Page 19 Proline Teqwave MW 500 Modbus RS485 Storage and transport Packaging disposal All packaging materials are environmentally friendly and 100% recyclable: • Outer packaging of device Stretch wrap made of polymer in accordance with EU Directive 2002/95/EC (RoHS) • Packaging • Wood crate treated in accordance with ISPM 15 standard, confirmed by IPPC logo •...
Page 20 Mounting procedure Proline Teqwave MW 500 Modbus RS485 Mounting procedure Mounting requirements 6.1.1 Mounting position Installation point Installation in pipe Do not install the device: • At the highest point of the pipe (risk of gas bubbles accumulating in the measuring tube) •...
Page 21 Proline Teqwave MW 500 Modbus RS485 Mounting procedure Installation near pumps • Install the device in the direction of flow downstream from the pump. • Also install pulsation dampers if reciprocating, diaphragm or peristaltic pumps are used. A0041083 Installation upstream from a down pipe If installing upstream of down pipes with a length h ≥...
Page 22 Mounting procedure Proline Teqwave MW 500 Modbus RS485 Orientation A0052238 Vertical orientation Horizontal orientation Vertical orientation The device should ideally be installed in a rising pipe: • To avoid having a partially filled pipe • To avoid any gas accumulation •...
Page 23 Proline Teqwave MW 500 Modbus RS485 Mounting procedure Inlet and outlet runs When installing the device, no inlet and outlet runs need to be taken into account. No special precautions need to be taken for fittings that create turbulence, such as valves, elbows or T-pieces, as long as no cavitation occurs.
Page 24 Mounting procedure Proline Teqwave MW 500 Modbus RS485 6.1.2 Environmental and process requirements Ambient temperature range Technical data for the ambient temperature range →  175 If operating outdoors: • Install the measuring device in a shady location. • Avoid direct sunlight, particularly in warm climatic regions.
Page 25 Proline Teqwave MW 500 Modbus RS485 Mounting procedure 6.1.3 Special mounting instructions Weather protection cover 213 (8.4) 203 (8.0) A0029552  5 Unit mm (in) A weather protection cover is available as an accessory.→  161 Endress+Hauser...
Page 26 Mounting procedure Proline Teqwave MW 500 Modbus RS485 Mounting the measuring device 6.2.1 Preparing the measuring device 1. Remove all remaining transport packaging. 2. Remove any protective covers or protective caps present from the sensor. 3. Remove stick-on label on the electronics compartment cover.
Page 27 Proline Teqwave MW 500 Modbus RS485 Mounting procedure A0047715  6 Mounting the sensor Washer Screw/mounting bolt Gasket Screw tightening torques NOTICE Failure to observe screw tightening torques or mounting instructions The process connection may be overloaded if screw tightening torques are not observed or the mounting instructions cannot be followed.
Page 28 Mounting procedure Proline Teqwave MW 500 Modbus RS485 Nominal diameter Pressure rating Screws Max. screw tightening torque [mm] [in] [mm] PN 10 12 x M20 220 Nm (162.3 lbf ft) PN 16 12 x M24 250 Nm (184.4 lbf ft)
Page 29 Proline Teqwave MW 500 Modbus RS485 Mounting procedure Wall mounting Required tools: Drill with drill bit ⌀ 6.0 mm 17 (0.67) 5.8 (0.23) 5.8 (0.23) 149 (5.85) A0029054  7 Engineering unit mm (in) Depends on order code for "Transmitter housing"...
Page 30 Mounting procedure Proline Teqwave MW 500 Modbus RS485 Pipe mounting Required tools: • Open-ended wrench AF 10 • Torx screwdriver TX 25 NOTICE Excessive tightening torque applied to the fixing screws! Risk of damaging the plastic transmitter. ‣ Tighten the fixing screws as per the tightening torque: 2.5 Nm (1.8 lbf ft) ø...
Page 31 Proline Teqwave MW 500 Modbus RS485 Electrical connection Electrical connection WARNING Live parts! Incorrect work performed on the electrical connections can result in an electric shock. ‣ Set up a disconnecting device (switch or power-circuit breaker) to easily disconnect the device from the supply voltage.
Page 32 Electrical connection Proline Teqwave MW 500 Modbus RS485 Cable type Twisted pairs Loop resistance ≤110 Ω/km Signal damping Max. 9 dB over the entire length of the cable cross-section Shield Copper braided shielding or braided shielding with foil shield. When grounding the cable shield, observe the grounding concept of the plant.
Page 33 Proline Teqwave MW 500 Modbus RS485 Electrical connection Oil resistance According to DIN EN 60811-2-1 Shield Tin-plated copper braid, optical cover ≥ 85 % Operating temperature When mounted in a fixed position: –50 to +105 °C (–58 to +221 °F); when cable can move freely: –25 to +105 °C (–13 to +221 °F)
Page 34 Electrical connection Proline Teqwave MW 500 Modbus RS485 To comply with EMC requirements: 1. Ensure the cable shield is grounded to the potential matching line at multiple points. 2. Connect every local ground terminal to the potential matching line. 7.2.5...
Page 35 Proline Teqwave MW 500 Modbus RS485 Electrical connection 7.2.6 Preparing the connecting cable When terminating the connecting cable, pay attention to the following points: ‣ For cables with fine-wire cores (stranded cables): Fit the cores with ferrules. Transmitter Sensor 90 (3.54)* 70 (2.76)
Page 36 Electrical connection Proline Teqwave MW 500 Modbus RS485 Connecting the measuring device NOTICE An incorrect connection compromises electrical safety! ‣ Only properly trained specialist staff may perform electrical connection work. ‣ Observe applicable federal/national installation codes and regulations. ‣ Comply with local workplace safety regulations.
Page 37 Proline Teqwave MW 500 Modbus RS485 Electrical connection Connecting the connecting cable to the sensor connection housing 10 (0.4) 3 mm TX 20 TX 20 22 mm 24 mm A0029616 1. Loosen the securing clamp of the housing cover. 2. Unscrew the housing cover.
Page 38 Electrical connection Proline Teqwave MW 500 Modbus RS485 Connecting the connecting cable to the transmitter TX 20 TX 20 10 (0.4) 22 mm 24 mm A0029597 1. Loosen the 4 fixing screws on the housing cover. 2. Open the housing cover.
Page 39 Proline Teqwave MW 500 Modbus RS485 Electrical connection 7.3.2 Connecting the signal cable and the supply voltage cable A0028200 Terminal connection for supply voltage Terminal connection for signal transmission, input/output Terminal connection for signal transmission, input/output Terminal connection for connecting cable between sensor and transmitter Terminal connection for signal transmission, input/output;...
Page 40 Electrical connection Proline Teqwave MW 500 Modbus RS485 WARNING Housing degree of protection may be voided due to insufficient sealing of the housing. ‣ Screw in the screw without using any lubricant. NOTICE Excessive tightening torque applied to the fixing screws! Risk of damaging the plastic transmitter.
Page 41 Proline Teqwave MW 500 Modbus RS485 Electrical connection Special connection instructions 7.5.1 Connection examples Current output 4-20 mA 4...20 mA A0028758  10 Connection example for 4-20 mA current output (active) Automation system with current input (e.g. PLC) Analog display unit: observe maximum load →  167 Transmitter 4...20 mA...
Page 42 Electrical connection Proline Teqwave MW 500 Modbus RS485 Switch output A0028760  13 Connection example for switch output (passive) Automation system with switch input (e.g. PLC with a 10 kΩ pull-up or pull-down resistor) Power supply Transmitter: observe input values →  167...
Page 43 Proline Teqwave MW 500 Modbus RS485 Electrical connection Status input A0028764  16 Connection example for status input Automation system with status output (e.g. PLC) Power supply Transmitter Endress+Hauser...
Page 44 Electrical connection Proline Teqwave MW 500 Modbus RS485 Hardware settings 7.6.1 Setting the device address The device address must always be configured for a Modbus slave. The valid device addresses are in the range from 1 to 247. Each address may only be assigned once in a Modbus RS485 network.
Page 45 Proline Teqwave MW 500 Modbus RS485 Electrical connection 7.6.2 Activating the terminating resistor To avoid incorrect communication transmission caused by impedance mismatch, terminate the Modbus RS485 cable correctly at the start and end of the bus segment. A0029675 1. Open the housing cover.
Page 46 Electrical connection Proline Teqwave MW 500 Modbus RS485 Ensuring the degree of protection The measuring device fulfills all the requirements for the degree of protection IP66/67, Type 4X enclosure. To guarantee the degree of protection IP66/67, Type 4X enclosure, carry out the following steps after electrical connection: 1.
Page 47 Proline Teqwave MW 500 Modbus RS485 Electrical connection Post-connection check Are cables or the device undamaged (visual inspection)?  Do the cables used comply with the requirements →  31?  Does the supply voltage match the specifications on the transmitter nameplate →  172? ...
Page 48 Operation options Proline Teqwave MW 500 Modbus RS485 Operation options Overview of operation options A0030213 Local operation via display module Computer with Web browser (e.g. Internet Explorer) or with operating tool (e.g. FieldCare, DeviceCare, AMS Device Manager, SIMATIC PDM) Mobile handheld terminal with SmartBlue App Control system (e.g.
Page 49 Proline Teqwave MW 500 Modbus RS485 Operation options Structure and function of the operating menu 8.2.1 Structure of the operating menu For an overview of the operating menu for experts: see the "Description of Device Parameters" document supplied with the device...
Page 50 Operation options Proline Teqwave MW 500 Modbus RS485 8.2.2 Operating philosophy The individual parts of the operating menu are assigned to certain user roles (e.g. operator, maintenance etc.). Each user role contains typical tasks within the device life cycle. Menu/parameter...
Page 51 Proline Teqwave MW 500 Modbus RS485 Operation options Access to operating menu via local display 8.3.1 Operational display X X X X X X X 5.53 A0051675 Operational display Device tag Status area Display range for measured values (up to 4 lines)
Page 52 Operation options Proline Teqwave MW 500 Modbus RS485 Temperature Conductivity The number and display format of the measured variables can be configured via the Format display parameter (→  98). Totalizer Symbol Meaning Totalizer Output Symbol Meaning Output  The measurement channel number indicates which of the outputs is displayed.
Page 53 Proline Teqwave MW 500 Modbus RS485 Operation options 8.3.2 Navigation view In the submenu In the wizard /../Operation /../Curr. output 1 User role Proc.var.outp Operator Temperature Locking status Display A0053523-EN A0053524-EN Navigation view Navigation path to current position Status area Display area for navigation Operating elements →...
Page 54 Operation options Proline Teqwave MW 500 Modbus RS485 Setup Is displayed: • In the menu next to the "Setup" selection • At the left in the navigation path in the Setup menu Diagnosis Is displayed: • In the menu next to the "Diagnostics" selection •...
Page 55 Proline Teqwave MW 500 Modbus RS485 Operation options 8.3.3 Editing view Numeric editor +0.000 Xx – A0034250  18 For entering values in parameters (e.g. limit values) Entry display area Input screen Confirm, delete or reject entry Operating elements Text editor...
Page 56 Operation options Proline Teqwave MW 500 Modbus RS485 Operating key Meaning Enter key • Pressing the key briefly confirms your selection. • Pressing the key for 2 s confirms your entry. • Pressing the key for > 3 s calls up the wizards: Compare measured value with reference value.
Page 57 Proline Teqwave MW 500 Modbus RS485 Operation options 8.3.4 Operating elements Operating key Meaning Minus key In menu, submenu Moves the selection bar upwards in a picklist In wizards Goes to previous parameter In the text and numeric editor Move the entry position to the left.
Page 58 Operation options Proline Teqwave MW 500 Modbus RS485 Calling up and closing the context menu The user is in the operational display. 1. Press the  and  keys for longer than 3 seconds.  The context menu opens. XXXXXXXXXX Setup Conf.backup...
Page 59 Proline Teqwave MW 500 Modbus RS485 Operation options 8.3.6 Navigating and selecting from list Different operating elements are used to navigate through the operating menu. The navigation path is displayed on the left in the header. Icons are displayed in front of the individual menus.
Page 60 Operation options Proline Teqwave MW 500 Modbus RS485 Calling up and closing the help text The user is in the navigation view and the selection bar is on a parameter. 1. Press  for 2 s.  The help text for the selected parameter opens.
Page 61 Proline Teqwave MW 500 Modbus RS485 Operation options Access authorization to parameters: "Operator" user role Access code status Read access Write access After an access code has been defined.  – Despite the defined access code, certain parameters can always be modified and thus are excluded from the write protection as they do not affect the measurement: write protection via access code →...
Page 62 Operation options Proline Teqwave MW 500 Modbus RS485 Access to operating menu via web browser 8.4.1 Function range With the integrated web server, the device can be operated and configured via a web browser service interface (CDI-RJ45) or WLAN interface. The structure of the operating menu is the same as for the local display.
Page 63 Proline Teqwave MW 500 Modbus RS485 Operation options Settings Interface CDI-RJ45 WLAN JavaScript JavaScript must be enabled. JavaScript must be enabled.   If JavaScript cannot be enabled: The WLAN display Enter http://192.168.1.212/servlet/ requires JavaScript basic.html in the address bar of the web support.
Page 64 Operation options Proline Teqwave MW 500 Modbus RS485 2. Connect the computer to the RJ45 plug via the standard Ethernet cable →  69. 3. If a 2nd network card is not used, close all the applications on the notebook.
Page 65 Proline Teqwave MW 500 Modbus RS485 Operation options 2. Enter the IP address of the web server in the address line of the web browser: 192.168.1.212  The login page appears. 2 3 4 Device name: Device tag: Signal Status:...
Page 66 Operation options Proline Teqwave MW 500 Modbus RS485 8.4.5 User interface 2 3 4 Device name: Device tag: Signal Status: Total solids adjustment Measured values Menu Instrument health status Data management Network Main Menü Display language English Operation Setup Diagnostic...
Page 67 Proline Teqwave MW 500 Modbus RS485 Operation options Functions Meaning Data exchange between computer and measuring device: • Device configuration: • Load settings from the device (XML format, save configuration) • Save settings to the device (XML format, restore configuration) Data management •...
Page 68 Operation options Proline Teqwave MW 500 Modbus RS485 Function scope of the "Web server functionality" parameter Option Description • The Web server is completely disabled. • Port 80 is locked. HTML Off The HTML version of the Web server is not available.
Page 69 Proline Teqwave MW 500 Modbus RS485 Operation options A0029437  21 Options for remote operation via Modbus RS485 protocol (active) Control system (e.g. PLC) Computer with web browser (e.g. Microsoft Edge) to access the integrated device web server or with operating tool (e.g.
Page 70 Operation options Proline Teqwave MW 500 Modbus RS485 A0037682 Transmitter with integrated WLAN antenna Transmitter with external WLAN antenna LED lit constantly: WLAN reception is enabled on measuring device LED flashing: WLAN connection established between operating unit and measuring device Computer with WLAN interface and web browser (e.g.
Page 71 FieldCare Function range FDT-based (Field Device Technology) plant asset management tool from Endress+Hauser. It can configure all smart field units in a system and helps you manage them. By using the status information, it is also a simple but effective way of checking their status and condition.
Page 72 DeviceCare Function range Tool for connecting and configuring Endress+Hauser field devices. The fastest way to configure Endress+Hauser field devices is with the dedicated "DeviceCare" tool. Together with the device type managers (DTMs) it presents a convenient, comprehensive solution. Innovation brochure IN01047S Source for device description files →...
Page 73 Proline Teqwave MW 500 Modbus RS485 System integration System integration Overview of device description files 9.1.1 Current version data for the device Firmware version 01.00.zz • On the title page of the manual • On the transmitter nameplate • Firmware version Diagnostics →...
Page 74 System integration Proline Teqwave MW 500 Modbus RS485 9.1.2 Operating tools Different operating tools can be used for local or remote access to the measuring device. Depending on the operating tool used, access is possible with different operating units and via a variety of interfaces.
Page 75 Proline Teqwave MW 500 Modbus RS485 System integration Modbus RS485 information 9.2.1 Function codes Function codes are used to define which read or write action is carried out via the Modbus protocol. The measuring device supports the following function codes:...
Page 76 System integration Proline Teqwave MW 500 Modbus RS485 Code Name Description Application Write multiple Master writes a new value to Write multiple device parameters registers multiple Modbus registers of the device. A maximum of 120 consecutive registers can be written with 1 telegram.
Page 77 Proline Teqwave MW 500 Modbus RS485 System integration 9.2.5 Byte transmission sequence Byte addressing, i.e. the transmission sequence of the bytes, is not specified in the Modbus specification. For this reason, it is important to coordinate or match the addressing method between the master and slave during commissioning.
Page 78 System integration Proline Teqwave MW 500 Modbus RS485 Structure of the Modbus data map The Modbus data map consists of two data sets: • Scan list: Configuration area The device parameters to be grouped are defined in a list by entering their Modbus RS485 register addresses in the list.
Page 79 Proline Teqwave MW 500 Modbus RS485 System integration Data area Device parameter value Modbus RS485 register Data type* Access** Start register End register (Float only) Value of scan list register 0 5051 5052 Integer/float Read/write Value of scan list register 1...
Page 80 Commissioning Proline Teqwave MW 500 Modbus RS485 Commissioning 10.1 Post-mounting and post-connection check Before commissioning the device: ‣ Make sure that the post-installation and post-connection checks have been performed successfully. • Checklist for "Post-mounting" check→  30 • Checklist for "Post-connection check" →  47 10.2...
Page 81 Proline Teqwave MW 500 Modbus RS485 Commissioning 10.5 Configuring the measuring device The Setup menu with its guided wizards contains all the parameters needed for standard operation. X X X X X X X 20.50 Main menu Display language English Display/operat.
Page 82 Commissioning Proline Teqwave MW 500 Modbus RS485 ‣ Total solids commissioning →  100 ‣ Total solids adjustment →  100 ‣ →  101 Advanced setup 10.5.1 Defining the tag name To enable fast identification of the measuring point within the system, you can enter a unique designation using the Device tag parameter and thus change the factory setting.
Page 83 Proline Teqwave MW 500 Modbus RS485 Commissioning 10.5.2 Setting the system units In the System units submenu the units of all the measured values can be set. The number of submenus and parameters can vary depending on the device version.
Page 84 Commissioning Proline Teqwave MW 500 Modbus RS485 10.5.3 Configuring the communication interface The Communication submenu guides you systematically through all the parameters that have to be configured for selecting and setting the communication interface. Navigation "Setup" menu → Communication ‣...
Page 85 Proline Teqwave MW 500 Modbus RS485 Commissioning 10.5.4 Displaying the I/O configuration The I/O configuration submenu guides the user systematically through all the parameters in which the configuration of the I/O modules is displayed. Navigation "Setup" menu → I/O configuration ‣...
Page 86 Commissioning Proline Teqwave MW 500 Modbus RS485 10.5.5 Configuring the current input The "Current input" wizard guides the user systematically through all the parameters that have to be set for configuring the current input. Navigation "Setup" menu → Current input ‣...
Page 87 Proline Teqwave MW 500 Modbus RS485 Commissioning 10.5.6 Configuring the status input The Status input submenu guides the user systematically through all the parameters that have to be set for configuring the status input. Navigation "Setup" menu → Status input 1 to n ‣...
Page 88 Commissioning Proline Teqwave MW 500 Modbus RS485 10.5.7 Configuring the current output The Current output wizard guides you systematically through all the parameters that have to be set for configuring the current output. Navigation "Setup" menu → Current output ‣...
Page 89 Proline Teqwave MW 500 Modbus RS485 Commissioning Parameter Prerequisite Description User interface / Factory setting Selection / User entry Current range output – Select current range for • 4...20 mA NE Depends on country: process value output and (3.8...20.5 mA) • 4...20 mA NE upper/lower level for alarm •...
Page 90 Commissioning Proline Teqwave MW 500 Modbus RS485 10.5.8 Configuring the pulse/frequency/switch output The Pulse/frequency/switch output wizard guides you systematically through all the parameters that can be set for configuring the selected output type. Navigation "Setup" menu → Advanced setup → Pulse/frequency/switch output ‣...
Page 91 Proline Teqwave MW 500 Modbus RS485 Commissioning Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting interface / User entry Operating mode If the Pulse option is selected, Define the output as a pulse, • Pulse Pulse the Load rate option must be frequency or switch output.
Page 92 Commissioning Proline Teqwave MW 500 Modbus RS485 Assign frequency output →  92 Minimum frequency value →  92 →  92 Maximum frequency value Measuring value at minimum →  93 frequency Measuring value at maximum →  93...
Page 93 Proline Teqwave MW 500 Modbus RS485 Commissioning Parameter Prerequisite Description Selection / User Factory setting interface / User entry Measuring value at minimum The Frequency option is Enter measured value for Signed floating-point Depends on country frequency selected in the Operating minimum frequency. number and nominal mode parameter (→...
Page 94 Commissioning Proline Teqwave MW 500 Modbus RS485 Configuring the switch output Navigation "Setup" menu → Pulse/frequency/switch output ‣ Pulse/frequency/switch output 1 to n Operating mode →  94 Terminal number →  94 Signal mode →  94 Switch output function →...
Page 95 Proline Teqwave MW 500 Modbus RS485 Commissioning Parameter Prerequisite Description Selection / User Factory setting interface / User entry Switch output function The Switch option is selected Select function for switch • Off in the Operating mode output. • On parameter. • Diagnostic behavior •...
Page 96 Commissioning Proline Teqwave MW 500 Modbus RS485 10.5.9 Configuring the relay output The Relay output wizard guides the user systematically through all the parameters that have to be set for configuring the relay output. Navigation "Setup" menu → Relay output 1 to n ‣...
Page 97 Proline Teqwave MW 500 Modbus RS485 Commissioning Parameter Prerequisite Description User interface / Factory setting Selection / User entry Assign flow direction check The Flow direction check Select process variable for flow option is selected in the Relay direction monitoring. output function parameter.
Page 98 Commissioning Proline Teqwave MW 500 Modbus RS485 Format display →  98 Value 1 display →  98 →  98 0% bargraph value 1 100% bargraph value 1 →  98 Value 2 display →  99 Value 3 display →...
Page 99 Proline Teqwave MW 500 Modbus RS485 Commissioning Parameter Prerequisite Description Selection / User Factory setting entry Value 2 display • A local display is provided. Select the measured value that • None None • The Load rate option is only is shown on the local display.
Page 100 Commissioning Proline Teqwave MW 500 Modbus RS485 10.5.11 "Total solids commissioning" wizard The Total solids commissioning wizard is used to perform the basic settings for adjusting the measured value based on a reference value. Wizard description →  130. Navigation "Setup"...
Page 101 Proline Teqwave MW 500 Modbus RS485 Commissioning 10.6 Advanced settings The Advanced setup submenu with its submenus contains parameters for specific settings. Navigation to the "Advanced setup" submenu X X X X X X X 20.50 Main menu Display language...
Page 102 Commissioning Proline Teqwave MW 500 Modbus RS485 ‣ WLAN settings →  107 ‣ Heartbeat setup →  108 ‣ →  109 Configuration backup ‣ Administration →  111 10.6.1 Using the parameter to enter the access code Navigation "Setup"...
Page 103 Proline Teqwave MW 500 Modbus RS485 Commissioning 10.6.2 Configuring the totalizer The totalizer is used to calculate the total load rate. The Load rate option is only available if the volume flow of the medium is read in via the Current input 1 to n.
Page 104 Commissioning Proline Teqwave MW 500 Modbus RS485 10.6.3 Carrying out additional display configurations In the Display submenu you can set all the parameters associated with the configuration of the local display. Navigation "Setup" menu → Advanced setup → Display ‣...
Page 105 Proline Teqwave MW 500 Modbus RS485 Commissioning Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Format display A local display is provided. Select how measured values • 1 value, max. size 1 value, max. size are shown on the display.
Page 106 Commissioning Proline Teqwave MW 500 Modbus RS485 Parameter Prerequisite Description Selection / User Factory setting entry Decimal places 3 A measured value is specified Select the number of decimal • x x.xx in the Value 3 display places for the display value.
Page 107 Proline Teqwave MW 500 Modbus RS485 Commissioning 10.6.4 WLAN configuration The WLAN Settings submenu guides the user systematically through all the parameters that have to be set for the WLAN configuration. Navigation "Setup" menu → Advanced setup → WLAN settings ‣...
Page 108 Commissioning Proline Teqwave MW 500 Modbus RS485 Parameter Prerequisite Description Selection / User Factory setting entry / User interface Network security – Select the security type of the • Unsecured WPA2-PSK WLAN network. • WPA2-PSK • EAP-PEAP with MSCHAPv2 • EAP-PEAP MSCHAPv2 no server authentic.
Page 109 Proline Teqwave MW 500 Modbus RS485 Commissioning 10.6.6 Configuration management After commissioning, you can save the current device configurationor restore the previous device configuration. The device configuration is managed via the Configuration management parameter. Navigation "Setup" menu → Advanced setup → Configuration backup ‣...
Page 110 Commissioning Proline Teqwave MW 500 Modbus RS485 Function scope of the "Configuration management" parameter Options Description Cancel No action is executed and the user exits the parameter. Execute backup A backup copy of the current device configuration is saved from the HistoROM backup to the memory of the device.
Page 111 Proline Teqwave MW 500 Modbus RS485 Commissioning 10.6.7 Using parameters for device administration The Administration submenu systematically guides the user through all the parameters that can be used for device administration purposes. Navigation "Setup" menu → Advanced setup → Administration ‣...
Page 112 Commissioning Proline Teqwave MW 500 Modbus RS485 Parameter overview with brief description Parameter Description User interface / User entry Factory setting Operating time Indicates how long the device has been in Days (d), hours (h), minutes – operation. (m) and seconds (s)
Page 113 Proline Teqwave MW 500 Modbus RS485 Commissioning 10.7 Simulation Via the Simulation submenu, it is possible to simulate various process variables in the process and the device alarm mode and verify downstream signal chains (switching valves or closed-control loops). The simulation can be performed without a real measurement (no flow of medium through the device).
Page 114 Commissioning Proline Teqwave MW 500 Modbus RS485 Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Assign simulation process variable The Load rate option is only Select a process variable for • Off available if the volume flow of the simulation process that is •...
Page 115 Proline Teqwave MW 500 Modbus RS485 Commissioning Parameter Prerequisite Description Selection / User Factory setting entry Diagnostic event category – Select a diagnostic event • Sensor Process category. • Electronics • Configuration • Process Diagnostic event simulation – Select a diagnostic event to •...
Page 116 Commissioning Proline Teqwave MW 500 Modbus RS485 10.8 Protecting settings from unauthorized access The following write protection options exist in order to protect the configuration of the measuring device from unintentional modification: • Protect access to parameters via access code →  116 •...
Page 117 Via Web browser, FieldCare, DeviceCare (via CDI-RJ45 service interface), fieldbus You can only obtain a reset code from your local Endress+Hauser service organization. The code must be calculated explicitly for every device. 1. Note down the serial number of the device.
Page 118 Commissioning Proline Teqwave MW 500 Modbus RS485 Enable/disable write protection A0029673 1. Open the housing cover. 2. Remove the display module. 3. Fold open the terminal cover. 4. Enable or disable write protection: Move the write protection switch on the main electronics module into position: ON hardware write protection enabled/OFF (factory setting) hardware write protection disabled.
Page 119 Proline Teqwave MW 500 Modbus RS485 Operation Operation 11.1 Reading off the device locking status Device active write protection: Locking status parameter Operation → Locking status Function scope of the "Locking status" parameter Options Description None The access authorization displayed in the Access status parameter applies →...
Page 120 Operation Proline Teqwave MW 500 Modbus RS485 11.5 Reading off measured values With the Measured values submenu, it is possible to read all the measured values. Navigation "Diagnostics" menu → Measured values ‣ Measured values ‣ Process variables →  120 ‣...
Page 121 Proline Teqwave MW 500 Modbus RS485 Operation Parameter Prerequisite Description User interface Electronics temperature – Shows the electronics temperature Signed floating-point currently measured. number Conductivity – Shows the conductivity currently Floating-point number measured. Corrected conductivity – Shows the conductivity measured Floating-point number compensated for temperature.
Page 122 Operation Proline Teqwave MW 500 Modbus RS485 Navigation "Diagnostics" menu → Measured values → Input values → Status input 1 to n ‣ Status input 1 to n Value status input →  122 Parameter overview with brief description Parameter...
Page 123 Proline Teqwave MW 500 Modbus RS485 Operation Parameter overview with brief description Parameter Description User interface Output current Displays the current value currently calculated for the current 3.59 to 22.5 mA output. Measured current Displays the current value currently measured for the current 0 to 30 mA output.
Page 124 Operation Proline Teqwave MW 500 Modbus RS485 Parameter overview with brief description Parameter Description User interface Switch state Indicates the current switch state of the output. • Open • Closed Switch cycles Shows number of all performed switch cycles. Positive integer Max.
Page 125 Proline Teqwave MW 500 Modbus RS485 Operation 11.6 Performing a totalizer reset The totalizers are reset in the Operation submenu: • Control Totalizer • Reset all totalizers Navigation "Operation" menu → Totalizer handling ‣ Totalizer handling →  125 Control Totalizer 1 to n Preset value 1 to n →...
Page 126 Operation Proline Teqwave MW 500 Modbus RS485 Options Description Preset + totalize The totalizer is set to the defined start value in the Preset value parameter and the totaling process is restarted. Hold Totalizing is stopped. Visible depending on the order options or device settings 11.6.2...
Page 127 Proline Teqwave MW 500 Modbus RS485 Operation 11.7 Displaying the measured value history The Extended HistoROM application package must be enabled in the device (order option) for the Data logging submenu to appear. This contains all the parameters for the measured value history.
Page 128 Operation Proline Teqwave MW 500 Modbus RS485 Data logging control →  129 Data logging status →  129 →  129 Entire logging duration ‣ Display channel 1 ‣ Display channel 2 ‣ Display channel 3 ‣ Display channel 4...
Page 129 Proline Teqwave MW 500 Modbus RS485 Operation Parameter Prerequisite Description Selection / User Factory setting entry / User interface Assign channel 4 • The Load rate option is only Assign a process variable to For the picklist, see available if the volume flow logging channel.
Page 130 Operation Proline Teqwave MW 500 Modbus RS485 11.8 Adjusting the measured value with the aid of wizards In practice, the measurement typically needs to be adjusted based a reference value (e.g. lab value) when commissioning the device to ensure optimum measurement performance during subsequent operation.
Page 131 Proline Teqwave MW 500 Modbus RS485 Operation Taking a sample The 1 - Take a sample wizard is used to: • set the system time (if not already defined in the Commissioning wizard) • have the total solids measured by the device •...
Page 132 Operation Proline Teqwave MW 500 Modbus RS485 11.8.3 Calling up wizards • Commissioning wizard The wizard is called up via the main menu: Setup → Total solids adjustment → Commissioning • Take a sample wizard, Enter lab value wizard and Assistent Perform adjustment: You can call up the wizard options via the operating menu or during local operation from the operational display by holding down the Enter key...
Page 133 Proline Teqwave MW 500 Modbus RS485 Operation 2. Select Total solids adjustment.  The available wizards are displayed. Endress+Hauser Device name Device tag Status signal Total solids adjustment Menu Instrument health status Data management Network Logout (Maintenance) Measured values Main menu >...
Page 134 Diagnosis and troubleshooting Proline Teqwave MW 500 Modbus RS485 Diagnosis and troubleshooting 12.1 General troubleshooting For local display Fault Possible causes Remedial action Local display is dark, but signal output is within The cable of the display module is not plugged in...
Page 135 Proline Teqwave MW 500 Modbus RS485 Diagnosis and troubleshooting Fault Possible causes Remedial action Device measures incorrectly. Configuration error or device is operated outside 1. Check and correct parameter configuration. the application. 2. Observe limit values specified in the "Technical Data".
Page 136 Diagnosis and troubleshooting Proline Teqwave MW 500 Modbus RS485 Fault Possible causes Remedial action ‣ Connection lost Check cable connection and power supply. ‣ Refresh the web browser and restart if necessary. ‣ Display of web browser content is difficult to Web browser version used is not optimal.
Page 137 Proline Teqwave MW 500 Modbus RS485 Diagnosis and troubleshooting 12.2 Diagnostic information via LEDs 12.2.1 Transmitter Different LEDs in the transmitter provide information on the device status. A0029689 Supply voltage Device status Not used Communication Service interface (CDI) active 1. Open the housing cover.
Page 138 Diagnosis and troubleshooting Proline Teqwave MW 500 Modbus RS485 Color/behavior Meaning White Communication active. Service interface (CDI) LED off Not connected or no connection established. Yellow Connected and connection established. Flashing yellow Service interface active. 12.2.2 Sensor connection housing Various light emitting diodes (LED) on the ISEM electronics unit (intelligent sensor electronics module) in the sensor connection housing provide information about the device status.
Page 139 Proline Teqwave MW 500 Modbus RS485 Diagnosis and troubleshooting 12.3 Diagnostic information on local display 12.3.1 Diagnostic message Faults detected by the self-monitoring system of the measuring device are displayed as a diagnostic message in alternation with the operational display.
Page 140 Diagnosis and troubleshooting Proline Teqwave MW 500 Modbus RS485 Diagnostic behavior Symbol Meaning Alarm • Measurement is interrupted. • Signal outputs and totalizers assume the defined alarm condition. • A diagnostic message is generated. Warning • Measurement is resumed. • The signal outputs and totalizers are not affected.
Page 141 Proline Teqwave MW 500 Modbus RS485 Diagnosis and troubleshooting 12.3.2 Calling up remedial measures X X X X X X X X X X X X X X 20.50 S801 Supply voltage Menu Diagnostic list Diagnostics 1 S801 Supply voltage...
Page 142 Diagnosis and troubleshooting Proline Teqwave MW 500 Modbus RS485 12.4 Diagnostic information in the web browser 12.4.1 Diagnostic options Any faults detected by the measuring device are displayed in the Web browser on the home page once the user has logged on.
Page 143 Proline Teqwave MW 500 Modbus RS485 Diagnosis and troubleshooting 12.5 Diagnostic information in FieldCare or DeviceCare 12.5.1 Diagnostic options Any faults detected by the measuring device are displayed on the home page of the operating tool once the connection has been established.
Page 144 Diagnosis and troubleshooting Proline Teqwave MW 500 Modbus RS485 12.5.2 Calling up remedy information Remedy information is provided for every diagnostic event to ensure that problems can be rectified quickly: • On the home page Remedy information is displayed in a separate field below the diagnostics information.
Page 145 Proline Teqwave MW 500 Modbus RS485 Diagnosis and troubleshooting 12.7 Adapting the diagnostic information 12.7.1 Adapting the diagnostic behavior Each item of diagnostic information is assigned a specific diagnostic behavior at the factory. The user can change this assignment for specific diagnostic information in the Diagnostic behavior submenu.
Page 146 Diagnosis and troubleshooting Proline Teqwave MW 500 Modbus RS485 12.8 Overview of diagnostic information In the case of some items of diagnostic information, the diagnostic behavior can be changed. Adapting the diagnostic information Diagnostic Short text Remedy instructions Status Diagnostic...
Page 147 Proline Teqwave MW 500 Modbus RS485 Diagnosis and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Firmware update failed 1. Update firmware of device Warning 2. Restart device Writing in HistoROM 1.
Page 148 Diagnosis and troubleshooting Proline Teqwave MW 500 Modbus RS485 Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Failure mode simulation Deactivate simulation Alarm active Process variable Deactivate simulation Warning simulation active Current input 1 to n...
Page 149 Proline Teqwave MW 500 Modbus RS485 Diagnosis and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Volume fraction out of 1. Perform adjustment Warning specification 2. Remove build-up on antennas / temperature sensors 3.
Page 150 Diagnosis and troubleshooting Proline Teqwave MW 500 Modbus RS485 12.9 Pending diagnostic events The Diagnostics menu allows the user to view the current diagnostic event and the previous diagnostic event separately. To call up the measures to rectify a diagnostic event: •...
Page 151 Proline Teqwave MW 500 Modbus RS485 Diagnosis and troubleshooting / ../Diagnose list Diagnostics F273 Main electronic Diagnostics 2 Diagnostics 3 A0014006-EN  28 Using the example of the local display To call up the measures to rectify a diagnostic event: •...
Page 152 Diagnosis and troubleshooting Proline Teqwave MW 500 Modbus RS485 12.11 Event logbook 12.11.1 Reading out the event logbook A chronological overview of the event messages that have occurred is provided in the Events list submenu. Navigation path Diagnostics menu → Event logbook submenu → Events list / ../Eventlist...
Page 153 Proline Teqwave MW 500 Modbus RS485 Diagnosis and troubleshooting 12.11.3 Overview of information events Unlike a diagnostic event, an information event is displayed in the event logbook only and not in the diagnostic list. Info number Info name I1000 --------(Device ok)
Page 154 Diagnosis and troubleshooting Proline Teqwave MW 500 Modbus RS485 Info number Info name I1622 Calibration changed I1624 All totalizers reset I1625 Write protection activated I1626 Write protection deactivated I1627 Web server: login successful I1628 Display: login successful I1629 CDI: login successful...
Page 155 Proline Teqwave MW 500 Modbus RS485 Diagnosis and troubleshooting 12.12 Resetting the measuring device The entire device configuration or some of the configuration can be reset to a defined state with the Device reset parameter (→  112). 12.12.1 Function range of "Device reset" parameter...
Page 156 Diagnosis and troubleshooting Proline Teqwave MW 500 Modbus RS485 Parameter overview with brief description Parameter Description User interface Factory setting Device tag Shows name of measuring point. Max. 32 characters, such as Teqwave M letters, numbers or special characters (e.g. @, %, /).
Page 157 "Manufacturer' s information" document. The manufacturer' s information is available: • In the Download Area of the Endress+Hauser web site: www.endress.com → Downloads • Specify the following details: •...
Page 158 • Mild soap solutions 13.2 Endress+Hauser services Endress+Hauser offers a wide variety of services for maintenance such as function checks at the place of manufacture, maintenance service or device tests. Your Endress+Hauser Sales Center can provide detailed information on the services.
Page 159 • The measuring devices have a modular design. • Spare parts are grouped into logical kits with the associated Installation Instructions. • Repairs are carried out by Endress+Hauser Service or by appropriately trained customers. • Certified devices can only be converted to other certified devices by Endress+Hauser Service or at the factory.
Page 160 Repair Proline Teqwave MW 500 Modbus RS485 14.5 Disposal If required by the Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), the product is marked with the depicted symbol in order to minimize the disposal of WEEE as unsorted municipal waste. Do not dispose of products bearing this marking as unsorted municipal waste.
Page 161 Various accessories, which can be ordered with the device or subsequently from Endress +Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.
Page 162 Accessories Proline Teqwave MW 500 Modbus RS485 15.1.2 For the sensor Accessories Description Mounting kit Consists of: • Screws/mounting bolts • Gaskets • Washers • Nuts  Order number: DK4M 15.2 Communication-specific accessories Accessories Description Fieldgate FXA42 Transmission of the measured values of connected 4 to 20 mA analog measuring devices, as well as digital measuring devices ...
Page 163 Via the Internet: https://portal.endress.com/webapp/applicator Netilion lloT ecosystem: Unlock knowledge With the Netilion lloT ecosystem, Endress+Hauser enables you to optimize your plant' s performance, digitize workflows, share knowledge and improve collaboration. Drawing on decades of experience in process automation, Endress+Hauser offers process industries an lloT ecosystem that provides customers with data- driven insights.

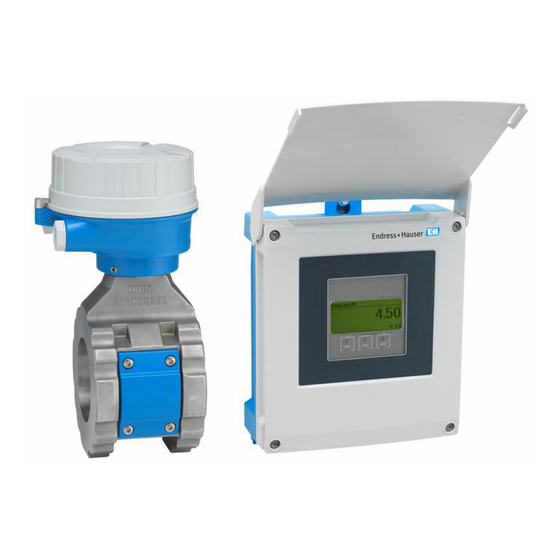

Page 164 Technical data Proline Teqwave MW 500 Modbus RS485 Technical data 16.1 Application The measuring device is suitable only for the measurement of solids in water-based liquids. Depending on the version ordered, the measuring device can also measure potentially explosive media.
Page 165 The volume flow can be read in as an input signal via the 4 to 20 mA current input from the Teqwave MW and used to calculate the load rate. The Proline W Promag 400 flowmeter can be ordered from Endress+Hauser →  163.
Page 166 Technical data Proline Teqwave MW 500 Modbus RS485 Open-circuit voltage ≤ 28.8 V (active) Possible input variables Volume flow of the medium for calculating the load rate Status input Order code "Output; input 2" (021), "Output; input 3" (022) or "Output; input 4" (023): option...
Page 167 Proline Teqwave MW 500 Modbus RS485 Technical data 16.4 Output Output signal Modbus RS485 Order code "Output; input 1" (020): Option MA: Modbus RS485 Physical interface RS485 in accordance with EIA/TIA-485 standard Terminating resistor Integrated, can be activated via DIP switches...
Page 168 Technical data Proline Teqwave MW 500 Modbus RS485 Pulse width Configurable: 0.05 to 2 000 ms Maximum pulse rate 10 000 Impulse/s Pulse value Configurable Assignable Totalizer (load rate) process variables Frequency output Maximum input values DC 30 V, 250 mA (passive) Maximum output current 22.5 mA (active)
Page 169 Proline Teqwave MW 500 Modbus RS485 Technical data Maximum switching • DC 30 V, 0.1 A capacity (passive) • AC 30 V, 0.5 A Assignable functions • Off • On • Diagnostic behavior • Limit value: • Total solids • Conductivity •...
Page 170 Technical data Proline Teqwave MW 500 Modbus RS485 Fault mode Choose from: • Actual value • 0 Hz • Definable value between: 2 to 12 500 Hz Switch output Fault mode Choose from: • Current status • Open • Closed...
Page 171 Proline Teqwave MW 500 Modbus RS485 Technical data Ex connection data Safety-related values Order code for "Output; input 1" Option Output/input type Safety-related values for output/input 1 26 (+) 27 (–) Modbus RS485 = 30 V = 250 V Order code for "Output; input 2", "Output; input 3" and "Output; input 4"...
Page 172 Technical data Proline Teqwave MW 500 Modbus RS485 Supported baud rates • 1 200 BAUD • 2 400 BAUD • 4 800 BAUD • 9 600 BAUD • 19 200 BAUD • 38 400 BAUD • 57 600 BAUD • 115 200 BAUD Data transmission mode •...
Page 173 Proline Teqwave MW 500 Modbus RS485 Technical data Power supply failure • Totalizer stops at the last value measured. • Depending on the device version, the configuration is retained in the device memory or in the plug-in memory (HistoROM DAT).
Page 174 Technical data Proline Teqwave MW 500 Modbus RS485 Short-term, temporary overvoltage Between cable and ground up to 1200 V, for max. 5 s Long-term, temporary overvoltage Between cable and ground up to 500 V 16.6 Performance characteristics Accuracy of outputs The outputs have the following base accuracy specifications.
Page 175 4 to 95%. Operating height According to EN 61010-1 • ≤ 2 000 m (6 562 ft) • > 2 000 m (6 562 ft) with additional overvoltage protection (e.g. Endress+Hauser HAW Series) Degree of protection Transmitter • IP66/67, Type 4X enclosure, suitable for pollution degree 4 •...
Page 176 Technical data Proline Teqwave MW 500 Modbus RS485 Vibration and shock Sensor connection housing resistance • Sinusoidal vibration according to IEC 60068-2-6 • 2 to 8.4 Hz, 7.5 mm peak • 8.4 to 2 000 Hz, 2 g peak • Broadband random vibration according to IEC 60068-2-64 •...
Page 177 Proline Teqwave MW 500 Modbus RS485 Technical data Static pressure ≥ 1.5 bar (21.8 psi), to avoid outgassing of the medium Installation near pumps →  21 Vibrations Information on the measuring system' s resistance to vibration and shock →  176 16.10 Mechanical construction...
Page 178 Technical data Proline Teqwave MW 500 Modbus RS485 Cable entries/cable glands A0028352  31 Possible cable entries/cable glands Female thread M20 × 1.5 Cable gland M20 × 1.5 Adapter for cable entry with female thread G ½" or NPT ½"...
Page 179 Proline Teqwave MW 500 Modbus RS485 Technical data Antennas • Parts in contact with medium: ceramic • Antenna bracket: stainless steel: 1.4435 (316L) Temperature sensor Stainless steel: 1.4435 (316L) Accessories Protective cover Stainless steel, 1.4404 (316L) External WLAN antenna • Antenna: ASA plastic (acrylonitrile styrene acrylate) and nickel-plated brass •...
Page 180 Technical data Proline Teqwave MW 500 Modbus RS485 16.11 Display and user interface Operation concept Operator-oriented menu structure for user-specific tasks • Commissioning • Operation • Diagnosis • Expert level Quick and safe commissioning • Guided menus ("Make-it-run" wizards) for applications •...
Page 181 Proline Teqwave MW 500 Modbus RS485 Technical data A0037255  32 Operation with touch control Display elements • 4-line, illuminated, graphic display • White background lighting; switches to red in event of device errors • Format for displaying measured variables and status variables can be individually...
Page 182 Technical data Proline Teqwave MW 500 Modbus RS485 Service interface Via service interface (CDI-RJ45) A point-to-point connection can be established to configure the device onsite. With the housing open, the connection is established directly via the service interface (CDI-RJ45) of the device.
Page 183 Proline Teqwave MW 500 Modbus RS485 Technical data A0052608 Transmitter with integrated WLAN antenna Transmitter with external WLAN antenna LED lit constantly: WLAN reception is enabled on measuring device LED flashing: WLAN connection established between operating unit and measuring device Computer with WLAN interface and web browser (e.g.
Page 184 Technical data Proline Teqwave MW 500 Modbus RS485 NOTICE Note the following to avoid a network conflict: ‣ Avoid accessing the measuring device simultaneously from the same mobile terminal via the service interface (CDI-RJ45) and the WLAN interface. ‣ Only activate one service interface (CDI-RJ45 or WLAN interface).
Page 185 Proline Teqwave MW 500 Modbus RS485 Technical data Supported operating Operating unit Interface Additional information tools Web browser Notebook, PC or tablet • CDI-RJ45 service Special Documentation for the with web browser interface device →  190 • WLAN interface...
Page 186 Technical data Proline Teqwave MW 500 Modbus RS485 HistoROM The measuring device features HistoROM data management. HistoROM data management data management comprises both the storage and import/export of key device and process data, making operation and servicing far more reliable, secure and efficient.
Page 187 The device meets the legal requirements of the applicable EU Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. UKCA marking The device meets the legal requirements of the applicable UK regulations (Statutory Instruments).
Page 188 Technical data Proline Teqwave MW 500 Modbus RS485 Radio approval The measuring device has radio approval. For detailed information on the radio approval, see the Special Documentation →  190 Pressure Equipment Devices with pressure measuring device approval (Pressure Equipment Directive, PED Cat.
Page 189 The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.
Page 190 For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. Standard documentation Technical information...
Page 191 Proline Teqwave MW 500 Modbus RS485 Technical data Installation instructions Contents Note Installation instructions for spare part sets and • Call up an overview of all available spare part sets accessories available using Device Viewer: www.endress.com/deviceviewer • Accessories available for order with Installation Instructions →...
Page 192 Index Proline Teqwave MW 500 Modbus RS485 Index Connection see Electrical connection Access authorization to parameters Connection preparations ..... . 34 Read access .
Page 193 Proline Teqwave MW 500 Modbus RS485 Index Display values Flow limit ....... . 176 For locking status .
Page 194 Index Proline Teqwave MW 500 Modbus RS485 Mounting the sensor ..... . 26 Operating elements ..... . 57, 140 Screw tightening torques .
Page 195 Proline Teqwave MW 500 Modbus RS485 Index Value current output 1 to n (Submenu) ..122 Communication interface ....84 Web server (Submenu) .
Page 196 Index Proline Teqwave MW 500 Modbus RS485 Totalizer ......124 Totalizer 1 to n ......103 Weight Totalizer handling .
