Page 1 Products Solutions Services BA02320D/06/EN/01.23-00 71637042 2024-03-15 Valid as of version 01.00.zz (Device firmware) Operating Instructions Proline Teqwave MW 300 Total solids measurement via microwave transmission HART...
Page 2 • The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser sales organization will supply you with current information and updates to this manual. Endress+Hauser...
Page 3: Table Of Contents
Proline Teqwave MW 300 HART Table of contents Table of contents 6.1.3 Special mounting instructions ..26 About this document ....6 Mounting the measuring device .
Page 4 Table of contents Proline Teqwave MW 300 HART 8.4.7 Logging out ....66 Operation ..... . . 119 Access to the operating menu via the 11.1 Reading off the device locking status .
Page 5 13.1.1 Exterior cleaning ....159 13.2 Endress+Hauser services ....159 Repair ......160 14.1 General notes .
Page 6: About This Document
About this document Proline Teqwave MW 300 HART About this document Document function These Operating Instructions contain all the information required in the various life cycle phases of the device: from product identification, incoming acceptance and storage, to installation, connection, operation and commissioning, through to troubleshooting, maintenance and disposal.
Page 7: Tool Symbols
Proline Teqwave MW 300 HART About this document Symbol Meaning Light emitting diode is on. Light emitting diode is flashing. 1.2.4 Tool symbols Symbol Meaning Flat-blade screwdriver Allen key Open-ended wrench 1.2.5 Symbols for certain types of information Symbol Meaning Permitted Procedures, processes or actions that are permitted.
Page 8: Documentation
For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. 1.3.1 Document function...
Page 9: Safety Instructions
Proline Teqwave MW 300 HART Safety instructions Safety instructions Requirements for the personnel The personnel for installation, commissioning, diagnostics and maintenance must fulfill the following requirements: ‣ Trained, qualified specialists must have a relevant qualification for this specific function and task.
Page 10: Workplace Safety
Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties.
Page 11: Device-Specific It Security
Proline Teqwave MW 300 HART Safety instructions Device-specific IT security The device offers a range of specific functions to support protective measures on the operator' s side. These functions can be configured by the user and guarantee greater in- operation safety if used correctly. The following list provides an overview of the most...
Page 12: Access Via Web Server
Safety instructions Proline Teqwave MW 300 HART WLAN passphrase: Operation as WLAN access point A connection between an operating unit (e.g. notebook or tablet) and the device via the WLAN interface (→  68), which can be ordered as an optional extra, is protected by the network key.

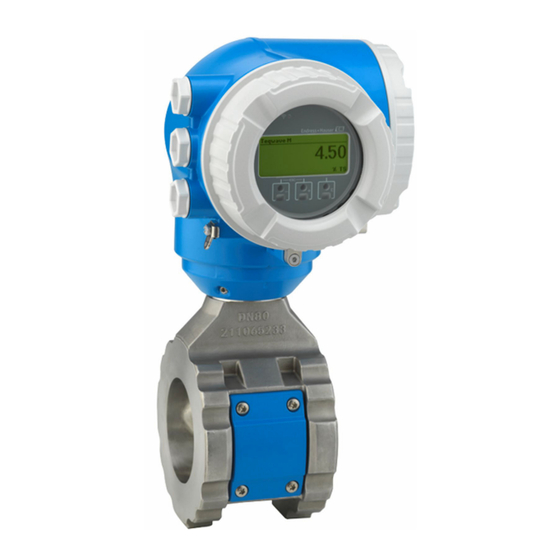

Page 13: Product Description
Proline Teqwave MW 300 HART Product description Product description The device consists of a transmitter and a sensor. The device is available as a compact version: The transmitter and sensor form a mechanical unit. Product design N ic te r e rg ö...
Page 14: Incoming Acceptance And Product
Is the envelope present with accompanying documents? • If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center. • The Technical Documentation is available via the Internet or via the Endress+Hauser Operations app: Product identification→  15.
Page 15: Product Identification
• Enter the serial numbers from the nameplates in the Device Viewer (www.endress.com/deviceviewer): all the information about the device is displayed. • Enter the serial numbers from the nameplates into the Endress+Hauser Operations app or scan the DataMatrix code on the nameplate with the Endress+Hauser Operations app: all the information about the device is displayed.
Page 16: Transmitter Nameplate
Incoming acceptance and product identification Proline Teqwave MW 300 HART 4.2.1 Transmitter nameplate 3 4 5 Order code: Ser. no.: Ext. ord. cd.: Date: A0029192  2 Example of a transmitter nameplate Manufacturer address/certificate holder Name of the transmitter Order code Serial number (Ser.
Page 17: Sensor Nameplate
Proline Teqwave MW 300 HART Incoming acceptance and product identification 4.2.2 Sensor nameplate Order code: Ser. no.: Ext. ord. cd.: Date: A0051311 Name of sensor Manufacturer address/certificate holder Order code Serial number (Ser. no.) Extended order code (Ext. ord. cd.) Full scale value;...
Page 18: Symbols On The Device
Incoming acceptance and product identification Proline Teqwave MW 300 HART 4.2.3 Symbols on the device Symbol Meaning WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury. Please consult the documentation for the measuring device to discover the type of potential danger and measures to avoid it.
Page 19: Storage And Transport
Proline Teqwave MW 300 HART Storage and transport Storage and transport Storage conditions Observe the following notes for storage: ‣ Store in the original packaging to ensure protection from shock. ‣ Do not remove protective covers or protective caps installed on process connections.
Page 20: Packaging Disposal
Storage and transport Proline Teqwave MW 300 HART Packaging disposal All packaging materials are environmentally friendly and 100% recyclable: • Outer packaging of device Stretch wrap made of polymer in accordance with EU Directive 2002/95/EC (RoHS) • Packaging • Wood crate treated in accordance with ISPM 15 standard, confirmed by IPPC logo •...
Page 21: Mounting Procedure
Proline Teqwave MW 300 HART Mounting procedure Mounting procedure Mounting requirements 6.1.1 Mounting position Installation point Installation in pipe Do not install the device: • At the highest point of the pipe (risk of gas bubbles accumulating in the measuring tube) •...
Page 22 Mounting procedure Proline Teqwave MW 300 HART Installation near pumps • Install the device in the direction of flow downstream from the pump. • Also install pulsation dampers if reciprocating, diaphragm or peristaltic pumps are used. A0041083 Installation upstream from a down pipe If installing upstream of down pipes with a length h ≥...
Page 23 Proline Teqwave MW 300 HART Mounting procedure Orientation A0052238 Vertical orientation Horizontal orientation Vertical orientation The device should ideally be installed in a rising pipe: • To avoid having a partially filled pipe • To avoid any gas accumulation • The measuring tube can be completely drained and protected against the buildup of deposits.
Page 24 Mounting procedure Proline Teqwave MW 300 HART Inlet and outlet runs When installing the device, no inlet and outlet runs need to be taken into account. No special precautions need to be taken for fittings that create turbulence, such as valves, elbows or T-pieces, as long as no cavitation occurs.
Page 25: Environmental And Process Requirements
Proline Teqwave MW 300 HART Mounting procedure 6.1.2 Environmental and process requirements Ambient temperature range Technical data for the ambient temperature range →  176 If operating outdoors: • Install the measuring device in a shady location. • Avoid direct sunlight, particularly in warm climatic regions.
Page 26: Special Mounting Instructions
Mounting procedure Proline Teqwave MW 300 HART 6.1.3 Special mounting instructions Weather protection cover 280 (11.0) 255 (10.0) 146 (5.75) 134 (5.3) 12 (0.47) 30 (1.18) A0029553  5 Unit mm (in) A weather protection cover is available as an accessory.→  162...
Page 27: Mounting The Measuring Device
Proline Teqwave MW 300 HART Mounting procedure Mounting the measuring device 6.2.1 Preparing the measuring device 1. Remove all remaining transport packaging. 2. Remove any protective covers or protective caps present from the sensor. 3. Remove stick-on label on the electronics compartment cover.
Page 28 Mounting procedure Proline Teqwave MW 300 HART A0047715  6 Mounting the sensor Washer Screw/mounting bolt Gasket Screw tightening torques NOTICE Failure to observe screw tightening torques or mounting instructions The process connection may be overloaded if screw tightening torques are not observed or the mounting instructions cannot be followed.
Page 29: Turning The Transmitter Housing
Proline Teqwave MW 300 HART Mounting procedure Nominal diameter Pressure rating Screws Max. screw tightening torque [mm] [in] [mm] PN 10 12 x M20 220 Nm (162.3 lbf ft) PN 16 12 x M24 250 Nm (184.4 lbf ft) PN 10 12 x M20 220 Nm (162.3 lbf ft)
Page 30: Turning The Display Module
Mounting procedure Proline Teqwave MW 300 HART – – 3 mm 4 mm 7 Nm (5.2 lbf ft) A0029993  7 Non-Ex housing 1. Depending on the device version: Loosen the securing clamp of the connection compartment cover. 2. Unscrew the connection compartment cover.
Page 31 Proline Teqwave MW 300 HART Mounting procedure – – – 3 mm A0030035 1. Depending on the device version: Loosen the securing clamp of the connection compartment cover. 2. Unscrew the connection compartment cover. 3. Turn the display module to the desired position: max. 8 × 45° in each direction.
Page 32: Post-Mounting Check
Mounting procedure Proline Teqwave MW 300 HART Post-mounting check Is the device undamaged (visual inspection)?  Does the measuring device conform to the measuring point specifications? For example: • Process temperature  • Pressure (refer to the "Pressure-temperature ratings" section of the "Technical Information"...
Page 33: Electrical Connection
Proline Teqwave MW 300 HART Electrical connection Electrical connection WARNING Live parts! Incorrect work performed on the electrical connections can result in an electric shock. ‣ Set up a disconnecting device (switch or power-circuit breaker) to easily disconnect the device from the supply voltage.
Page 34 Electrical connection Proline Teqwave MW 300 HART Relay output Standard installation cable is sufficient. Current input 0/4 to 20 mA Standard installation cable is sufficient Status input Standard installation cable is sufficient Cable diameter • Cable glands supplied: M20 × 1.5 with cable ⌀ 6 to 12 mm (0.24 to 0.47 in) •...
Page 35: Terminal Assignment
Proline Teqwave MW 300 HART Electrical connection Capacitance: core/shield Maximum 1 000 nF for Zone 1, Class I, Division 1 Maximum 24 µH/Ω for Zone 1, Class I, Division 1 7.2.3 Terminal assignment Transmitter: supply voltage, input/outputs The terminal assignment of the inputs and outputs depends on the individual order version of the device.
Page 36: Connecting The Transmitter
Electrical connection Proline Teqwave MW 300 HART 7.3.1 Connecting the transmitter A0026781 Terminal connection for supply voltage Terminal connection for signal transmission, input/output Terminal connection for signal transmission, input/output or terminal connection for network connection via service interface (CDI-RJ45); optional: connection for external WLAN antenna or remote display and...
Page 37 Proline Teqwave MW 300 HART Electrical connection 10 (0.4) mm (in) – A0029815 7. Push the cable through the cable entry. To ensure tight sealing, do not remove the sealing ring from the cable entry. 8. Strip the cable and cable ends. In the case of stranded cables, also fit ferrules.
Page 38 Electrical connection Proline Teqwave MW 300 HART 3 (0.12) A0029598  9 Engineering unit mm (in) 1. Use a flat-blade screwdriver to press down on the slot between the two terminal holes. 2. Remove the cable end from the terminal.
Page 39: Connecting The Remote Display And Operating Module Dkx001
Proline Teqwave MW 300 HART Electrical connection 7.3.2 Connecting the remote display and operating module DKX001 The remote display and operating module DKX001 is available as an optional extra →  162. • The measuring device is always supplied with a dummy cover when the remote display and operating module DKX001 is ordered directly with the measuring device.
Page 40: Special Connection Instructions
Electrical connection Proline Teqwave MW 300 HART Special connection instructions 7.5.1 Connection examples Current output 4 to 20 mA HART 4...20 mA A0029055  10 Connection example for 4 to 20 mA HART current output (active) Automation system with current input (e.g. PLC) Ground cable shield at one end.
Page 41 Proline Teqwave MW 300 HART Electrical connection HART input 4...20 mA A0028763  12 Connection example for HART input with a common negative (passive) Automation system with HART output (e.g. PLC) Active barrier for power supply (e.g. RN221N) →  174 Ground cable shield at one end.
Page 42 Electrical connection Proline Teqwave MW 300 HART Pulse/frequency output 12345 A0028761  15 Connection example for pulse/frequency output (passive) Automation system with pulse/frequency input (e.g. PLC with 10 kΩ pull-up or pull-down resistor) Power supply Transmitter: observe input values →  170...
Page 43 Proline Teqwave MW 300 HART Electrical connection Current input A0028915  18 Connection example for 4 to 20 mA current input Power supply Terminal box External device (for reading in the flow rate value in order to calculate the load rate)
Page 44: Ensuring The Degree Of Protection
Electrical connection Proline Teqwave MW 300 HART Ensuring the degree of protection The measuring device fulfills all the requirements for the degree of protection IP66/67, Type 4X enclosure. To guarantee the degree of protection IP66/67, Type 4X enclosure, carry out the following steps after electrical connection: 1.
Page 45: Post-Connection Check
Proline Teqwave MW 300 HART Electrical connection Post-connection check Are cables or the device undamaged (visual inspection)?  Do the cables used comply with the requirements →  33?  Does the supply voltage match the specifications on the transmitter nameplate →  174? ...
Page 46: Operation Options
Operation options Proline Teqwave MW 300 HART Operation options Overview of operation options A0034513 Local operation via display module Computer with Web browser (e.g. Internet Explorer) or with operating tool (e.g. FieldCare, DeviceCare, AMS Device Manager, SIMATIC PDM) Field Xpert SFX350 or SFX370...
Page 47: Structure And Function Of The Operating Menu
Proline Teqwave MW 300 HART Operation options Structure and function of the operating menu 8.2.1 Structure of the operating menu For an overview of the operating menu for experts: see the "Description of Device Parameters" document supplied with the device...
Page 48: Operating Philosophy
Operation options Proline Teqwave MW 300 HART 8.2.2 Operating philosophy The individual parts of the operating menu are assigned to certain user roles (e.g. operator, maintenance etc.). Each user role contains typical tasks within the device life cycle. Menu/parameter User role and tasks...
Page 49: Access To Operating Menu Via Local Display
Proline Teqwave MW 300 HART Operation options Access to operating menu via local display 8.3.1 Operational display X X X X X X X 5.53 A0051675 Operational display Device tag Status area Display range for measured values (up to 4 lines)
Page 50 Operation options Proline Teqwave MW 300 HART Temperature Conductivity The number and display format of the measured variables can be configured via the Format display parameter (→  97). Totalizer Symbol Meaning Totalizer Output Symbol Meaning Output  The measurement channel number indicates which of the outputs is displayed.
Page 51: Navigation View
Proline Teqwave MW 300 HART Operation options 8.3.2 Navigation view In the submenu In the wizard /../Operation /../Curr. output 1 User role Proc.var.outp Operator Temperature Locking status Display A0053523-EN A0053524-EN Navigation view Navigation path to current position Status area Display area for navigation Operating elements →...
Page 52 Operation options Proline Teqwave MW 300 HART Setup Is displayed: • In the menu next to the "Setup" selection • At the left in the navigation path in the Setup menu Diagnosis Is displayed: • In the menu next to the "Diagnostics" selection •...
Page 53: Editing View
Proline Teqwave MW 300 HART Operation options 8.3.3 Editing view Numeric editor +0.000 Xx – A0034250  21 For entering values in parameters (e.g. limit values) Entry display area Input screen Confirm, delete or reject entry Operating elements Text editor...
Page 54 Operation options Proline Teqwave MW 300 HART Operating key Meaning Enter key • Pressing the key briefly confirms your selection. • Pressing the key for 2 s confirms your entry. • Pressing the key for > 3 s calls up the wizards: Compare measured value with reference value.
Page 55: Operating Elements
Proline Teqwave MW 300 HART Operation options 8.3.4 Operating elements Operating key Meaning Minus key In menu, submenu Moves the selection bar upwards in a picklist In wizards Goes to previous parameter In the text and numeric editor Move the entry position to the left.
Page 56 Operation options Proline Teqwave MW 300 HART Calling up and closing the context menu The user is in the operational display. 1. Press the  and  keys for longer than 3 seconds.  The context menu opens. XXXXXXXXXX Setup Conf.backup...
Page 57: Navigating And Selecting From List
Proline Teqwave MW 300 HART Operation options 8.3.6 Navigating and selecting from list Different operating elements are used to navigate through the operating menu. The navigation path is displayed on the left in the header. Icons are displayed in front of the individual menus.
Page 58: Changing The Parameters
Operation options Proline Teqwave MW 300 HART Calling up and closing the help text The user is in the navigation view and the selection bar is on a parameter. 1. Press  for 2 s.  The help text for the selected parameter opens.
Page 59: Disabling Write Protection Via Access
Proline Teqwave MW 300 HART Operation options Access authorization to parameters: "Operator" user role Access code status Read access Write access After an access code has been defined.  – Despite the defined access code, certain parameters can always be modified and thus are excluded from the write protection as they do not affect the measurement: write protection via access code →...
Page 60: Access To Operating Menu Via Web Browser
Operation options Proline Teqwave MW 300 HART Access to operating menu via web browser 8.4.1 Function range With the integrated web server, the device can be operated and configured via a web browser service interface (CDI-RJ45) or WLAN interface. The structure of the operating menu is the same as for the local display.
Page 61: Connecting The Device
Proline Teqwave MW 300 HART Operation options Settings Interface CDI-RJ45 WLAN JavaScript JavaScript must be enabled. JavaScript must be enabled.   If JavaScript cannot be enabled: The WLAN display Enter http://192.168.1.212/servlet/ requires JavaScript basic.html in the address bar of the web support.
Page 62 Operation options Proline Teqwave MW 300 HART 2. Connect the computer to the RJ45 plug via the standard Ethernet cable →  68. 3. If a 2nd network card is not used, close all the applications on the notebook.  Applications requiring Internet or a network, such as e-mail, SAP applications, Internet or Windows Explorer.
Page 63: Logging On
Proline Teqwave MW 300 HART Operation options 2. Enter the IP address of the web server in the address line of the web browser: 192.168.1.212  The login page appears. 2 3 4 Device name: Device tag: Signal Status: Web server language...
Page 64: User Interface
Operation options Proline Teqwave MW 300 HART 8.4.5 User interface 2 3 4 Device name: Device tag: Signal Status: Total solids adjustment Measured values Menu Instrument health status Data management Network Main Menü Display language English Operation Setup Diagnostic Expert...
Page 65: Disabling The Web Server
Proline Teqwave MW 300 HART Operation options Functions Meaning Data exchange between computer and measuring device: • Device configuration: • Load settings from the device (XML format, save configuration) • Save settings to the device (XML format, restore configuration) Data management •...
Page 66: Logging Out
Operation options Proline Teqwave MW 300 HART Function scope of the "Web server functionality" parameter Option Description • The Web server is completely disabled. • Port 80 is locked. HTML Off The HTML version of the Web server is not available.
Page 67 Proline Teqwave MW 300 HART Operation options A0028747  24 Options for remote operation via HART protocol (active) Control system (e.g. PLC) Field Communicator 475 Computer with web browser (e.g. Microsoft Edge) to access the integrated device web server or computer with operating tool (e.g.
Page 68 Operation options Proline Teqwave MW 300 HART Service interface Via service interface (CDI-RJ45) A point-to-point connection can be established to configure the device onsite. With the housing open, the connection is established directly via the service interface (CDI-RJ45) of the device.
Page 69 Proline Teqwave MW 300 HART Operation options A0034570 Transmitter with integrated WLAN antenna Transmitter with external WLAN antenna LED lit constantly: WLAN reception is enabled on measuring device LED flashing: WLAN connection established between operating unit and measuring device Computer with WLAN interface and web browser (e.g. Microsoft Internet Explorer, Microsoft Edge) for accessing the integrated device web server or with operating tool (e.g.
Page 70: Field Xpert Sfx350, Sfx370
FieldCare Function range FDT-based (Field Device Technology) plant asset management tool from Endress+Hauser. It can configure all smart field units in a system and helps you manage them. By using the status information, it is also a simple but effective way of checking their status and condition.
Page 71: Devicecare
Density unit Current output 1 ppm TS I/O configuration mg/l Temperature unit Commissioning kg/m³ °C mg/m³ Total solids adjustment lb/gal (us) Conductivity unit Advanced setup lb/ft³ μS/cm A0053667 8.5.4 DeviceCare Function range Tool for connecting and configuring Endress+Hauser field devices. Endress+Hauser...
Page 72: Ams Device Manager
Operation options Proline Teqwave MW 300 HART The fastest way to configure Endress+Hauser field devices is with the dedicated "DeviceCare" tool. Together with the device type managers (DTMs) it presents a convenient, comprehensive solution. Innovation brochure IN01047S Source for device description files →  74 8.5.5...
Page 73: System Integration
Proline Teqwave MW 300 HART System integration System integration Overview of device description files 9.1.1 Current version data for the device Firmware version 01.00.zz • On the title page of the manual • On the transmitter nameplate • Firmware version Diagnostics →...
Page 74: Operating Tools
System integration Proline Teqwave MW 300 HART 9.1.2 Operating tools Different operating tools can be used for local or remote access to the measuring device. Depending on the operating tool used, access is possible with different operating units and via a variety of interfaces.
Page 75: Measured Variables Via Hart Protocol
Proline Teqwave MW 300 HART System integration Measured variables via HART protocol 9.2.1 Dynamic variables Measured variables can be assigned to the dynamic variables (PV, SV, TV and QV). This assignment of variables can take place via local operation or via an operating tool.
Page 76: Device Variables
System integration Proline Teqwave MW 300 HART Parameter Prerequisite Description Selection Factory setting Assign TV The Load rate option is only Assign measured variable to • Conductivity Electronics available if the volume flow of the third dynamic variable • Corrected...
Page 77: Other Settings
Proline Teqwave MW 300 HART System integration Other settings Burst mode functionality in accordance with HART 7 Specification: Navigation "Expert" menu → Communication → HART output → Burst configuration → Burst configuration 1 to n ‣ Burst configuration 1 to n Burst mode 1 to n →...
Page 78 System integration Proline Teqwave MW 300 HART Parameter Prerequisite Description Selection / User Factory setting entry Burst variable 0 The Load rate option is only For HART command 9 and 33: • Conductivity Total solids available if the volume flow of select the HART device •...
Page 79 Proline Teqwave MW 300 HART System integration Parameter Prerequisite Description Selection / User Factory setting entry Min. update period – Enter the minimum time span Positive integer 1 000 ms between two burst commands of burst message X. Max. update period –...
Page 80: Commissioning
Commissioning Proline Teqwave MW 300 HART Commissioning 10.1 Post-mounting and post-connection check Before commissioning the device: ‣ Make sure that the post-installation and post-connection checks have been performed successfully. • Checklist for "Post-mounting" check→  32 • Checklist for "Post-connection check" →  45 10.2...
Page 81: Configuring The Measuring Device
Proline Teqwave MW 300 HART Commissioning 10.5 Configuring the measuring device The Setup menu with its guided wizards contains all the parameters needed for standard operation. X X X X X X X 20.50 Main menu Display language English Display/operat.
Page 82: Defining The Tag Name
Commissioning Proline Teqwave MW 300 HART ‣ Total solids adjustment →  99 ‣ Advanced setup →  100 10.5.1 Defining the tag name To enable fast identification of the measuring point within the system, you can enter a unique designation using the Device tag parameter and thus change the factory setting.
Page 83: Setting The System Units
Proline Teqwave MW 300 HART Commissioning 10.5.2 Setting the system units In the System units submenu the units of all the measured values can be set. The number of submenus and parameters can vary depending on the device version. Certain submenus and parameters in these submenus are not described in the Operating Instructions.
Page 84: Displaying The I/O Configuration
Commissioning Proline Teqwave MW 300 HART 10.5.3 Displaying the I/O configuration The I/O configuration submenu guides the user systematically through all the parameters in which the configuration of the I/O modules is displayed. Navigation "Setup" menu → I/O configuration ‣...
Page 85: Configuring The Current Input
Proline Teqwave MW 300 HART Commissioning 10.5.4 Configuring the current input The "Current input" wizard guides the user systematically through all the parameters that have to be set for configuring the current input. Navigation "Setup" menu → Current input ‣...
Page 86: Configuring The Status Input
Commissioning Proline Teqwave MW 300 HART 10.5.5 Configuring the status input The Status input submenu guides the user systematically through all the parameters that have to be set for configuring the status input. Navigation "Setup" menu → Status input 1 to n ‣...
Page 87: Configuring The Current Output
Proline Teqwave MW 300 HART Commissioning 10.5.6 Configuring the current output The Current output wizard guides you systematically through all the parameters that have to be set for configuring the current output. Navigation "Setup" menu → Current output ‣ Current output 1 to n Terminal number →...
Page 88 Commissioning Proline Teqwave MW 300 HART Parameter Prerequisite Description User interface / Factory setting Selection / User entry Current range output – Select current range for • 4...20 mA NE Depends on country: process value output and (3.8...20.5 mA) • 4...20 mA NE upper/lower level for alarm •...
Page 89: Configuring The Pulse/Frequency
Proline Teqwave MW 300 HART Commissioning 10.5.7 Configuring the pulse/frequency/switch output The Pulse/frequency/switch output wizard guides you systematically through all the parameters that can be set for configuring the selected output type. Navigation "Setup" menu → Advanced setup → Pulse/frequency/switch output ‣...
Page 90 Commissioning Proline Teqwave MW 300 HART Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting interface / User entry Operating mode If the Pulse option is selected, Define the output as a pulse, • Pulse Pulse the Load rate option must be frequency or switch output.
Page 91 Proline Teqwave MW 300 HART Commissioning Minimum frequency value →  91 Maximum frequency value →  91 →  92 Measuring value at minimum frequency Measuring value at maximum →  92 frequency Failure mode →  92 Failure frequency →...
Page 92 Commissioning Proline Teqwave MW 300 HART Parameter Prerequisite Description Selection / User Factory setting interface / User entry Measuring value at minimum The Frequency option is Enter measured value for Signed floating-point Depends on country frequency selected in the Operating minimum frequency. number and nominal mode parameter (→...
Page 93 Proline Teqwave MW 300 HART Commissioning Configuring the switch output Navigation "Setup" menu → Pulse/frequency/switch output ‣ Pulse/frequency/switch output 1 to n Operating mode →  93 Terminal number →  93 Signal mode →  93 Switch output function →...
Page 94 Commissioning Proline Teqwave MW 300 HART Parameter Prerequisite Description Selection / User Factory setting interface / User entry Switch output function The Switch option is selected Select function for switch • Off in the Operating mode output. • On parameter. • Diagnostic behavior • Limit •...
Page 95: Configuring The Relay Output
Proline Teqwave MW 300 HART Commissioning 10.5.8 Configuring the relay output The Relay output wizard guides the user systematically through all the parameters that have to be set for configuring the relay output. Navigation "Setup" menu → Relay output 1 to n ‣...
Page 96: Configuring The Local Display
Commissioning Proline Teqwave MW 300 HART Parameter Prerequisite Description User interface / Factory setting Selection / User entry Assign flow direction check The Flow direction check Select process variable for flow option is selected in the Relay direction monitoring. output function parameter. Assign limit •...
Page 97 Proline Teqwave MW 300 HART Commissioning Format display →  97 Value 1 display →  97 →  97 0% bargraph value 1 100% bargraph value 1 →  97 Value 2 display →  98 Value 3 display →...
Page 98 Commissioning Proline Teqwave MW 300 HART Parameter Prerequisite Description Selection / User Factory setting entry Value 2 display • A local display is provided. Select the measured value that • None None • The Load rate option is only is shown on the local display.
Page 99: 10.5.10 "Total Solids Commissioning" Wizard
Proline Teqwave MW 300 HART Commissioning 10.5.10 "Total solids commissioning" wizard The Total solids commissioning wizard is used to perform the basic settings for adjusting the measured value based on a reference value. Wizard description →  130. Navigation "Setup" menu → Total solids commissioning ‣...
Page 100: Advanced Settings
Commissioning Proline Teqwave MW 300 HART 10.6 Advanced settings The Advanced setup submenu with its submenus contains parameters for specific settings. Navigation to the "Advanced setup" submenu X X X X X X X 20.50 Main menu Display language English...
Page 101: Using The Parameter To Enter The Access Code
Proline Teqwave MW 300 HART Commissioning ‣ WLAN settings →  107 ‣ Heartbeat setup →  108 ‣ →  109 Configuration backup ‣ Administration →  111 10.6.1 Using the parameter to enter the access code Navigation "Setup" menu → Advanced setup...
Page 102: Configuring The Totalizer
Commissioning Proline Teqwave MW 300 HART 10.6.2 Configuring the totalizer The totalizer is used to calculate the total load rate. The Load rate option is only available if the volume flow of the medium is read in via the Current input 1 to n.
Page 103: Carrying Out Additional Display Configurations
Proline Teqwave MW 300 HART Commissioning 10.6.3 Carrying out additional display configurations In the Display submenu you can set all the parameters associated with the configuration of the local display. Navigation "Setup" menu → Advanced setup → Display ‣ Display Format display →...
Page 104 Commissioning Proline Teqwave MW 300 HART Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Format display A local display is provided. Select how measured values • 1 value, max. size 1 value, max. size are shown on the display.
Page 105 Proline Teqwave MW 300 HART Commissioning Parameter Prerequisite Description Selection / User Factory setting entry Decimal places 3 A measured value is specified Select the number of decimal • x x.xx in the Value 3 display places for the display value. • x.x parameter.
Page 106 Commissioning Proline Teqwave MW 300 HART Parameter Prerequisite Description Selection / User Factory setting entry Separator A local display is provided. Select decimal separator for • . (point) . (point) displaying numerical values. • , (comma) Backlight One of the following Switch the local display •...
Page 107: Wlan Configuration
Proline Teqwave MW 300 HART Commissioning 10.6.4 WLAN configuration The WLAN Settings submenu guides the user systematically through all the parameters that have to be set for the WLAN configuration. Navigation "Setup" menu → Advanced setup → WLAN settings ‣...
Page 108: Heartbeat Technology Application
Commissioning Proline Teqwave MW 300 HART Parameter Prerequisite Description Selection / User Factory setting entry / User interface Network security – Select the security type of the • Unsecured WPA2-PSK WLAN network. • WPA2-PSK • EAP-PEAP with MSCHAPv2 • EAP-PEAP MSCHAPv2 no server authentic.
Page 109: Configuration Management
Proline Teqwave MW 300 HART Commissioning 10.6.6 Configuration management After commissioning, you can save the current device configurationor restore the previous device configuration. The device configuration is managed via the Configuration management parameter. Navigation "Setup" menu → Advanced setup → Configuration backup ‣...
Page 110 Commissioning Proline Teqwave MW 300 HART Function scope of the "Configuration management" parameter Options Description Cancel No action is executed and the user exits the parameter. Execute backup A backup copy of the current device configuration is saved from the HistoROM backup to the memory of the device.
Page 111: Using Parameters For Device Administration
Proline Teqwave MW 300 HART Commissioning 10.6.7 Using parameters for device administration The Administration submenu systematically guides the user through all the parameters that can be used for device administration purposes. Navigation "Setup" menu → Advanced setup → Administration ‣...
Page 112 Commissioning Proline Teqwave MW 300 HART Parameter overview with brief description Parameter Description User interface / User entry Factory setting Operating time Indicates how long the device has been in Days (d), hours (h), minutes – operation. (m) and seconds (s) Reset access code...
Page 113: Simulation
Proline Teqwave MW 300 HART Commissioning 10.7 Simulation Via the Simulation submenu, it is possible to simulate various process variables in the process and the device alarm mode and verify downstream signal chains (switching valves or closed-control loops). The simulation can be performed without a real measurement (no flow of medium through the device).
Page 114 Commissioning Proline Teqwave MW 300 HART Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Assign simulation process variable The Load rate option is only Select a process variable for • Off available if the volume flow of the simulation process that is •...
Page 115 Proline Teqwave MW 300 HART Commissioning Parameter Prerequisite Description Selection / User Factory setting entry Diagnostic event category – Select a diagnostic event • Sensor Process category. • Electronics • Configuration • Process Diagnostic event simulation – Select a diagnostic event to •...
Page 116: Protecting Settings From Unauthorized Access
Commissioning Proline Teqwave MW 300 HART 10.8 Protecting settings from unauthorized access The following write protection options exist in order to protect the configuration of the measuring device from unintentional modification: • Protect access to parameters via access code →  116 •...
Page 117: Write Protection Via Write Protection
Via Web browser, FieldCare, DeviceCare (via CDI-RJ45 service interface), fieldbus You can only obtain a reset code from your local Endress+Hauser service organization. The code must be calculated explicitly for every device. 1. Note down the serial number of the device.
Page 118 Commissioning Proline Teqwave MW 300 HART A0029630 Setting the write protection (WP) switch on the main electronics module to the ON position enables hardware write protection.  In the Locking status parameter, the Hardware locked option is displayed →  119. In addition, on the local display the  symbol appears in front of the parameters in the header of the operational display and in the navigation view.
Page 119: Operation
Proline Teqwave MW 300 HART Operation Operation 11.1 Reading off the device locking status Device active write protection: Locking status parameter Operation → Locking status Function scope of the "Locking status" parameter Options Description None The access authorization displayed in the Access status parameter applies →...
Page 120: Reading Off Measured Values
Operation Proline Teqwave MW 300 HART 11.5 Reading off measured values With the Measured values submenu, it is possible to read all the measured values. Navigation "Diagnostics" menu → Measured values ‣ Measured values ‣ Process variables →  120 ‣...
Page 121: Input Values" Submenu
Proline Teqwave MW 300 HART Operation Parameter Prerequisite Description User interface Conductivity – Shows the conductivity currently Floating-point number measured. Corrected conductivity – Shows the conductivity measured Floating-point number compensated for temperature. Load rate The volume flow of the medium is read Shows the total solids flow rate.
Page 122: Output Values
Operation Proline Teqwave MW 300 HART Navigation "Diagnostics" menu → Measured values → Input values → Status input 1 to n ‣ Status input 1 to n Value status input →  122 Parameter overview with brief description Parameter Description...
Page 123 Proline Teqwave MW 300 HART Operation Parameter overview with brief description Parameter Description User interface Output current Displays the current value currently calculated for the current 3.59 to 22.5 mA output. Measured current Displays the current value currently measured for the current 0 to 30 mA output.
Page 124: Totalizer" Submenu
Operation Proline Teqwave MW 300 HART Parameter overview with brief description Parameter Description User interface Switch state Indicates the current switch state of the output. • Open • Closed Switch cycles Shows number of all performed switch cycles. Positive integer Max.
Page 125: Performing A Totalizer Reset
Proline Teqwave MW 300 HART Operation 11.6 Performing a totalizer reset The totalizers are reset in the Operation submenu: • Control Totalizer • Reset all totalizers Navigation "Operation" menu → Totalizer handling ‣ Totalizer handling →  125 Control Totalizer 1 to n Preset value 1 to n →...
Page 126: Function Range Of "Reset All Totalizers" Parameter
Operation Proline Teqwave MW 300 HART Options Description Preset + totalize The totalizer is set to the defined start value in the Preset value parameter and the totaling process is restarted. Hold Totalizing is stopped. Visible depending on the order options or device settings 11.6.2...
Page 127: Displaying The Measured Value History
Proline Teqwave MW 300 HART Operation 11.7 Displaying the measured value history The Extended HistoROM application package must be enabled in the device (order option) for the Data logging submenu to appear. This contains all the parameters for the measured value history.
Page 128 Operation Proline Teqwave MW 300 HART Data logging control →  129 Data logging status →  129 →  129 Entire logging duration Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry / User interface Assign channel 1...
Page 129 Proline Teqwave MW 300 HART Operation Parameter Prerequisite Description Selection / User Factory setting entry / User interface Assign channel 4 • The Load rate option is only Assign a process variable to For the picklist, see available if the volume flow logging channel.
Page 130: Adjusting The Measured Value With The Aid Of
Operation Proline Teqwave MW 300 HART 11.8 Adjusting the measured value with the aid of wizards In practice, the measurement typically needs to be adjusted based a reference value (e.g. lab value) when commissioning the device to ensure optimum measurement performance during subsequent operation.
Page 131 Proline Teqwave MW 300 HART Operation Taking a sample The 1 - Take a sample wizard is used to: • set the system time (if not already defined in the Commissioning wizard) • have the total solids measured by the device •...
Page 132: Calling Up Wizards
Operation Proline Teqwave MW 300 HART 11.8.3 Calling up wizards • Commissioning wizard The wizard is called up via the main menu: Setup → Total solids adjustment → Commissioning • Take a sample wizard, Enter lab value wizard and Assistent Perform adjustment: You can call up the wizard options via the operating menu or during local operation from the operational display by holding down the Enter key...
Page 133 Proline Teqwave MW 300 HART Operation 3. Select the desired wizard.  The individual steps of the wizard are displayed. Endress+Hauser Device name Device tag Status signal Total solids adjustment Menu Instrument health status Data management Network Logout (Maintenance) Measured values Main menu >...
Page 134: Diagnosis And Troubleshooting
Diagnosis and troubleshooting Proline Teqwave MW 300 HART Diagnosis and troubleshooting 12.1 General troubleshooting For local display Fault Possible causes Remedial action Local display is dark, but signal output is within The cable of the display module is not plugged in...
Page 135 Proline Teqwave MW 300 HART Diagnosis and troubleshooting For access Fault Possible causes Remedial action Write access to parameters is not possible. Hardware write protection is enabled. Set the write protection switch on the main electronics module to the OFF position →...
Page 136: Diagnostic Information Via Leds
Diagnosis and troubleshooting Proline Teqwave MW 300 HART 12.2 Diagnostic information via LEDs 12.2.1 Transmitter Different LEDs in the transmitter provide information on the device status. 1 2 3 4 5 A0029629 Supply voltage Device status Not used Communication Service interface (CDI) active...
Page 137: Diagnostic Information On Local Display
Proline Teqwave MW 300 HART Diagnosis and troubleshooting 12.3 Diagnostic information on local display 12.3.1 Diagnostic message Faults detected by the self-monitoring system of the measuring device are displayed as a diagnostic message in alternation with the operational display. Operational display in alarm condition...
Page 138 Diagnosis and troubleshooting Proline Teqwave MW 300 HART Diagnostic behavior Symbol Meaning Alarm • Measurement is interrupted. • Signal outputs and totalizers assume the defined alarm condition. • A diagnostic message is generated. Warning • Measurement is resumed. • The signal outputs and totalizers are not affected.
Page 139: Calling Up Remedial Measures
Proline Teqwave MW 300 HART Diagnosis and troubleshooting 12.3.2 Calling up remedial measures X X X X X X X X X X X X X X 20.50 S801 Supply voltage Menu Diagnostic list Diagnostics 1 S801 Supply voltage Diagnostics 2...
Page 140: Diagnostic Information In The Web Browser
Diagnosis and troubleshooting Proline Teqwave MW 300 HART 12.4 Diagnostic information in the web browser 12.4.1 Diagnostic options Any faults detected by the measuring device are displayed in the Web browser on the home page once the user has logged on.
Page 141: Calling Up Remedy Information
Proline Teqwave MW 300 HART Diagnosis and troubleshooting 12.4.2 Calling up remedy information Remedy information is provided for every diagnostic event to ensure that problems can be rectified quickly. These measures are displayed in red along with the diagnostic event and the related diagnostic information.
Page 142: Diagnostic Information In Fieldcare Or
Diagnosis and troubleshooting Proline Teqwave MW 300 HART 12.5 Diagnostic information in FieldCare or DeviceCare 12.5.1 Diagnostic options Any faults detected by the measuring device are displayed on the home page of the operating tool once the connection has been established.
Page 143: Calling Up Remedy Information
Proline Teqwave MW 300 HART Diagnosis and troubleshooting 12.5.2 Calling up remedy information Remedy information is provided for every diagnostic event to ensure that problems can be rectified quickly: • On the home page Remedy information is displayed in a separate field below the diagnostics information.
Page 144: Adapting The Diagnostic Information
Diagnosis and troubleshooting Proline Teqwave MW 300 HART 12.6 Adapting the diagnostic information 12.6.1 Adapting the diagnostic behavior Each item of diagnostic information is assigned a specific diagnostic behavior at the factory. The user can change this assignment for specific diagnostic information in the Diagnostic behavior submenu.
Page 145 Proline Teqwave MW 300 HART Diagnosis and troubleshooting Symbol Meaning Maintenance required Maintenance is required. The measured value remains valid. A0013957 Has no effect on the condensed status. A0023076 Endress+Hauser...
Page 146: Overview Of Diagnostic Information
Diagnosis and troubleshooting Proline Teqwave MW 300 HART 12.7 Overview of diagnostic information In the case of some items of diagnostic information, the status signal and the diagnostic behavior can be changed. Change the diagnostic information →  144 Diagnostic...
Page 147 Proline Teqwave MW 300 HART Diagnosis and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Firmware update failed 1. Update firmware of device Warning 2. Restart device Writing in HistoROM 1. Replace user interface board...
Page 148 Diagnosis and troubleshooting Proline Teqwave MW 300 HART Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Current input 1 to n Deactivate simulation Warning simulation active Current output 1 to n Deactivate simulation...
Page 149 Proline Teqwave MW 300 HART Diagnosis and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Conductivity out of 1. Check process conditions Warning specification 2. Clean measuring tube 3. Replace sensor electronic module...
Page 150: Pending Diagnostic Events
Diagnosis and troubleshooting Proline Teqwave MW 300 HART 12.8 Pending diagnostic events The Diagnostics menu allows the user to view the current diagnostic event and the previous diagnostic event separately. To call up the measures to rectify a diagnostic event: •...
Page 151 Proline Teqwave MW 300 HART Diagnosis and troubleshooting / ../Diagnose list Diagnostics F273 Main electronic Diagnostics 2 Diagnostics 3 A0014006-EN  33 Using the example of the local display To call up the measures to rectify a diagnostic event: • Via local display →  139 •...
Page 152: 12.10 Event Logbook
Diagnosis and troubleshooting Proline Teqwave MW 300 HART 12.10 Event logbook 12.10.1 Reading out the event logbook A chronological overview of the event messages that have occurred is provided in the Events list submenu. Navigation path Diagnostics menu → Event logbook submenu → Events list / ../Eventlist...
Page 153: 12.10.3 Overview Of Information Events
Proline Teqwave MW 300 HART Diagnosis and troubleshooting 12.10.3 Overview of information events Unlike a diagnostic event, an information event is displayed in the event logbook only and not in the diagnostic list. Info number Info name I1000 --------(Device ok)
Page 154 Diagnosis and troubleshooting Proline Teqwave MW 300 HART Info number Info name I1625 Write protection activated I1626 Write protection deactivated I1627 Web server: login successful I1628 Display: login successful I1629 CDI: login successful I1631 Web server access changed I1632 Display: login failed...
Page 155: 12.11 Resetting The Measuring Device
Proline Teqwave MW 300 HART Diagnosis and troubleshooting 12.11 Resetting the measuring device The entire device configuration or some of the configuration can be reset to a defined state with the Device reset parameter (→  112). 12.11.1 Function range of "Device reset" parameter...
Page 156: 12.12 Device Information
Diagnosis and troubleshooting Proline Teqwave MW 300 HART 12.12 Device information The Device information submenu contains all parameters that display different information for device identification. Navigation "Diagnostics" menu → Device information ‣ Device information Device tag →  156 Serial number →...
Page 157 Proline Teqwave MW 300 HART Diagnosis and troubleshooting Parameter Description User interface Factory setting Device name Shows the name of the transmitter. Character string comprising – numbers, letters and special  The name can be found on the characters nameplate of the transmitter.
Page 158: 12.13 Firmware History
"Manufacturer' s information" document. The manufacturer' s information is available: • In the Download Area of the Endress+Hauser web site: www.endress.com → Downloads • Specify the following details: •...
Page 159: Maintenance
13.2 Endress+Hauser services Endress+Hauser offers a wide variety of services for maintenance such as function checks at the place of manufacture, maintenance service or device tests. Your Endress+Hauser Sales Center can provide detailed information on the services.
Page 160: Repair
• The measuring devices have a modular design. • Spare parts are grouped into logical kits with the associated Installation Instructions. • Repairs are carried out by Endress+Hauser Service or by appropriately trained customers. • Certified devices can only be converted to other certified devices by Endress+Hauser Service or at the factory.
Page 161: Disposal
Proline Teqwave MW 300 HART Repair 14.5 Disposal If required by the Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), the product is marked with the depicted symbol in order to minimize the disposal of WEEE as unsorted municipal waste. Do not dispose of products bearing this marking as unsorted municipal waste.
Page 162: Accessories
Various accessories, which can be ordered with the device or subsequently from Endress +Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.
Page 163: For The Sensor
Proline Teqwave MW 300 HART Accessories External WLAN antenna External WLAN antenna with 1.5 m (59.1 in) connecting cable and two angle brackets. Order code for "Accessory enclosed", option P8 "Wireless antenna wide area". Further information on the WLAN interface →  68 ...
Page 164: Service-Specific Accessories
Via the Internet: https://portal.endress.com/webapp/applicator Netilion lloT ecosystem: Unlock knowledge With the Netilion lloT ecosystem, Endress+Hauser enables you to optimize your plant' s performance, digitize workflows, share knowledge and improve collaboration. Drawing on decades of experience in process automation, Endress+Hauser offers process industries an lloT ecosystem that provides customers with data- driven insights.
Page 165: System Components
Proline Teqwave MW 300 HART Accessories 15.4 System components Accessories Description Proline flowmeter Promag To calculate the load rate, you need to know the volume flow of the medium. You can measure this value using a flowmeter, e.g. the Proline Promag W 400.
Page 166: Technical Data
Technical data Proline Teqwave MW 300 HART Technical data 16.1 Application The measuring device is suitable only for the measurement of solids in water-based liquids. Depending on the version ordered, the measuring device can also measure potentially explosive media. To ensure that the device remains in proper operating condition for its service life, use the measuring device only for media against which the process-wetted materials are sufficiently resistant.
Page 167 The volume flow can be read in as an input signal via the HART protocol or via the 4 to 20 mA current input from the Teqwave MW and used to calculate the load rate. The Proline W Promag 400 flowmeter can be ordered from Endress+Hauser →  165.
Page 168 Technical data Proline Teqwave MW 300 HART Open-circuit voltage ≤ 28.8 V (active) Possible input variables Volume flow of the medium for calculating the load rate Status input Order code "Output; input 2" (021) or "Output; input 3" (022): Option J: status input Maximum input values •...
Page 169: Output
Proline Teqwave MW 300 HART Technical data 16.4 Output Output signal Current output 4 to 20 mA HART Order code "Output; input 1" (020): Option BA: current output 4 to 20 mA HART Signal mode Can be set to: • Active •...
Page 170 Technical data Proline Teqwave MW 300 HART Pulse/frequency/switch output Order code "Output; input 2" (021) or "Output; input 3" (022): Option E: Pulse/frequency/switch output Function Can be configured as pulse, frequency or switch output Version Open collector Can be set to: •...
Page 171 Proline Teqwave MW 300 HART Technical data Relay output Order code "Output; input 2" (021) or "Output; input 3" (022): Option H: relay output Function Switch output Version Relay output, galvanically isolated Switching behavior Can be set to: • NO (normally open), factory setting •...
Page 172 Technical data Proline Teqwave MW 300 HART Pulse/frequency/switch output Pulse output Fault mode Choose from: • Actual value • No pulses Frequency output Fault mode Choose from: • Actual value • 0 Hz • Definable value between: 2 to 12 500 Hz...
Page 173: Power Supply
Proline Teqwave MW 300 HART Technical data Load Output signal →  169 Ex connection data Safety-related values Order code for "Output; input 1" Option Output/input type Safety-related values for output/input 1 26 (+) 27 (–) Current output 4 to 20 mA HART...
Page 174 Technical data Proline Teqwave MW 300 HART Device plug for connecting to the service interface: Order code for "Accessory mounted" Option NB, RJ45 M12 adapter (service interface) →  175 Order code for "Accessory mounted", option NB "Adapter RJ45 M12 (service interface)"...
Page 175: Performance Characteristics
Proline Teqwave MW 300 HART Technical data Cable entries • Cable gland: M20 × 1.5 with cable ⌀ 6 to 12 mm (0.24 to 0.47 in) • Thread for cable entry: • NPT ½" • G ½" • M20 Optional: M12 device plug for connection to the service interface Order code for "Accessories mounted", option NB: "Adapter RJ45 M12 (service...
Page 176: Mounting
Technical data Proline Teqwave MW 300 HART Repeatability Total solids Nominal diameter Standard deviation of total solids [mm] [in] [%TS] 50 to 80 2 to 3 0.02 100 to 300 4 to 12 0.01 Medium temperature ± 0.5 °C (± 0.9 °F) Electrical conductivity μS/cm...
Page 177 4 to 95%. Operating height According to EN 61010-1 • ≤ 2 000 m (6 562 ft) • > 2 000 m (6 562 ft) with additional overvoltage protection (e.g. Endress+Hauser HAW Series) Degree of protection Measuring device • IP66/67, Type 4X enclosure, suitable for pollution degree 4 •...
Page 178: Process
Technical data Proline Teqwave MW 300 HART 16.9 Process Medium temperature range 0 to +80 °C (+32 to +176 °F) Electrical conductivity To ensure correct measurement, the electrical conductivity of the medium must not exceed the measuring range of the temperature-compensated electrical conductivity.
Page 179 Proline Teqwave MW 300 HART Technical data Nominal diameter Weight [mm] [in] 12.6 kg (27.7 lb) 17.1 kg (37.8 lb) 23.9 kg (52.7 lb) 32.8 kg (72.3 lb) 37.8 kg (83.4 lb) Materials Transmitter Housing Order code for "Transmitter housing": Option A "Aluminum coated": aluminum, AlSi10Mg, coated...
Page 180: 16.11 Display And User Interface
Technical data Proline Teqwave MW 300 HART Device plug Electrical connection Material Plug M12x1 • Socket: Stainless steel, 1.4404 (316L) • Contact housing: Polyamide • Contacts: Gold-plated brass Measuring pipe Stainless steel: 1.4408 as per DIN EN 10213 (CF3M as per ASME A351) Antennas •...
Page 181 Proline Teqwave MW 300 HART Technical data Reliable operation • Operation in local language • Uniform operating philosophy applied to device and operating tools • Guided menus (wizards) for adjusting the device using medium samples • If replacing electronic modules, transfer the device configuration via the integrated memory (HistoROM backup) which contains the process and measuring device data and the event logbook.
Page 182 Technical data Proline Teqwave MW 300 HART Via remote display and operating module DKX001 • The remote display and operating module DKX001 is available as an optional extra . • The measuring device is always supplied with a dummy cover when the remote display and operating module DKX001 is ordered directly with the measuring device.
Page 183 Proline Teqwave MW 300 HART Technical data A0028747  39 Options for remote operation via HART protocol (active) Control system (e.g. PLC) Field Communicator 475 Computer with web browser (e.g. Microsoft Edge) to access the integrated device web server or computer with operating tool (e.g.
Page 184 Technical data Proline Teqwave MW 300 HART Service interface Via service interface (CDI-RJ45) A point-to-point connection can be established to configure the device onsite. With the housing open, the connection is established directly via the service interface (CDI-RJ45) of the device.
Page 185 Proline Teqwave MW 300 HART Technical data Function WLAN: IEEE 802.11 b/g (2.4 GHz) • Access point with DHCP server (factory setting) • Network Encryption WPA2-PSK AES-128 (in accordance with IEEE 802.11i) Configurable WLAN channels 1 to 11 Degree of protection...
Page 186 Technical data Proline Teqwave MW 300 HART Terminating the WLAN connection ‣ After configuring the device: Terminate the WLAN connection between the mobile terminal and measuring device. Supported operating tools Different operating tools can be used for local or remote access to the measuring device.
Page 187 Proline Teqwave MW 300 HART Technical data Supported functions Data exchange between the operating unit (such as a notebook, for example,) and measuring device: • Upload the configuration from the measuring device (XML format, configuration backup) • Save the configuration to the measuring device (XML format, restore configuration) •...
Page 188: 16.12 Certificates And Approvals
The device meets the legal requirements of the applicable EU Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. UKCA marking The device meets the legal requirements of the applicable UK regulations (Statutory Instruments).
Page 189 Proline Teqwave MW 300 HART Technical data Contact address Endress+Hauser UK: Endress+Hauser Ltd. Floats Road Manchester M23 9NF United Kingdom www.uk.endress.com RCM marking The measuring system meets the EMC requirements of the "Australian Communications and Media Authority (ACMA)". Ex-approval The devices are certified for use in hazardous areas and the relevant safety instructions are provided in the separate "Safety Instructions"...
Page 190: 16.13 Application Packages
The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.
Page 191: 16.14 Supplemental Documentation
For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. Standard documentation Technical information...
Page 192 Technical data Proline Teqwave MW 300 HART Special documentation Contents Documentation code Information on the Pressure Equipment Directive SD01614D Radio approvals for WLAN interface for A309/A310 SD01793D display module Heartbeat Verification application package SD03168D Remote display and operating module DKX001...
Page 193: Index
Proline Teqwave MW 300 HART Index Index Connection cable ......33 Connection preparations ..... . 35 Access authorization to parameters Connection tools .
Page 194 Index Proline Teqwave MW 300 HART Display values FieldCare ......70, 164 For locking status .
Page 195 Proline Teqwave MW 300 HART Index see Diagnostic message Navigation view see In alarm condition In the submenu ......51 see Operational display In the wizard .
Page 196 Index Proline Teqwave MW 300 HART Reset access code (Submenu) ....111 Settings Setup (Menu) ......82 Adapting the measuring device to the process Simulation (Submenu) .
Page 197 Proline Teqwave MW 300 HART Index Pulse/frequency/switch output 1 to n ..123 Turning the electronics housing Relay output 1 to n ..... . . 123 see Turning the transmitter housing Reset access code .
Page 198 *71637042* 71637042 www.addresses.endress.com...
