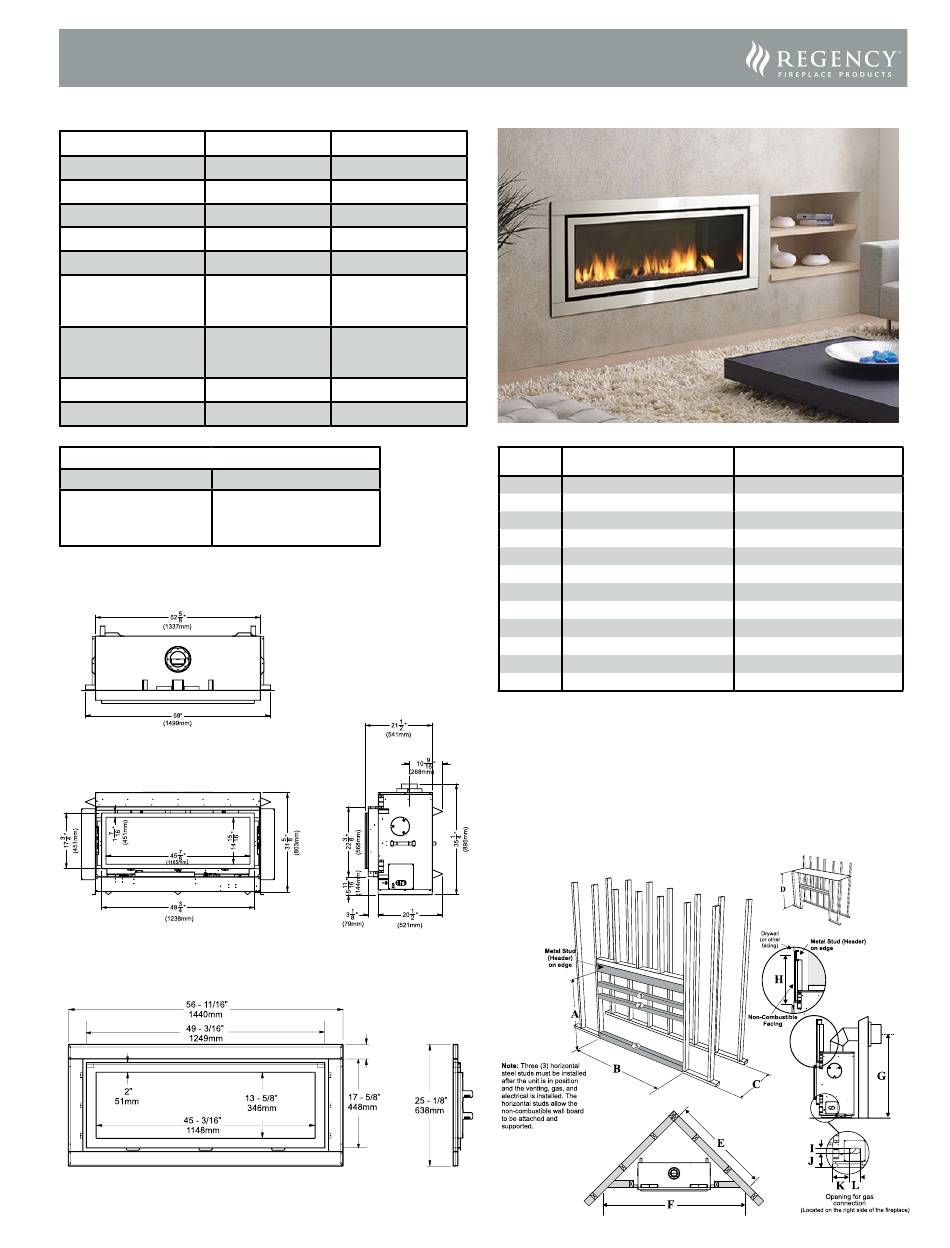

Model
HZ54E-NG11
Fuel Type
Natural Gas
Minimum Supply Pressure
5" W.C.(1.25 kPa)
Manifold Pressure - High
3.5" W.C. (0.87 kPa)
Manifold Pressure - Low
1.6" W.C. (0.40 kPa)
Orifice Size
Minimum Input
29,000 BTU/h (8.50
Altitude 0-4500 ft.
(0-1372m)
Maximum Input
41,500 BTU/h
Altitude 0-4500 ft.
(12.16 kW)
(0-1372m)
Vent Sizing
5" Inner / 8" Outer
CSA P.4.1
Approved Venting Systems
Flex Vent Systems:
FPI AstroCap™ Flex Vent
Rigid Pipe Vent Systems:
Simpson Direct Vent Pro®
Selkirk Direct-Temp™
Metal-Fab® Sure Seal
ICC Excel Direct
Unit Dimensions:
Faceplate & Door Frame Dimensions:

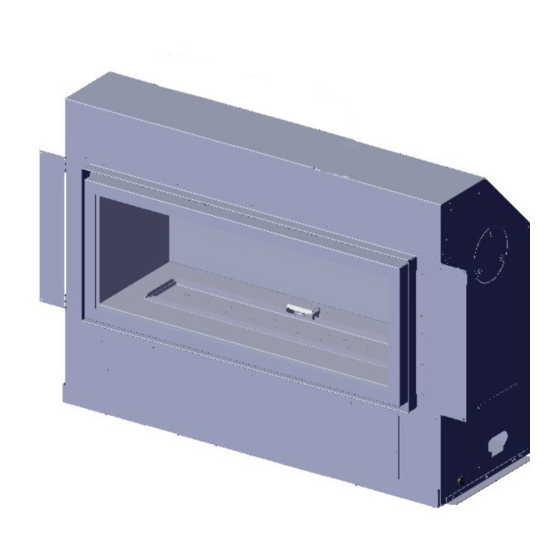

HZ54E Gas Fireplace
HZ54E-LP11
Propane Gas
12" W.C. (2.98 kPa)
10" W.C. (2.49 kPa)
6.4" W.C. (1.59 kPa)
#30 DMS
#49 DMS
30,000 BTU/h (8.79kW)
kW)
37,000 BTU/h
(10.84 kW)
5" Inner / 8" Outer
64.45%
67.72%
Framing Dimensions:
Framing
Description
Dimensions
A
Framing Height
B
Framing Width
C*
Framing Depth*
D
Minimum Height to Combustibles
E
Corner Wall Depth
F
Corner Facing Wall Width
G
Vent Centerline Height
R
Non-combustible Facing Height
S
Gas Connection Opening Height
T
Gas Connection Height
U
Gas Connection Inset
V
Gas Connection Opening Width
Framing depth measurement is noted with the side nailing strips set as
*
far forward on firebox as possible. The side nailing strips can be adjust-
ed back up to 3-1/8" to allow for varying thicknesses in non-combustible
material & wall finishes.
Important: The minimum framing dimensions given for height, width and
depth must be maintained even if using non combustible material.
Dangerous operating conditions will occur if minimum framing dimen-
sions are not adhered to.
HZ54E-11
46-5/8"
60"
23-3/4"
51"
69"
97-9/16"
44"
20"
1-1/2"
4"
7-1/4"
3-1/4"
HZ54E-11 Gas Fireplace
|
1

Advertisement

Table of Contents
loading

Summary of Contents for Regency HZ54E

  • Page 1 HZ54E Gas Fireplace Model HZ54E-NG11 HZ54E-LP11 Fuel Type Natural Gas Propane Gas Minimum Supply Pressure 5” W.C.(1.25 kPa) 12” W.C. (2.98 kPa) Manifold Pressure - High 3.5” W.C. (0.87 kPa) 10” W.C. (2.49 kPa) Manifold Pressure - Low 1.6” W.C. (0.40 kPa) 6.4”...
  • Page 2: Non-Combustible Requirements

    Passing through wall/ floor/ceiling - when 1-1/2" firestop is used. Installed Close Installed Close to Ceiling to Floor NON-COMBUSTIBLE REQUIREMENTS Metal Stud (header) 60-1/2" (1537mm) Wood Stud Wood Stud Non-combustible Material 52-7/8” Non-combustible Material 3-7/8" 5-1/2” ( 99mm) (140mm) HZ54E-11 Gas Fireplace...
  • Page 3: Optional Framing Kit

    4. Attach both vertical studs (478-015) and secure using 6 screws (2 at bottom, 2 at top and 2 on the sides) as shown NOTE: Ensure the flat side of the steel stud is facing the wood framing. 09.15.14 919-441 HZ54E-11 Gas Fireplace...
  • Page 4: Framing And Finishing

    This is to ensure the removal of the faceplate and for the safe operation of this appliance. 52-7/8 ” Unit shown without faceplate for Illustrative purposes only NOTE: The Verona Glass Surround (not shown) requires a: 60-1/16" W x 28- 5/8" H opening HZ54E-11 Gas Fireplace...
  • Page 5: Mantel Leg Clearances

    Standoff 20” Top of Fireplace 28-1/8” Opening To Unit Base Legs MANTEL LEG CLEARANCES Combustible mantel leg clearances as per diagram: 4”(102mm) MANTEL LEG Non-Combustible 1.5" (38mm) 5-1/2” (140mm) Allowable mantel leg projection 8” (203mm) 11” (279mm) HZ54E-11 Gas Fireplace...
  • Page 6 These venting systems, in combination with the HZ54E, have been Rigid Pipe Vent Systems offer a complete line of component parts for tested and listed as a direct vent system by Intertek. The location of the installation of both horizontal and vertical installations. Many items are termination cap must conform to the requirements in the Vent Terminal offered in decorative black, as well as galvanized finish.
  • Page 7: Venting Arrangements

    VENTING ARRANGEMENTS ALLOWABLE VERTICAL TERMINATIONS FOR HZ54E-NG10 The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations, using two 90 elbows, with Rigid Pipe Venting Systems for Natural Gas. Two 45 elbows equal to one 90 elbow.
  • Page 8 VENTING ARRANGEMENTS ALLOWABLE VERTICAL TERMINATIONS FOR HZ54E-LP The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations, using two 90 elbows, with Rigid Pipe Venting Systems for Propane. Two 45 elbows equal to one 90 elbow.
  • Page 9: Unit Installation With Horizontal Termination

    Cut and frame the 11 inch (279mm) square hole in the exterior wall where Diagram 6 the vent will be terminated. See diagram 2 for center line requirements. HZ54E-11 Gas Fireplace...

This manual is also suitable for:

Hz54e-ng11Hz54e-lp11
