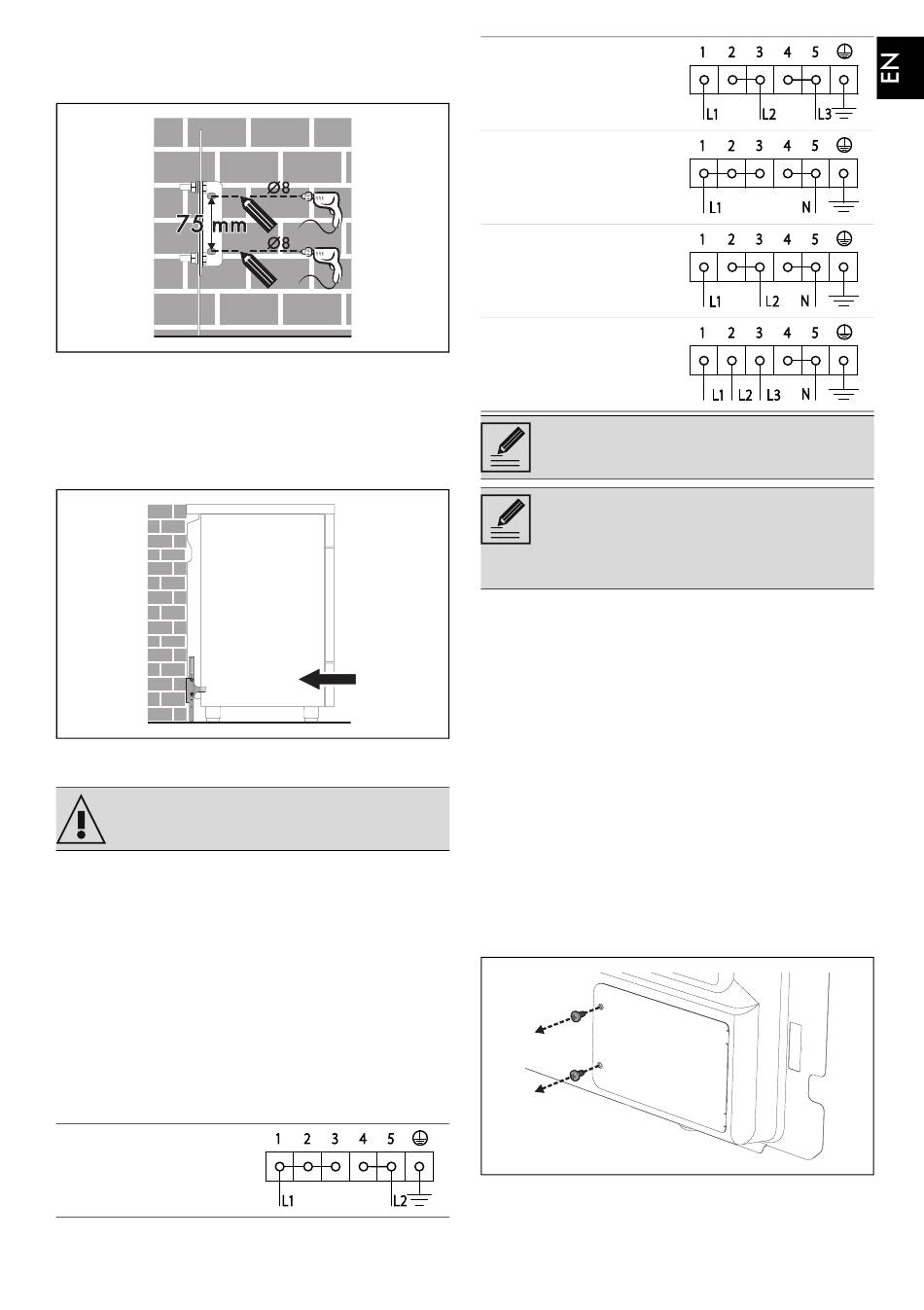

7. Move the bracket onto the wall and mark
the position of the holes to be drilled in the
wall.
8. After drilling the holes in the wall, use wall
plugs and screws to fasten the bracket to the
wall.
9. Push the cooker towards the wall, and at the
same time insert the bracket in the plate
fastened to the rear of the appliance.
Electrical connection
See General safety instructions.
General information
Check the mains characteristics against the data
indicated on the plate.
The identification plate bearing the technical
data, serial number and brand name is visibly
positioned on the appliance.
Do not remove this plate for any reason.
The appliance must be connected to ground
using a wire that is at least 20 mm longer than
the other wires.
The appliance can work in the following modes:
220-240 V 2~
3 x 4 mm ²
three-core cable
91477A388/A
220-240 V 3~
4 x 2.5 mm ²
four-core cable
220-240 V 1N~
3 x 4 mm ²
three-core cable
380-415 V 2N~
4 x 2.5 mm ²
four-core cable
380-415 V 3N~
5 x 1.5 mm ²
five-core cable
The values indicated refer to the cross-
section of the internal conductor.
The aforementioned power cables are
sized taking into account the
coincidence factor (in compliance with
standard EN 60335-2-6).
Fixed connection
Fit the power line with an all-pole circuit breaker
with a contact separation distance sufficient to
provide complete disconnection in category III
overvoltage conditions, pursuant to installation
regulations.
For the Australian/New Zealand market:
The circuit breaker incorporated in the fixed
connection must comply with AS/NZS 3000.
Accessing the terminal board
To connect the power supply cable, you have to
access the terminal board on the rear casing
1. Remove the screws fastening the plate to the
rear casing
INSTALLATION - 25
