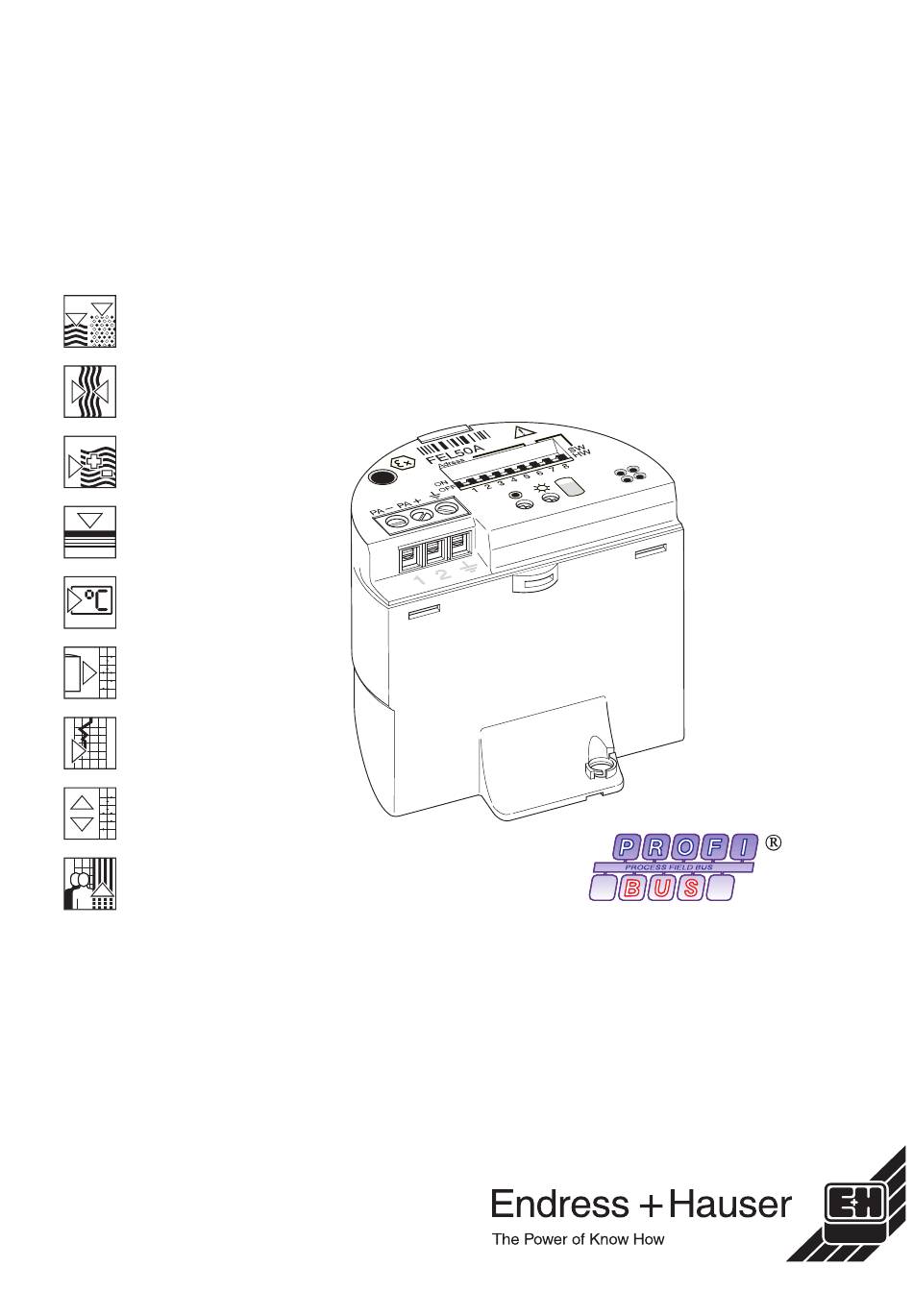

BA 141F/00/en/12.01 (b)
52012215
Valid as of software version:
V 1.0
Electronic insert FEL 50 A
for Liquiphant M/S (HT)
PROFIBUS PA
Operating Instructions

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser FEL 50 A

Summary of Contents for Endress+Hauser FEL 50 A

  • Page 1 Electronic insert FEL 50 A BA 141F/00/en/12.01 (b) 52012215 for Liquiphant M/S (HT) Valid as of software version: V 1.0 PROFIBUS PA Operating Instructions...

  • Page 2: Brief Operating Instructions

    Returning devices If you return a device to Endress+Hauser for repairs or calibration, please note the information in the Operating Instructions ... (basic device), see also the table on "Supplementary documentation" page 39...

  • Page 3: Table Of Contents

    Contents Contents Brief operating instructions Contact addresses of Endress+Hauser ..36 ... . . Technical data ....

  • Page 4: Safety Instructions

    Mounting, start-up, operation The Liquiphant M and Liquiphant S (HT) with electronic insert FEL 50 A is built to the state-of-the-art and to be fail-safe and meets the appropriate rules and EC directives. However, if you use it improperly or other than for its designated use, it may pose application-specific hazards, e.g.

  • Page 5: Return

    Liquiphant M/S (HT), FEL 50 A PROFIBUS PA 1 Safety instructions Return See KA ... (Basic device), table "Supplementary documentation" page 39 Notes on safety conventions and icons To highlight safety-relevant or alternative procedures, we have set the following safety instructions for which each individual instruction is indicated with an appropriate pictogram.

  • Page 6: Identification

    LIQUIPHANT M Order Code FTL 5#–######A### #### mm FTL 51 Fig. 1 Information on the nameplate of the Liquiphant M with electronic insert FEL 50 A (Example) 2.1.2 Product structure See KA ... (Basic device), table "Supplementary documentation" page 39. Delivery "...

  • Page 7: Registered Trademarks

    Liquiphant M/S (HT), FEL 50 A PROFIBUS PA 2 Identification EC directives. Endress+Hauser confirms successful testing of the device by affixing the CE mark. PNO Certification The device was certified according to the PNO standard (Profile 3.0). Registered trademarks ®...

  • Page 8: Mounting

    3 Installation Liquiphant M/S (HT), FEL 50 A PROFIBUS PA Installation Incoming acceptance, transport and storage 3.1.1 Incoming acceptance Check the packaging and the contents for damage. Check the shipment, make sure nothing is missing and that the scope of supply matches your order.

  • Page 9: Wiring

    Liquiphant M/S (HT), FEL 50 A PROFIBUS PA 4 Wiring Wiring Warning! • When connecting Ex-certified devices, see the notes and wiring diagrams in the Ex-specific supplement to these Operating Instructions. Please do not hesitate to contact your E+H representative if you have any questions.
  • Page 10 4 Wiring Liquiphant M/S (HT), FEL 50 A PROFIBUS PA • If repeaters are used the maximum permissible cable length is doubled. A maximum of four repeaters are permitted between user and master. Maximum spur length The line between distribution box and field unit is described as a spur.

  • Page 11: Connection Of The Limit Switch

    Liquiphant M/S (HT), FEL 50 A PROFIBUS PA 4 Wiring Connection of the limit switch 4.2.1 Connection with cable gland Procedure: 1. Unscrew connection compartment cover from transmitter housing. 2. Run the PROFIBUS cable through the appropriate cable entries. 3. Connect the cables in accordance with the wiring diagram: see Fig. 5 and Fig. 6 "...
  • Page 12 4 Wiring Liquiphant M/S (HT), FEL 50 A PROFIBUS PA FEL50A Address 1 2 3 4 5 6 7 8 PA– U – : 9 V…32 V (DC) … Fig. 6 Assignment of screw terminals PROFIBUS PA line: Terminal No. 1: PA –...

  • Page 13: Connection Data

    Liquiphant M/S (HT), FEL 50 A PROFIBUS PA 4 Wiring 7 = Positioning lug Connection data Connection data PROFIBUS PA ≤ 30 VDC ≤ 500 mA ≤ 5.5 W ≤ 10.0 µH ≤ 5 nF Cable entry Cable gland: M20x1.5 or Pg 13.5 Cable entry: G ½...
  • Page 14 4 Wiring Liquiphant M/S (HT), FEL 50 A PROFIBUS PA 45.0 mm (1.766") 150/300 mm PA– M 12 x 1 M20*1.5 PA– Fig. 8 Connectors for connecting to the PROFIBUS PA A = Protection cap for device plug B = Fieldbus device plug...

  • Page 15: Potential Equalisation

    Liquiphant M/S (HT), FEL 50 A PROFIBUS PA 4 Wiring Potential matching system For maximum EMC protection, e.g. near frequency convertors, it is advisable to connect the housing and cable screening using a potential matching line (PAL) (maximum wire cross-sectional area: 4 mm², fixed conductor).

  • Page 16: Post Connection Check

    4 Wiring Liquiphant M/S (HT), FEL 50 A PROFIBUS PA Post connection check Perform the following checks after completing electrical mounting of the measuring device: Device condition and specifications Notes − Are cables or the device damaged (visual inspection)? Notes...

  • Page 17: Operation

    PROFIBUS DP/PA interface. For this, there are special configuration and/or operating programs from different manufacturers available to the user. 2. Miniature switch The settings from the PROFIBUS PA device bus address can be made using the miniature switch on the surface of the FEL 50 A. FEL50A Address Address...

  • Page 18: On-Site Configuration/Operation

    5 Operation Liquiphant M/S (HT), FEL 50 A PROFIBUS PA On-site configuration/operation Only the device address can be set on the electronic insert. The two light emitting diodes indicate standby or the status of the tuning fork (covered/free). Address FEL50A...
  • Page 19 Liquiphant M/S (HT), FEL 50 A PROFIBUS PA 5 Operation Hardware Addressing Example: 2 + 8 = 10 = Address FEL50A Address 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Hardware addressing Fig.

  • Page 20: Communication With Profibus Pa

    5 Operation Liquiphant M/S (HT), FEL 50 A PROFIBUS PA Communication PROFIBUS PA 5.3.1 System architecture Personal computer with Commuwin II, Proficard or Profiboard Segment coupler PROFIBUS DP PROFIBUS PA Fig. 12 System architecture PROFIBUS DP/PA A maximum of 32 transmitters (10 in hazardous area EEx ia IIC acc. to FISCO model) can be connected to the bus per segment.
  • Page 21 Liquiphant M/S (HT), FEL 50 A PROFIBUS PA 5 Operation 5.3.2 Device data bases (GSD) The device data base (x.gsd) contains a description of the properties of a PROFIBUS PA device, e.g. which data transmission rate is supported by the device or which digital information in which format the PLC receives from the device.
  • Page 22 5 Operation Liquiphant M/S (HT), FEL 50 A PROFIBUS PA 5.3.3 Cyclical data exchange Block model of the Liquiphant M/S (HT) with FEL 50 A Measured variable Physical Bock Sensor Device-specific properties, Signal evaluation e.g. measuring point designation Primary value...
  • Page 23 Liquiphant M/S (HT), FEL 50 A PROFIBUS PA 5 Operation Liquiphant → PLC (Input data) With the Data_Exchange service, a PLC can read input data from the Liquiphant in the form of an answer mail. The cyclic data telegram has the following structure:...
  • Page 24 5 Operation Liquiphant M/S (HT), FEL 50 A PROFIBUS PA 5.3.4 Acyclical data exchange With acyclic data exchange access, the instrument parameters in the physical, transducer and discrete input block can be accessed as can the device management with as PROFIBUS DP master class 2 (e.g. Commuwin II).
  • Page 25 Liquiphant M/S (HT), FEL 50 A PROFIBUS PA 5 Operation Parameter E+H Matrix Slot Index Size Type Read Write Storage (CW II) [bytes] Class TARGET_MODE UNSIGNED8 static MODE_BLK DS-37* dynamic ALARM_SUM DS-42* dynamic Block parameter PV_D V0H0 DS-34 constant E+H Parameter...
  • Page 26 5 Operation Liquiphant M/S (HT), FEL 50 A PROFIBUS PA Parameter E+H Matrix Slot Index Size Type Read Write Storage (CW II) [bytes] Class E+H Parameter ACTUAL_ERROR Uinteger16 dynamic LAST_ERROR Uinteger16 dynamic/ non-vol. UP_DOWN_FEAT_ OSTRING constant SUPPORT DEVICE_BAS_ADDRESS Integer8 dynamic...
  • Page 27 Liquiphant M/S (HT), FEL 50 A PROFIBUS PA 5 Operation 5.3.5 Parameter access with Commuwin II Using a PROFIBUS DP master class 2 such as Commuwin II, you can access the block parameters. Commuwin II runs on an IBM compatible PC or Notebook.
  • Page 28 5 Operation Liquiphant M/S (HT), FEL 50 A PROFIBUS PA Fig. 14 Graphic operation with "Status" Fig. 15 Graphic operation with "Calibration" Note! You can find further information on the Commuwin II operating program in the operating instructions BA 124F.

  • Page 29: Commissioning

    Liquiphant M/S (HT), FEL 50 A PROFIBUS PA 6 Commissioning Commissioning Mounting and function check Make sure that the Mounting and connection checks have been carried out before you commission your measuring point: • "Connection check" checklist (see page 16).
  • Page 30 6 Commissioning Liquiphant M/S (HT), FEL 50 A PROFIBUS PA 6.2.1 Operation using Commuwin II matrix Matrix field Meaning Selection/Input V3H2 Changing the density factor >0.7 g/cm³ >0.5 g/cm³ → V3H3 Inversion of the output value Not inverted: Sensor covered Output "1"...
  • Page 31 Liquiphant M/S (HT), FEL 50 A PROFIBUS PA 6 Commissioning 6.2.2 Commuwin II operating matrix Endress+Hauser...

  • Page 32: Maintenance

    7 Maintenance Liquiphant M/S (HT), FEL 50 A PROFIBUS PA Maintenance See KA ... (Basic device), table "Supplementary documentation" page 39. Endress+Hauser...

  • Page 33: Accessories

    Liquiphant M/S (HT), FEL 50 A PROFIBUS PA 8 Accessories Accessories There is a range of accessories available for the Liquiphant. These can be ordered separately from Endress+Hauser. Commuwin II Operating program for intelligent devices → Order No.: FXS 113-### Proficard For connection of a laptop to the PROFIBUS →...

  • Page 34: Troubleshooting

    9 Troubleshooting Liquiphant M/S (HT), FEL 50 A PROFIBUS PA Troubleshooting System error messages Code Error description Cause Action 101 A Checksum error • Reset Total reset and recalib. • If alarm still present after req. reset, replace electronics 102 A Checksum error •...

  • Page 35: Spare Parts

    Liquiphant M/S (HT), FEL 50 A PROFIBUS PA 9 Troubleshooting Spare parts For spare parts KA ... (Basic device) table "Supplementary documentation" page 39. Note! You can order spare parts directly from your E+H service organisation using the serial number which is printed on the transmitter nameplate (see page 6). The corresponding spare part number is found on every spare part.

  • Page 36: Software History

    9 Troubleshooting Liquiphant M/S (HT), FEL 50 A PROFIBUS PA Software history Software version / Changes to software Changes to documentation date V 1.00 / 10.2001 Original software. Compatible with: – Commuwin II (version 2.05.03 and higher) Contact addresses of Endress+Hauser On the rear page of these operating instructions, you can find the contact addresses of Endress+Hauser, to whom you should address your queries.

  • Page 37: Technical Data

    Liquiphant M/S (HT), FEL 50 A PROFIBUS PA 10 Technical data Technical data 10.1 Technical data at a glance Application Application Maximum or minimum detection in tanks or piping with fluids of all types, also in hazardous areas and in the food and pharmaceuticals industries.
  • Page 38 10 Technical data Liquiphant M/S (HT), FEL 50 A PROFIBUS PA Measuring accuracy Reference operating • Ambient temperature: 23 °C conditions • Medium temperature: 23 °C • Fluid density: 1 g/cm (water) • Medium viscosity: 1 mm • Medium pressure: 0 bar •...
  • Page 39 1 yellow LED: Covered status of tuning fork/error display Certificates and approvals CE mark The measuring system is in conformity with the statutory requirements of the EC Directives. Endress+Hauser confirms successful testing of the device by affixing the CE mark. Overspill protection to WHG...
  • Page 40 Canada Philippines Poland Minsk ❑ Endress+Hauser Ltd. ❑ Endress+Hauser Philippines Inc. ❑ Endress+Hauser Polska Sp. z o.o. Tel. (0172) 263166, Fax (0172) 263111 Burlington, Ontario Metro Manila Warszawy Tel. (905) 6819292, Fax (905) 6819444 Tel. (2) 3723601-05, Fax (2) 4121944 Belgium / Luxembourg Tel.
