NI PCI-1410 User Manual
High-Quality Monochrome Image Acquisition Device
NI PCI-1410 User Manual
February 2007
373793C-01
Download from Www.Somanuals.com. All Manuals Search And Download.

Advertisement

Table of Contents
loading

Summary of Contents for National Instruments NI PCI-1410

  • Page 1 NI Vision NI PCI-1410 User Manual High-Quality Monochrome Image Acquisition Device NI PCI-1410 User Manual February 2007 373793C-01 Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 2 Thailand 662 278 6777, Turkey 90 212 279 3031, United Kingdom 44 (0) 1635 523545 For further support information, refer to the Technical Support and Professional Services appendix. To comment on National Instruments documentation, refer to the National Instruments Web site at and enter ni.com/info the info code feedback ©...
  • Page 3 Warranty The NI PCI-1410 is warranted against defects in materials and workmanship for a period of one year from the date of shipment, as evidenced by receipts or other documentation. National Instruments will, at its option, repair or replace equipment that proves to be defective during the warranty period.
  • Page 4 These classes are known as Class A (for use in industrial-commercial locations only) or Class B (for use in residential or commercial locations). All National Instruments (NI) products are FCC Class A products. Depending on where it is operated, this Class A product could be subject to restrictions in the FCC rules. (In Canada, the Department of Communications (DOC), of Industry Canada, regulates wireless interference in much the same way.) Digital...
  • Page 5 Conventions The following conventions are used in this manual: <> Angle brackets that contain numbers separated by an ellipsis represent a range of values associated with a bit or signal name—for example, AO <3..0>. » The » symbol leads you through nested menu items and dialog box options to a final action.
  • Page 6: Table Of Contents

    Chapter 1 Introduction About the NI 1410 Device .....................1-1 Software Overview ......................1-2 NI-IMAQ Driver Software ................1-3 National Instruments Application Software ............1-3 Vision Builder for Automated Inspection.........1-3 Vision Development Module ............1-4 Integration with DAQ and Motion Control .............1-5 Chapter 2 Hardware Overview Functional Overview......................2-1...
  • Page 7 Contents Appendix A Custom Cables Appendix B Technical Support and Professional Services Glossary Index NI PCI-1410 User Manual viii ni.com Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 8: About The Ni 1410 Device

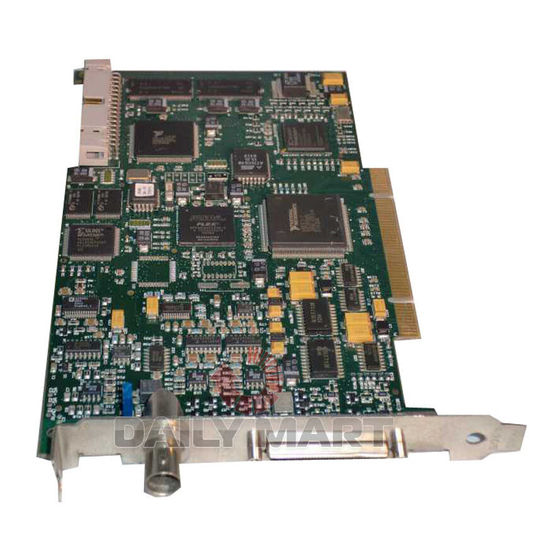

    Introduction This chapter describes the NI PCI-1410 (NI 1410) device and its software programming options. About the NI 1410 Device The NI 1410 is a high-accuracy, monochrome image acquisition device for PCI that supports RS-170, CCIR, NTSC, and PAL video standards, as well as nonstandard cameras from any of four input sources.
  • Page 9: Software Overview

    4 RTSI Bus Connector Figure 1-1. NI PCI-1410 Parts Locator Diagram Software Overview Programming the NI 1410 requires the NI-IMAQ driver software for controlling the hardware. National Instruments also offers the following application software packages for analyzing and processing your acquired images. •...
  • Page 10: Ni-Imaq Driver Software

    NI-IMAQ performs all functions required for acquiring and saving images but does not perform image analysis. For image analysis functionality, refer to the National Instruments Application Software section of this chapter. NI-IMAQ also provides the interface path between the NI 1410 and ™...
  • Page 11: Vision Development Module

    LabVIEW VI creation wizard, Vision Assistant can create LabVIEW VI block diagrams that perform the prototype you created in Vision Assistant. You then can use LabVIEW to add functionality to the generated VI. NI PCI-1410 User Manual ni.com Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 12: Integration With Daq And Motion Control

    Integration with DAQ and Motion Control Platforms that support NI-IMAQ also support NI-DAQ and a variety of National Instruments DAQ devices. This allows integration between image acquisition devices and National Instruments DAQ products. Use National Instruments high-performance stepper and servo motion...
  • Page 13: Hardware Overview

    Hardware Overview This chapter describes the features of the NI PCI-1410 device and includes information about acquisition modes, analog front-end considerations, and clamping. Functional Overview The NI 1410 features a flexible, high-speed data path optimized for the acquisition and formatting of video data from analog cameras. The NI 1410 can acquire from RS-170/NTSC, CCIR/PAL, VGA, and progressive scan cameras, as well as from non-standard cameras such as line scan cameras.
  • Page 14: Video Multiplexer

    9 MHz. The 9 MHz bandwidth setting is available using a 5th order Butterworth lowpass filter. 10-Bit ADC The 10-bit ADC digitizes the conditioned video signal. NI PCI-1410 User Manual ni.com Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 15: Digital Filter And Lut

    PCI Interface The NI 1410 implements the PCI interface with a National Instruments custom application-specific integrated circuit (ASIC), the PCI MITE. The PCI interface can transfer data at a maximum rate of 132 MB/s in bus master mode.
  • Page 16: Acquisition And Region-Of-Interest Control

    The seven trigger lines on the RTSI bus provide a flexible interconnection scheme between multiple image acquisition devices, as well as between National Instruments DAQ or Motion Control devices. Digital Input/Output Circuitry The digital input/output (I/O) circuitry routes, monitors, and drives the external trigger lines, RTSI bus lines, and camera control lines.
  • Page 17: Analog Front End Considerations

    If this occurs, an acquired image may appear to have dark and light bands, as in the following image. © National Instruments Corporation NI PCI-1410 User Manual Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 18 • Minimum Clamp Start is 100 • Maximum Clamp Stop is 120 • Difference between Clamp Start and Clamp Stop is at least 10 NI PCI-1410 User Manual ni.com Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 19: Signal Connections

    Signal Connections This chapter describes cable connections for the NI PCI-1410 device. Video Input Channels The video input channels for the NI 1410 support two input modes—referenced single-ended (RSE) and differential (DIFF). A channel configured in DIFF mode uses two inputs. One input connects to the positive terminal, and the other connects to the negative terminal.
  • Page 20: Digital I/O Connector

    VIDEO1, VIDEO2, and VIDEO3), the external digital I/O lines, triggers, and external signals. To access these connections, you can build your own custom cable or use one of the optional National Instruments cables. If you are using the VIDEO0 connection on the 68-pin VHDCI connector, you must Note unplug the BNC cable.
  • Page 21 CTRL(3)– CTRL(3)+ DGND TRIG(0) DGND TRIG(1) DGND TRIG(2) DGND TRIG(3) CHASSISGND CHASSISGND PCLKIN– PCLKIN+ DGND DGND RESERVED RESERVED Figure 3-3. I/O Connector Pin Assignments © National Instruments Corporation NI PCI-1410 User Manual Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 22: Digital I/O Connector Signal Connection Descriptions

    CSYNCOUT is a TTL output of the internal CSYNC signal. In CSYNC external mode, CSYNCOUT maps directly to CSYNCIN. In standard mode, the synchronization circuitry of the NI 1410 generates CSYNCOUT. NI PCI-1410 User Manual ni.com Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 23 DGND is a direct connection to digital GND on the NI 1410. CHASSIS_GND CHASSIS_GND is a direct connection to the computer’s chassis, which is grounded through the power cord. © National Instruments Corporation NI PCI-1410 User Manual Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 24 This appendix lists specifications for building custom cables to use with the NI PCI-1410 device. Cable Specification National Instruments offers cables and accessories for you to connect to video sources, trigger sources, or synchronization sources. Use the following guidelines when developing your own cables: For the video inputs, use a 75 Ω...
  • Page 25 Technical Support and Professional Services Visit the following sections of the National Instruments Web site at for technical support and professional services: ni.com • Support—Online technical support resources at ni.com/support include the following: – Self-Help Resources—For answers and solutions, visit the...
  • Page 26 You also can visit the Worldwide Offices section of to access the branch ni.com/niglobal office Web sites, which provide up-to-date contact information, support phone numbers, email addresses, and current events. NI PCI-1410 User Manual ni.com Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 27 Composite synchronization signal. Signals in a color video system that multiplex all picture information into a single signal, such as NTSC, PAL, or SECAM. © National Instruments Corporation NI PCI-1410 User Manual Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 28 NI PCI-1410 User Manual ni.com Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 29 See buffer. Multiplexer. A switching device with multiple inputs that selectively connects one of its inputs to its output. © National Instruments Corporation NI PCI-1410 User Manual Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 30 Glossary NI-IMAQ Driver software for National Instruments image acquisition hardware. NTSC National Television Standards Committee. The committee that developed the color video standard used primarily in North America, which uses 525 lines per frame. See also PAL. Phase Alternation Line. One of the European video color standards.
  • Page 31 Also called a grounded measurement system. RTSI bus Real-Time System Integration Bus. The National Instruments timing bus that connects image acquisition and DAQ boards directly by means of connectors on top of the boards for precise synchronization of functions.
  • Page 32 2-4 genlock and synchronization circuitry, 2-3 block diagram, 2-2 CSYNCIN± signal (table), 3-4 CSYNC mux, 2-3 CSYNCOUT signal (table), 3-4 digital antichrominance filter, 2-3 © National Instruments Corporation NI PCI-1410 User Manual Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 33 2-4 RTSI bus, 2-4 LabVIEW Vision Builder AI, 1-4 lock mode, external, 2-4 lookup table, 10-bit LUT, 2-3 motion control, integrating with, 1-5 NI PCI-1410 User Manual ni.com Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 34 SYNC mux, 2-3 Web resources, B-1 synchronization circuitry, 2-3 technical support, B-1 training and certification (NI resources), B-1 TRIG<3..0> signal (table), 3-5 troubleshooting (NI resources), B-1 © National Instruments Corporation NI PCI-1410 User Manual Download from Www.Somanuals.com. All Manuals Search And Download.
