- Page 1 OPERATING INSTRUCTIONS AND SPECIFICATIONS NI 9263 4-Channel, ±10 V, 16-Bit Analog Voltage Output Module Français Deutsch ni.com/manuals...
-
Page 2: Safety Guidelines
This document describes how to use the National Instruments 9263 and includes specifications and terminal assignments for the NI 9263. Visit and enter to determine ni.com/info rdsoftwareversion which software you need for the modules you are using. For information about installing, configuring, and programming the system, refer to the system documentation. -
Page 3: Safety Guidelines For Hazardous Voltages
/60 VDC), you must ensure that devices and circuits connected to the module are properly insulated from human contact. You must use the NI 9932 connector backshell kit to ensure that the terminals are not accessible. © National Instruments Corp. NI 9263 Operating Instructions and Specifications... -
Page 4: Safety Guidelines For Hazardous Locations
Figure 1. NI 9932 Connector Backshell Safety Guidelines for Hazardous Locations The NI 9263 is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous locations; Class I, Zone 2, AEx nA IIC T4, and Ex nA IIC T4 hazardous locations;... - Page 5 II 3G and is suitable for use in Zone 2 hazardous locations, in ambient temperatures of –40 °C ≤ Ta ≤ 70 °C. If you are using the NI 9263 in Gas Group IIC hazardous locations, you must use the device in an NI chassis that has been evaluated as Ex nC IIC T4, EEx nC IIC T4, Ex nA IIC T4, or Ex nL IIC T4 equipment.
- Page 6 Power supply and module cables must be separated on opposite sides of the enclosure and must enter and exit through opposing enclosure walls. NI 9263 Operating Instructions and Specifications ni.com...
-
Page 7: Connecting The Ni 9263

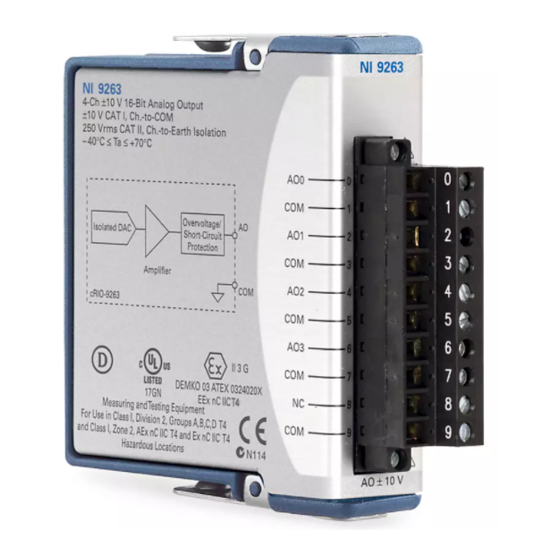

Connecting the NI 9263 The NI 9263 has a 10-terminal, detachable screw-terminal connector that provides connections for 4 analog output channels. Figure 2. NI 9263 Terminal Assignments © National Instruments Corp. NI 9263 Operating Instructions and Specifications... - Page 8 Each channel of the NI 9263 has an AO terminal to which you can connect the positive lead of a load. Each channel also has a common terminal, COM, and there is an additional COM terminal at the bottom of the connector. All of the COM terminals are internally connected to the isolated ground reference of the module.
- Page 9 Protection Amplifier NI 9263 Figure 4. Output Circuitry for One Channel of the NI 9263 When the module powers on, the channels output the startup voltage. Refer to the Specifications section for more information about startup voltage. Refer to the software help for information about configuring startup output states in software.
-
Page 10: Wiring For High-Vibration Applications
Wiring for High-Vibration Applications If an application is subject to high vibration, National Instruments recommends that you either use ferrules to terminate wires to the detachable screw-terminal connector or use the NI 9932 backshell kit to protect the connections. Refer to Figure 5 for an illustration of using ferrules. -
Page 11: Sleep Mode
In sleep mode, the system consumes minimal power and may dissipate less heat than it does in normal mode. Refer to the Specifications section for more information about power consumption and thermal dissipation. © National Instruments Corp. NI 9263 Operating Instructions and Specifications... -
Page 12: Specifications
Type of DAC ........String Power-on output state ....... Channels off Startup/power-down voltage ..... 0 V Output voltage range Nominal........±10 V Minimum........±10.3 V Typical ........±10.7 V Maximum ........±11 V NI 9263 Operating Instructions and Specifications ni.com... - Page 13 Uncalibrated, typ (25 °C, ±5 °C) 0.3% 0.25% * Range equals ±10.7 V Stability Gain drift ........6 ppm/°C Offset drift ........80 μV/°C Protection Overvoltage ........ ±30 V Short-circuit........ Indefinitely © National Instruments Corp. NI 9263 Operating Instructions and Specifications...
- Page 14 Settling time (100 pF load, to 1 LSB) Full-scale step......20 μs 3 V step........10 μs 0.1 V step........8 μs Glitch energy (256 steps, worst case)...... 2 mV for 2 μs NI 9263 Operating Instructions and Specifications ni.com...
-
Page 15: Power Requirements
Power consumption from chassis Active mode ....... 625 mW max Sleep mode ......... 25 μW max Thermal dissipation (at 70 °C) Active mode ....... 625 mW max Sleep mode ......... 25 μW max © National Instruments Corp. NI 9263 Operating Instructions and Specifications... -
Page 16: Physical Characteristics
Torque for screw terminals ....0.5 to 0.6 N · m (4.4 to 5.3 lb · in.) Ferrules ..........0.25 mm to 2.5 mm Weight..........150 g (5.3 oz) NI 9263 Operating Instructions and Specifications ni.com... - Page 17 This category refers to local-level electrical distribution, such as that provided by a standard wall outlet, for example, 115 V for U.S. or 230 V for Europe. Do not connect the NI 9263 to signals or use Caution for measurements within Measurement Categories III or IV.
- Page 18 • IEC 61010-1, EN 61010-1 • UL 61010-1, CSA 61010-1 For UL and other safety certifications, refer to the Note product label or the Online Product Certification section. NI 9263 Operating Instructions and Specifications ni.com...
-
Page 19: Electromagnetic Compatibility
ICES-001: Class A emissions For the standards applied to assess the EMC of this Note product, refer to the Online Product Certification section. For EMC compliance, operate this device with Note shielded cabling. © National Instruments Corp. NI 9263 Operating Instructions and Specifications... -
Page 20: Online Product Certification
NI 9932 backshell kit to protect the connections. Operating vibration Random (IEC 60068-2-64)..5 g , 10 to 500 Hz Sinusoidal (IEC 60068-2-6) ..5 g, 10 to 500 Hz NI 9263 Operating Instructions and Specifications ni.com... - Page 21 18 shocks at 6 orientations Environmental National Instruments C Series modules are intended for indoor use only but may be used outdoors if installed in a suitable enclosure. Refer to the manual for the chassis you are using for more information about meeting these specifications.
-
Page 22: Environmental Management
Maximum altitude......2,000 m Pollution Degree (IEC 60664) ..2 Environmental Management National Instruments is committed to designing and manufacturing products in an environmentally responsible manner. NI recognizes that eliminating certain hazardous substances from our products is beneficial to the environment and to NI customers. - Page 23 China RoHS compliance, go to ni.com/ environment/rohs_china Calibration You can obtain the calibration certificate and information about calibration services for the NI 9263 at ni.com/calibration Calibration interval ......1 year © National Instruments Corp. NI 9263 Operating Instructions and Specifications...
-
Page 24: Where To Go For Support
Where to Go for Support The National Instruments Web site is your complete resource for technical support. At you have access to ni.com/support everything from troubleshooting and application development self-help resources to email and phone assistance from NI Application Engineers. - Page 25 Sweden 46 (0) 8 587 895 00, Switzerland 41 56 2005151, Taiwan 886 02 2377 2222, Thailand 662 278 6777, Turkey 90 212 279 3031, United Kingdom 44 (0) 1635 523545 © National Instruments Corp. NI 9263 Operating Instructions and Specifications...
- Page 26 National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies.
