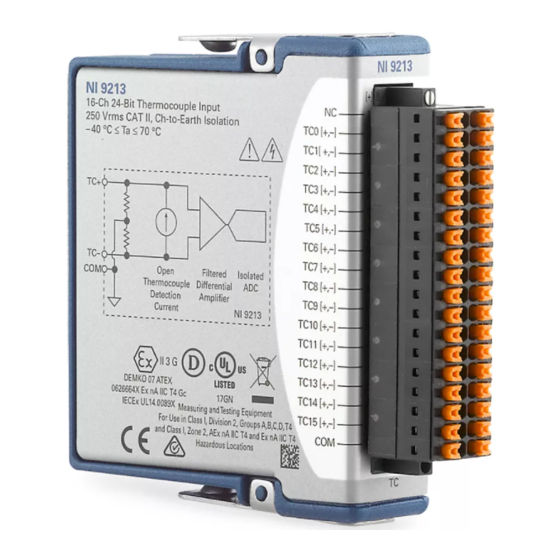

National Instruments NI 9213 Getting Started Manual

16 tc, ±78 mv, 24 bit, 75 s/s aggregate
Hide thumbs Also See for NI 9213:
Table of Contents

Advertisement

Quick Links

GETTING STARTED GUIDE
NI 9213
16 TC, ±78 mV, 24 Bit, 75 S/s Aggregate

Advertisement

Table of Contents
loading

Related Manuals for National Instruments NI 9213

Summary of Contents for National Instruments NI 9213

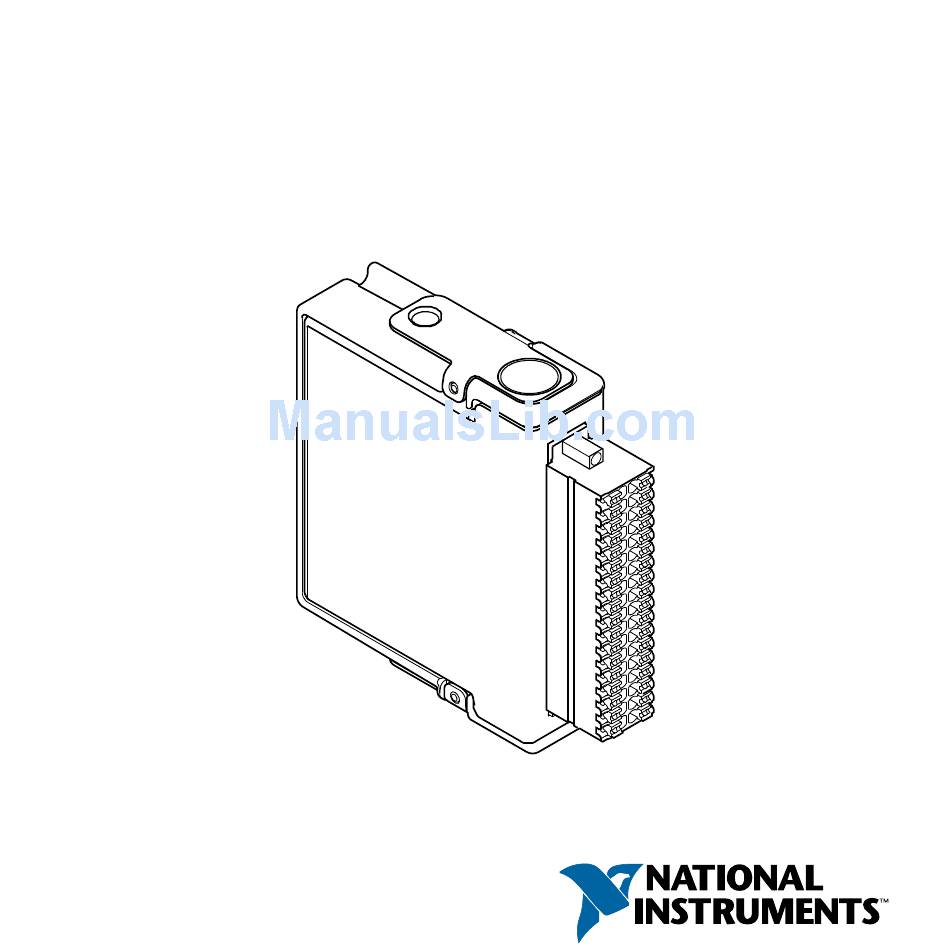

  • Page 1 GETTING STARTED GUIDE NI 9213 16 TC, ±78 mV, 24 Bit, 75 S/s Aggregate...

  • Page 2: Safety Guidelines

    This document explains how to connect to the NI 9213. Before you begin, complete the software and Note hardware installation procedures in your chassis documentation. The guidelines in this document are specific to Note the NI 9213. The other components in the system might not meet the same safety ratings.

  • Page 3: Safety Voltages

    4,000 m dielectric withstand test Measurement Category II is for measurements performed on circuits directly connected to the electrical distribution system. This category refers to local-level electrical distribution, such as NI 9213 Getting Started Guide | © National Instruments | 3...

  • Page 4: Safety Guidelines For Hazardous Voltages

    115 V for U.S. or 230 V for Europe. Do not connect the NI 9213 to signals or use Caution for measurements within Measurement Categories III or IV. Safety Guidelines for Hazardous Voltages If hazardous voltages are connected to the device, take the following precautions.

  • Page 5: Safety Guidelines For Hazardous Locations

    Safety Guidelines for Hazardous Locations The NI 9213 is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous locations; Class I, Zone 2, AEx nA IIC T4 and Ex nA IIC T4 hazardous locations; and nonhazardous locations only.
  • Page 6 II 3G and is suitable for use in Zone 2 hazardous locations, in ambient temperatures of -40 °C ≤ Ta ≤ 70 °C. If you are using the NI 9213 in Gas Group IIC hazardous locations, you must use the device in an NI chassis that has been evaluated as Ex nC IIC T4, Ex IIC T4, Ex nA IIC T4, or Ex nL IIC T4 equipment.

  • Page 7: Electromagnetic Compatibility Guidelines

    This product is intended for use in industrial locations. However, harmful interference may occur in some installations, when the product is connected to a peripheral device or test object, or if the NI 9213 Getting Started Guide | © National Instruments | 7...

  • Page 8: Special Conditions For Marine Applications

    Some products are Lloyd’s Register (LR) Type Approved for marine (shipboard) applications. To verify Lloyd’s Register certification for a product, visit ni.com/certification and search for the LR certificate, or look for the Lloyd’s Register mark on the product. 8 | ni.com | NI 9213 Getting Started Guide...

  • Page 9: Preparing The Environment

    EMC performance is attained. Preparing the Environment Ensure that the environment in which you are using the NI 9213 meets the following specifications. Operating temperature -40 °C to 70 °C...
  • Page 10 Refer to the device datasheet on ni.com/manuals Note for complete specifications. 10 | ni.com | NI 9213 Getting Started Guide...
  • Page 11 TC1– TC2– TC2+ TC3– TC3+ TC4– TC4+ TC5– TC5+ TC6– TC6+ TC7+ TC7– TC8– TC8+ TC9+ TC9– TC10– TC10+ TC11– TC11+ TC12– TC12+ TC13– TC13+ TC14+ TC14– TC15– TC15+ NI 9213 Getting Started Guide | © National Instruments | 11...

  • Page 12: Thermocouple Connections

    Table 1. Signal Descriptions Signal Description Common reference connection No connection Positive thermocouple connection Negative thermocouple connection Thermocouple Connections Shield Thermocouple TC– NI 9213 reference 12 | ni.com | NI 9213 Getting Started Guide...

  • Page 13: Minimizing Thermal Gradients

    Minimize adjacent heat sources and air flow across the terminals. • Keep the ambient temperature as stable as possible. • Make sure the NI 9213 terminals are facing forward or upward. NI 9213 Getting Started Guide | © National Instruments | 13...

  • Page 14: Ni 9213 Connection Guidelines

    • Use the NI 9940 backshell kit. NI 9213 Connection Guidelines • Make sure that devices you connect to the NI 9213 are compatible with the module specifications. • You must use 2-wire ferrules to create a secure connection when connecting more than one wire to a single terminal on the NI 9213.

  • Page 15: High-Vibration Application Connections

    NI 9213. Overvoltage Protection The NI 9213 provides overvoltage protection between any two inputs. Refer to the device datasheet on ni.com/manuals Note for more information about overvoltage protection. NI 9213 Getting Started Guide | © National Instruments | 15...

  • Page 16: Where To Go Next

    NI 9213 Datasheet NI 9213 Datasheet NI-RIO Help NI-DAQmx Help LabVIEW FPGA Help LabVIEW Help RELATED INFORMATION C Series Documentation Services ni.com/services & Resources ni.com/info cseriesdoc Located at ni.com/manuals Installs with the software 16 | ni.com | NI 9213 Getting Started Guide...

  • Page 17: Worldwide Support And Services

    You can obtain the DoC for your product by visiting ni.com/certification. If your product supports calibration, you can obtain the calibration certificate for your product at ni.com/calibration. NI 9213 Getting Started Guide | © National Instruments | 17...
  • Page 18 U.S. Government Customers: The data contained in this manual was developed at private expense and is subject to the applicable limited rights and restricted data rights as set forth in FAR 52.227-14, DFAR 252.227-7014, and DFAR 252.227-7015. © 2017 National Instruments. All rights reserved. 378021A-01 Jan17...
