2-1-3 Developing section

The developing unit consists of the sleeve roller that forms the magnetic brush, the magnet roller, the develop-
ing blade and the developing screws that agitate the toner. Also, the toner sensor (TS) checks whether or not
toner remains in the developing unit.
1. Sleeve roller
2. Magnet roller
3. Developing screw A
4. Developing screw B
5. Developing blade
7
2
6
4
10

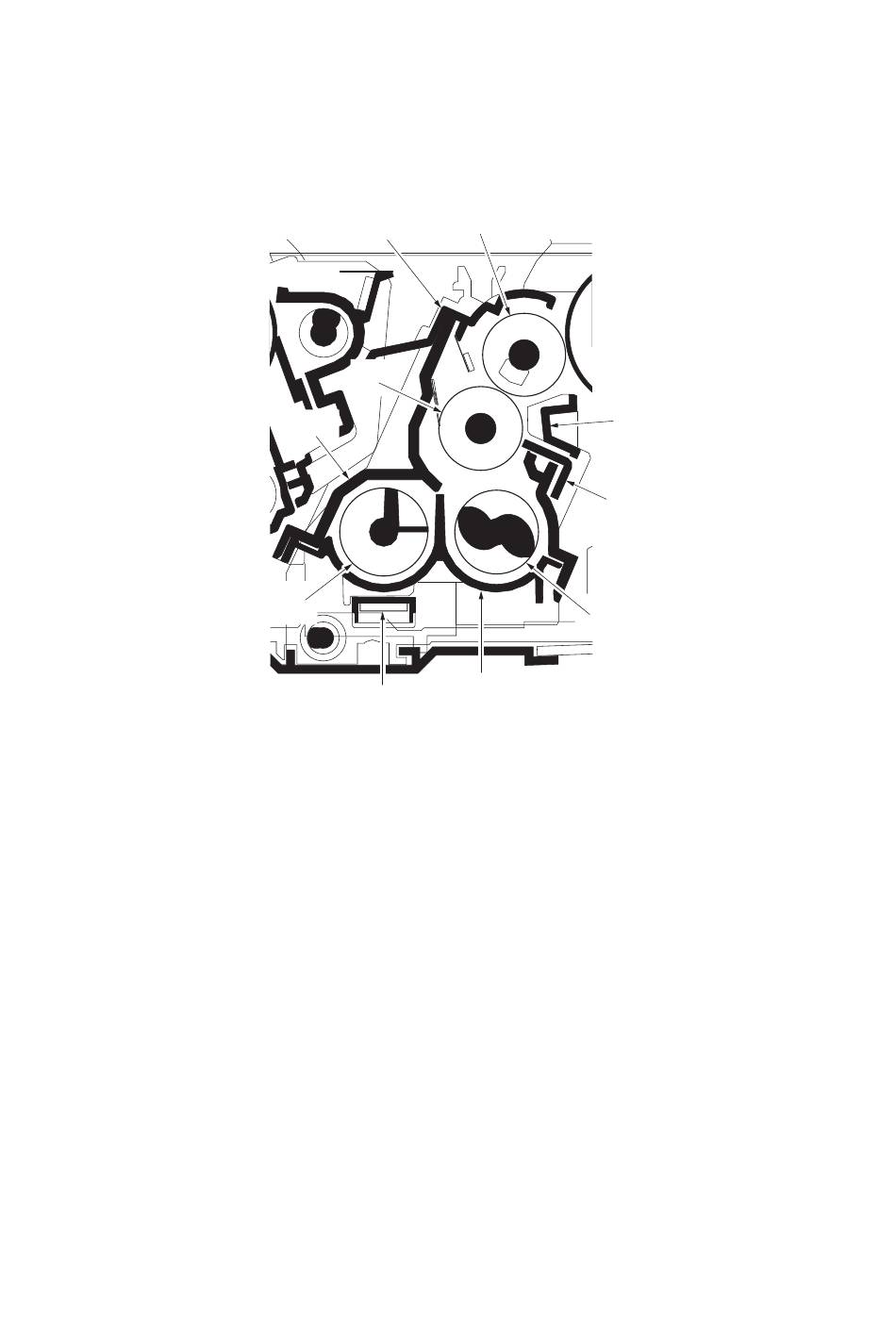

Figure 2-1-9 Developing section
2-1-9
1
9
5
3
8
6. Developer case
7. Upper developer cover
8. Developer base
9. Sleeve cover
10. Toner sensor (TS)
