Summary of Contents for Comelit People
- Page 1 People PL6731 F U L L U S E R M A N U A L Join us in taking care of our planet...
- Page 2 | Table of contents | Thank you for choosing Comelit! You have purchased a safe, durable and high quality product. Think before Help us to save the planet. you print Think of the planet before printing this document.
-
Page 3: Table Of Contents
| Table of contents | Table of contents 5'' People door entry monitor with video memo Using the front buttons - factory programming Using the side buttons Activating “Silent mode” Accessing and navigating menus Info bar Indicator LEDs User menu programming... -
Page 4: 5'' People Door Entry Monitor With Video Memo

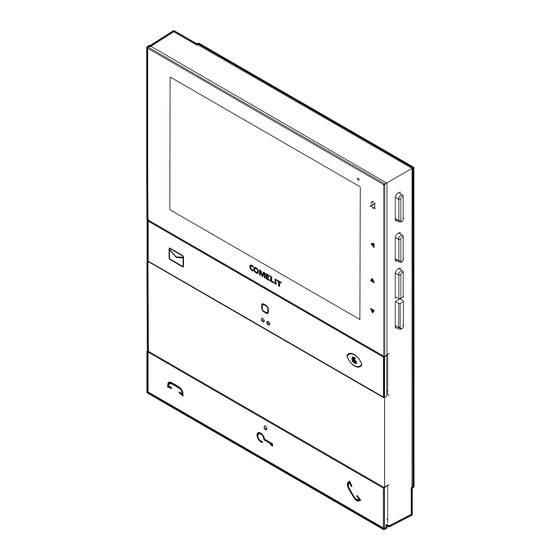

| Table of contents | 5'' People door entry monitor with video memo 1. Speaker. 2. 5’’ / 16:9 LCD screen. 3. Mechanical side buttons. 4. Mechanical front buttons, with touch guides for sight impaired users on the middle buttons of each row. -
Page 5: Using The Front Buttons - Factory Programming
| Table of contents | Using the front buttons - factory programming Video memo f Press the button to view the recorded video. View video memo This button is used to view saved recordings when a call from the external entrance panel is not answered. - Page 6 | Table of contents | Start communication (speech button) f Press the button to activate communication. Call received alerts On receipt of a call from the external entrance panel, the image from the external entrance panel camera appears on the door entry monitor (main), the call tone sounds and the LEDs flash.
-
Page 7: Using The Side Buttons
| Table of contents | Using the side buttons Button for activating “Silent mode” Confirm button Menu access and navigation button Buttons for scrolling menus and selecting values ACTIVATING “SILENT MODE” Silent mode can be used to exclude the ringtone on receipt of a call from the external entrance panel and from the switchboard. -
Page 8: Info Bar
| Table of contents | INFO BAR The info bar shows the date, time and functions authorised on the device: Time Date Authorised functions 13:05 14-08-23 13:05 14-08-23 Key to Functions M E M O VIDEO (authorised by default) S I L E NT M O D E (authorised by default) A U T O L O C K - R E LE AS E ON RECEIPT OF CALL AU T O M A T I C A N SW ER... -
Page 9: Indicator Leds
| Table of contents | Indicator LEDs Red LED Flashing: communication taking place. Flashing: incoming call/communication taking place. Flashing with door entry monitor in standby: “Door open” indication. White LED Lit steadily with door entry monitor in standby: “Auto lock-release on receipt of call”... -
Page 10: User Menu Programming
| Table of contents | User menu programming f Select this menu to exit the user menu and scan the QR E X I T code to access the online documentation. VIDEO MEMO function can be used to record 3 “freeze frames”... - Page 11 | Table of contents | 1. Select to adjust the display contrast. S E T T I N GS 2. Use the scrolling buttons and confirm to change the configuration. C O N T R A ST » The green dot indicates the selected setting. 1.
- Page 12 | Table of contents | √ The function must be authorised by the installer. This function makes it possible to receive calls from the external entrance panel to an interval of user codes other than your own (in addition to direct calls to your own user code). MODE f Select to configure the function activation and the...
-
Page 13: Programming Time Bands
| Table of contents | Programming time bands The Silent mode, Auto lock-release, Automatic answer and Call range functions can be activated/deactivated automatically using the time band programming feature. 1. Enter the user menu and select one of the following functions: S I L E N T M OD E A U T O L O C K- RE LEASE ON RECEIPT OF CALL A U T O M A T I C AN SWER... - Page 14 | Table of contents | Programming the days of the week 7. Use the scrolling buttons and confirm to select the days of the week on which you want to automatically activate the previously selected function. » The selected day is identified with a green dot »...
-
Page 15: Programming The Ringtone Upon Call From External Entrance Panel
| Table of contents | Programming the ringtone upon call from external entrance panel 1. Press one of the following buttons to access the user menu. 2. Press repeatedly until the SETTINGS menu appears. 3. Press the confirm button 4. Press repeatedly until the RINGTONE SETTINGS menu appears. -
Page 16: Warning
| Table of contents | Warning Intended use This Comelit product is designed and manufactured for use in the creation of audio and video communication systems in residential, commercial, industrial and public buildings. Installation All activities connected to the installation of Comelit products must be carried out by qualified technical personnel, with careful observation of the indications provided in the Manuals / Instruction sheets supplied with those products. - Page 17 C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w . c o m e l i t g r o u p . c o m 1st edition 01/2024 Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy code 2G40003141...
