People
PL6721
F U L L U S E R M A N U A L
Join us
in taking care
of our planet

Advertisement

loading

Related Manuals for Comelit People PL6721

Summary of Contents for Comelit People PL6721

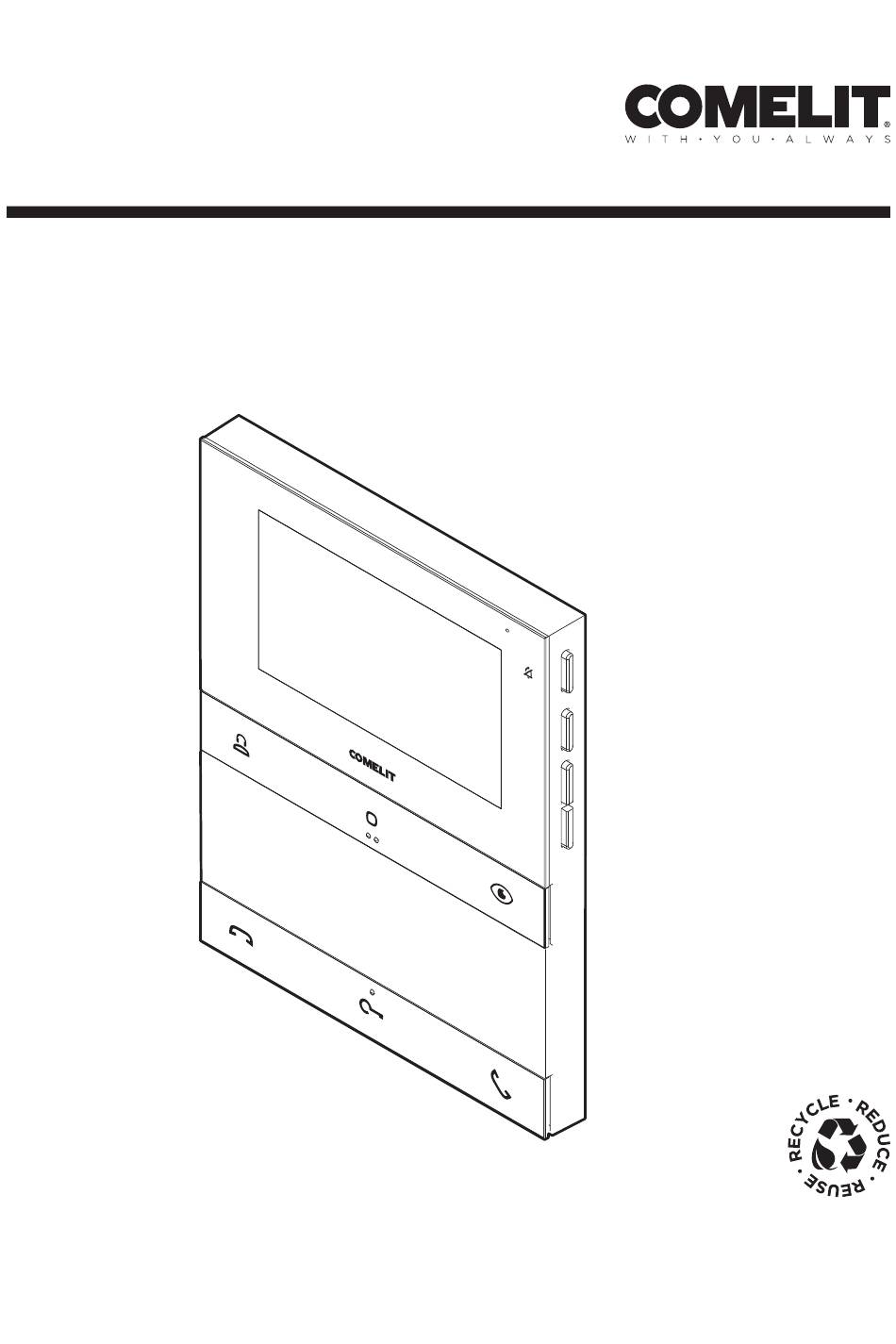

  • Page 1 People PL6721 F U L L U S E R M A N U A L Join us in taking care of our planet...
  • Page 2 Thank you for choosing Comelit! You have made a sustainable choice by purchasing a safe, durable and high quality product. Think before Help us to save the planet. you print Think of the planet before printing this document.

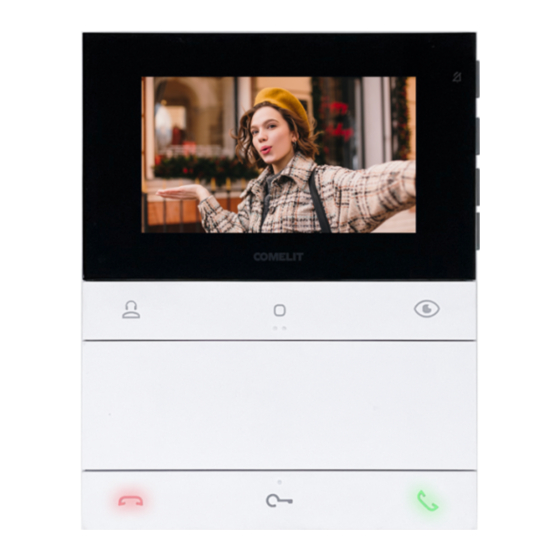

  • Page 3 People door entry monitor 1. Speaker. 2. 4.3’’ / 16:9 LCD screen. 3. Mechanical side buttons. 4. Mechanical front buttons, with touch guides for sight impaired users on the middle buttons of each row. 5. Microphone.
  • Page 4 Front buttons - factory programming Standard call to switchboard f Press the button to send a call to the porter switchboard. Generic actuator f Press the button to activate a generic actuator (art. 1256) or the relay for the external entrance panel.

  • Page 5: Side Buttons

    Side buttons Button for activating “Silent mode” Confirm button Menu access and navigation button Buttons for scrolling menus and selecting values ACTIVATING “SILENT MODE” Silent mode can be used to exclude the ringtone on receipt of a call from the outdoor entrance panel and from the switchboard.

  • Page 6: Indicator Led

    Indicator LED Red LED Flashing: communication taking place. Flashing: incoming call/communication taking place. Flashing with door entry monitor in standby: “Door open” indication. White LED Lit steadily with door entry monitor in standby: “Automatic lock-release on receipt of call” mode enabled. Flashing: incoming call.
  • Page 7 Example: selecting the ringtone upon call from external entrance panel 1. Press one of the buttons below to access the user menu. 2. Press repeatedly until the icon appears. 3. Press the confirm button. 5. Press the confirm button to 4.
  • Page 8 Warning Intended use This Comelit product is designed and manufactured for use in the creation of audio and video communication systems in residential, commercial, industrial and public buildings. Installation All activities connected to the installation of Comelit products must be carried out by qualified technical personnel, with careful observation of the indications provided in the Manuals / Instruction sheets supplied with those products.
  • Page 9 C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w . c o m e l i t g r o u p . c o m 1st edition 07/2023 Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy code 2G40003125...
