Top Bracket Installation

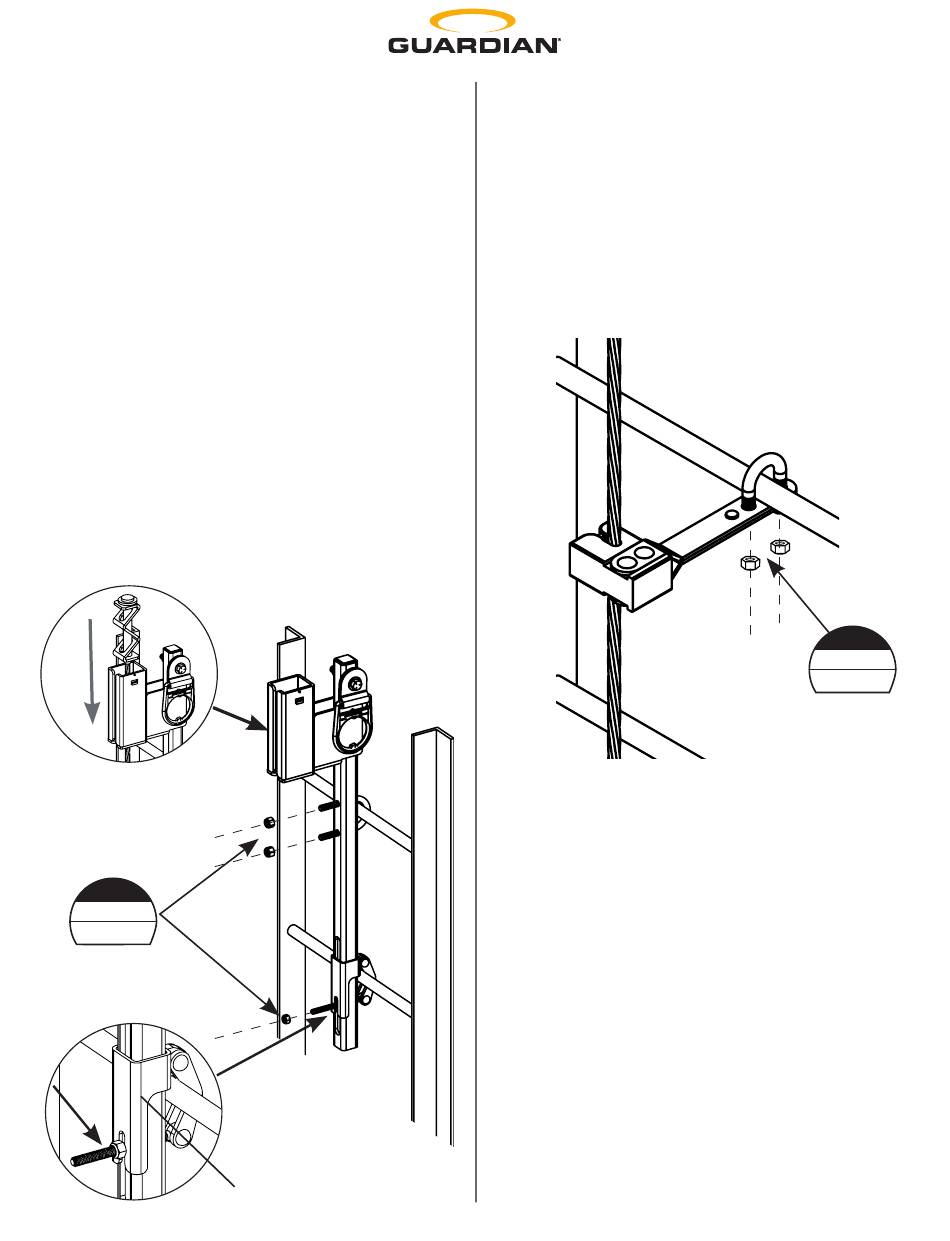

Step 1
Position Top Bracket in center of climbing side
of compatible ladder rung. Install U-bolt from
back side of ladder rung through holes in Top
Bracket post and install nuts loosely.
Step 2
Slide lower clamp sleeve onto Top Bracket post
with slot toward the bottom, hook clamp over
ladder rung and guide threaded rod through
Top Bracket post and install nut. Threaded
rod must remain within the slot on the lower
clamp sleeve (see image below).
Confirm final position of Top Bracket and
torque all nuts with 11/16" wrench or socket to
30-35 ft-lb (40-47 Nm).
Step 3
Seat cable firmly in Top Bracket receptacle.
T
30-35 ft-lb
(40-47 Nm)
Clamp Sleeve
Cable Guide Installation
Step 1
Position Cable Guide bracket in center of
ladder rung (bracket may be installed on top
of or underneath rung). Install U-bolt over rung
and through holes in bracket and install nuts.
Confirm final position of Cable Guide bracket
and torque all nuts with 9/16" wrench or socket
to 30-35 ft-lb (40-47 Nm).
Cable Guide Spacing
Note: Maximum space between cable guides
must be 20 ft (6 m) or less.
For 30, 50, 70, 90, 125, 175, 225, 275 ft (9, 15,
21,3, 27,4, 38, 53,3, 68,5, 84 m) systems, install
first Cable Guide 15 ft (4,5 m) from the Bottom
Bracket, then at 20 ft (6 m) intervals to Top
Bracket.
For 40, 60, 80, 100, 150, 200, 250, 300 ft (12, 18,
24,3, 30,4, 46, 61, 76, 91,4 m) systems, install all
Cable Guides at 20 ft (6 m) intervals.
9
T
30-35 ft-lb
(40-47 Nm)
