1600006-A
HALO
SELF-RETRACTING LIFELINE
Part #: 10910; 10912; 10915
Instruction Manual
Self-Retracting Lifeline
ANSI Z359.14-2021
Not suitable for leading edge use
Nunca deben usarse en aplicaciones
Do not throw instructions away.
Read and understand instructions before
using this equipment.
Class
1
Anchor at or
above dorsal
D-ring
HALO
|
OSHA 1926.502 & 1910.140
de borde expuesto
10
Manual de instrucciones
15
Manuel d'instructions
Español
Français
Advertisement
Table of Contents
Related Manuals for Guardian 10910

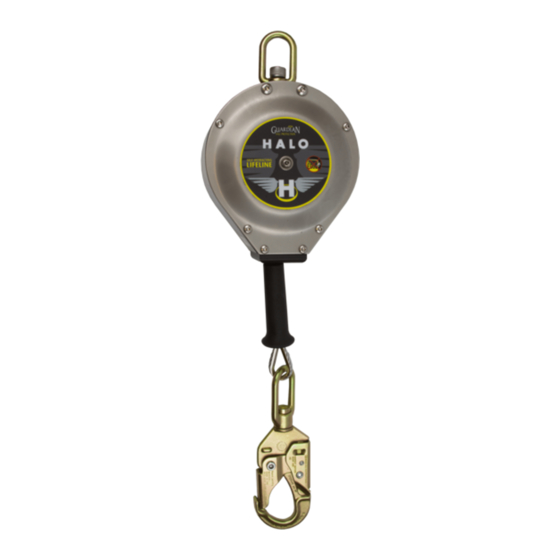

Summary of Contents for Guardian 10910
- Page 1 1600006-A HALO SELF-RETRACTING LIFELINE Part #: 10910; 10912; 10915 Instruction Manual Manual de instrucciones Español Manuel d’instructions Français Class Anchor at or above dorsal D-ring HALO Self-Retracting Lifeline ANSI Z359.14-2021 OSHA 1926.502 & 1910.140 Not suitable for leading edge use...
-
Page 2: Product Specific Applications
Product Specific Applications Worker Classifications Qualified Person: A person with an May be used to support a MAXIMUM 1 in a Personal Fall Arrest System (PFAS) accredited degree or certification, and for use in Fall Arrest applications. with extensive experience or sufficient Structure must withstand loads applied in the professional standing, who is considered directions permitted by the system of at least... -
Page 3: Maintenance, Cleaning, And Storage
Limitations Installation and Use Fall Clearance: There must be sufficient WARNING! Halo SRL must NEVER be used in Leading Edge (LE) applications. clearance below the work surface to arrest a fall before the user strikes the ground or an No free fall is allowed. -
Page 4: Specifications
13/64 in (5.3 mm) galvanized steel, aluminium, stainless steel, polyolefin, polyester. Part # Length Description 10910 20 ft (6,1 m) SRL, Halo, Class 1, Galvanized Steel Cable with Steel Snap Hook 10912 25 ft (7,6 m) SRL, Halo, Class 1, Galvanized Steel Cable with Steel Snap Hook... -
Page 5: Safety Information
Safety Information All risk of disengagement must be eliminated. All snap hooks and carabiners must be self-locking WARNING! Failure to understand and and self-closing, and must never be connected comply with safety regulations may result to each other. in serious injury or death. Regulations See Diagram A on page 7. - Page 6 USE This device is only for use by one person as INSP a fall arrester. Only make connections directly to sharp Part # 10910 dorsal attachment point on safety harness. Guard of de Serial # against swing-fall by keeping lifeline vertically...
- Page 7 Diagram A - Connections Diagram B - Fall Clearance CAUTION! Fall clearance calculation shown below is based on a standing worker falling directly in-line with anchor point. SAMPLE CALCULATION ONLY. Always refer to connector instructions for product- specific clearance information.
- Page 8 Inspection During inspection, consider all applications and hazards the SRL has been subjected to. Prior to EACH use, inspect SRL for deficiencies, Product lifetime is indefinite as long as it passes including, limited corrosion, pre-use and Competent Person inspections. deformation, pits, burrs, rough surfaces, sharp edges, cracking, rust, paint build-up, excessive This inspection log must be specific to one SRL.
-
Page 9: Inspection Log
Inspection Log Serial No: Date of first issue: Model #: User: Date: Results/Condition: Inspected by: Next Inspection Date:... - Page 10 HALO El peso máximo del usuario (incluyendo toda la ropa, herramientas y equipo) es de: Números de piezas: 10910; 10912; 10915 ANSI: 130 - 310 lb (59–141 kg) Manual de OSHA: 100 – 420 lb (45–191 kg) instrucciones Clasificación de trabajadores...
-
Page 11: Mantenimiento, Limpieza Y Almacenamiento
Español Todas las compuertas de conexión deben cerrarse ADVERTENCIA: Evite las caídas con y bloquearse de forma automática y soportar una oscilación siempre que sea posible. Las carga mínima de 3,600 lb (16 kN). caídas con oscilación aumentan el riesgo de golpear objetos o el suelo en caso de caída. -
Page 12: Especificaciones
Número Longitud Descripción de pieza SRL, Halo, Clase 1, Cable de acero galvanizado con mosquetón de acero 10910 20 ft (6.1 m) SRL, Halo, Clase 1, Cable de acero galvanizado con mosquetón de acero 10912 25 ft (7.6 m) SRL, Halo, Clase 1, Cable de acero galvanizado con mosquetón de acero 10915 30 ft (9.1 m) - Page 13 HALO a sí mismos o proporcionar un medio alternativo para su rápido rescate. Guarde el equipo de rescate en una Número de pieza 10910 zona de fácil acceso y con señalización clara. Número de serie Fecha de fabricación La persona capacitada impartirá...
- Page 14 Español Una banda roja visible en el cuerpo del gancho de equipo de protección individual contra caídas en todas seguridad indica que la línea de vida autorretráctil se las aplicaciones. Solo para usuarios con formación. ha visto expuesta a fuerzas excesivas y debe retirarse. Máximo un usuario.
-
Page 15: Manuel D'instructions
AUTORÉTRACTABLE de produits HALO Le poids maximum de l'utilisateur (incluant tous les vêtements, les outils et l'équipement) N° des pièces: 10910; 10912; 10915 est de : ANSI : 130 - 310 lb (59 - 141 kg) Manuel d'instructions OSHA : 100 - 420 lb (45 - 191 kg) Ne jetez pas ces instructions. -
Page 16: Installation Et Utilisation
Français Toutes les barrières du connecteur doivent être AVERTISSEMENT! Éliminez la chute libre à fermeture automatique, à verrouillage automatique en balancement dans la mesure du possible! et résister à une charge minimale de 3,600 lb (16 kN). Les chutes libres en balancement augmentent la probabilité... -
Page 17: Spécifications
N° de pièce Longueur Description SRL, Halo, classe 1, câble en acier galvanisé avec mousqueton en acier 10910 20 ft (6.1 m) SRL, Halo, classe 1, câble en acier galvanisé avec mousqueton en acier 10912 25 ft (7.6 m) SRL, Halo, classe 1, câble en acier galvanisé... - Page 18 Rangez les équipements de secours dans un endroit HALO facilement accessible et clairement indiqué. La formation des personnes autorisées à monter, N° de pièce 10910 N° de série démonter, inspecter, entretenir, stocker et utiliser Date de fabrication correctement l'équipement doit être assurée par N°...
- Page 19 Français la ligne de vie autorétractable du service si vous UTILISATION La chute libre n'est pas autorisée. trouvez des défauts ou des dommages, ou si vous La ligne de vie autorétractable doit toujours être êtes exposé à des forces d'arrêt de chute. positionnée au niveau ou au-dessus de l'anneau ...
- Page 20 This warranty is not transferable to any other Guardian service and does not apply to product that is resold after having been put into service. No other person, firm, entity, or the like is authorized to assume or assign for Guardian any other liability in connection with the sale or use of Guardian’s products.
